CRANKCASE (MODEL L/M)
RM125 1990 (L) USA (E03)

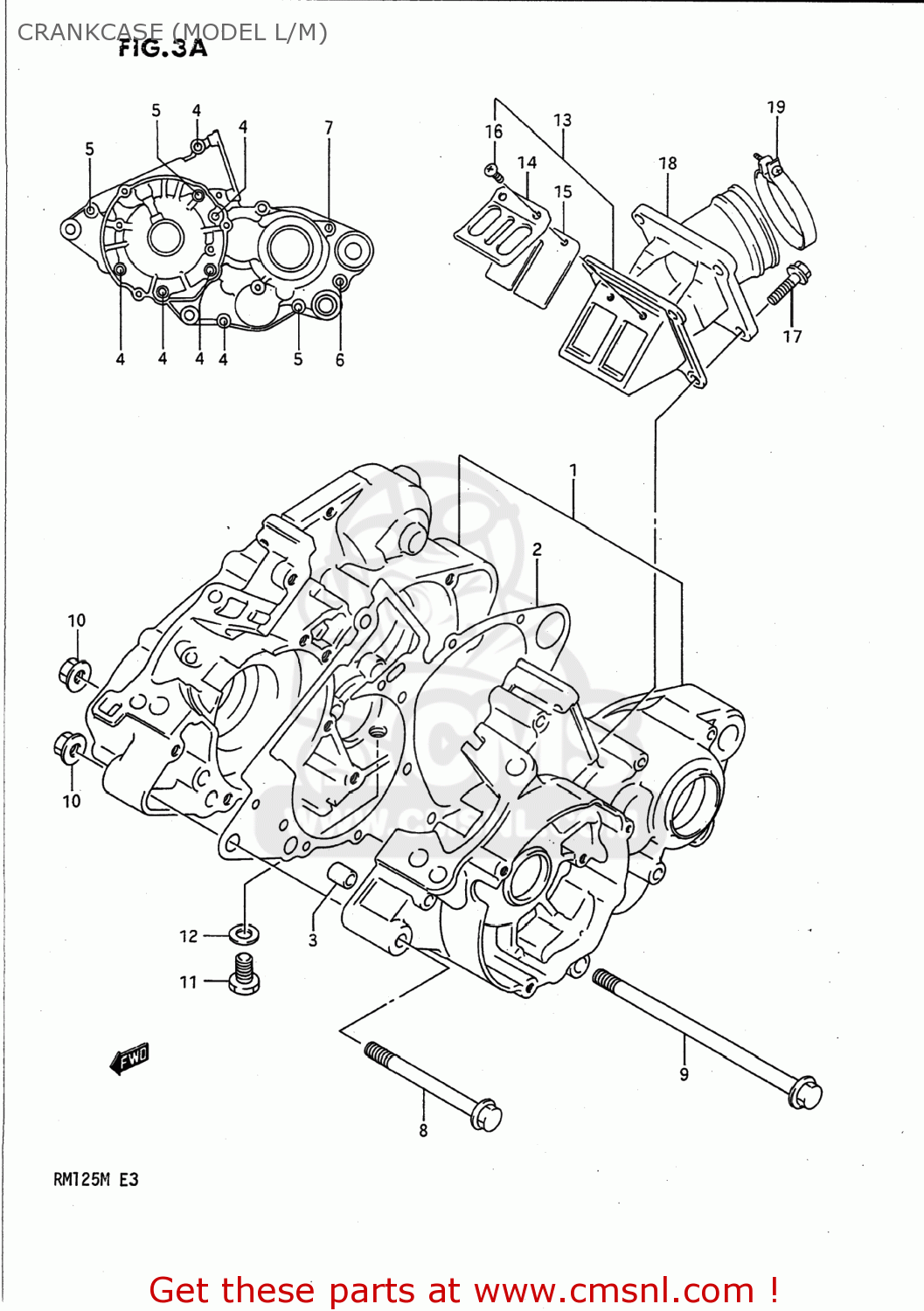

Crankcase (model l/m) diagram RM125 1990 (L) USA (E03)
CRANKCASE (MODEL L/M) RM125 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130027880
ref: 1
11300-27881
CRANKCASE SET
€ 504.00
2
1148127C01
ref: 2
GASKET,CRANKCASE (NAS)
€ 12.50
3
0421109129
ref: 3
PIN
€ 2.00
4
0154706457
ref: 4
BOLT
€ 2.50
5
0154706557
ref: 5
BOLT
€ 2.50
6
0154706607
ref: 6
BOLT
€ 2.50
7
0154706657
ref: 7
BOLT
€ 2.00
8
0910308010
ref: 8
BOLT(8X88)
€ 55.50
9-1
0910308271
ref: 9-1
09103-08298
BOLT
€ 8.00
9-2
0910308298
ref: 9-2
BOLT(8X145)
€ 8.00
10
0915908067
ref: 10
NUT
€ 5.50
11
0110708167
ref: 11
01500-0816B
BOLT,8X16
€ 2.00
12
0916808008
ref: 12
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
13
1315027C10
ref: 13
13150-36E00
VALVE ASSEMBLY,REED
€ 77.50
14
1315227C10
ref: 14
13152-43D00
STOPPER,REED VALVE
€ 6.00
15
1315327C10
ref: 15
13153-43D00
VALVE,REED
€ 30.50
16
0211233088
ref: 16
02112-3308A
SCREW
€ 2.00
17
0154706207
ref: 17
BOLT
€ 2.50
18
1311027C10
ref: 18
PIPE,INTAKE
€ 67.50
19
0940250306
ref: 19
CLAMP
€ 6.00
