EXHAUST VALVE
RM125 1990 (L) USA (E03)

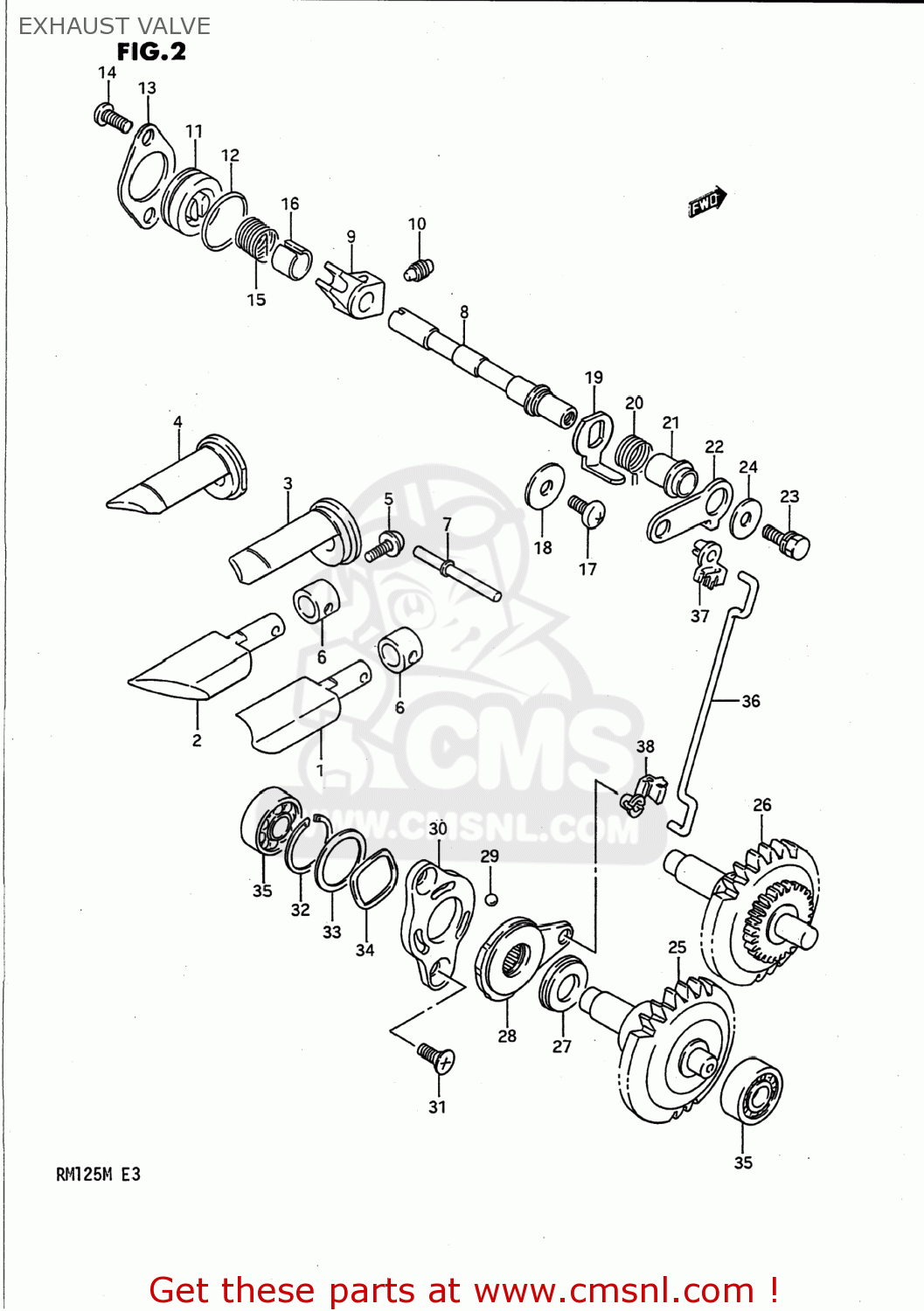

Exhaust valve diagram RM125 1990 (L) USA (E03)
EXHAUST VALVE RM125 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1125427C01
ref: 1-1
11254-27C10
VALVE,EXHAUST
€ 149.00
1-2
1125427C20
ref: 1-2
VALVE,EXHAUST,R
€ 135.00
1-3
1125427C30
ref: 1-3
VALVE,EXHAUST,R
€ 136.00
2-1
1125527C01
ref: 2-1
11255-27C10
VALVE,EXHAUST
€ 153.00
2-2
1125527C20
ref: 2-2
VALVE,EXHAUST,L
€ 144.50
2-3
1125527C30
ref: 2-3
VALVE,EXHAUST,L
€ 132.50
3-1
1126127C00
ref: 3-1
GUIDE,EXHAUST VALVE,RIGHT
€ 144.50
3-2
1126127C20
ref: 3-2
GUIDE,EXHAUST VALVE,R
€ 128.50
3-3
1126127C30
ref: 3-3
GUIDE,EXHAUST VALVE,R
€ 124.50
4-1
1126227C00
ref: 4-1
GUIDE,EXHAUST VALVE,LEFT
€ 132.50
4-2
1126227C20
ref: 4-2
GUIDE,EXHAUST VALVE,L
€ 145.00
4-3
1126227C30
ref: 4-3
GUIDE,EXHAUST VALVE,L
€ 137.50
5-1
0211215128
ref: 5-1
02142-05127
SCREW
€ 1.50
5-2
0211215128
ref: 5-2
02142-05127
SCREW
€ 1.50
6
1126300B20
ref: 6
11263-01B30
HOLDER,EXHAUST VALVE
€ 14.00
7
1125301B31
ref: 7
11253-01B32
PIN,EXHAUST VALVE 48.5MM
€ 20.50
8-1
1125901B31
ref: 8-1
SHAFT,EXHAUST VALVE
€ 55.50
8-2
1125927C30
ref: 8-2
SHAFT,EXHAUST VALVE
€ 60.00
9
1126400B23
ref: 9
11264-00B24
ARM,EXHAUST VALVE SHAFT
€ 17.00
10
0913406011
ref: 10
09134-06013
SCREW
€ 4.50
11
1125827C00
ref: 11
11258-27C01
CAP,EXHAUST VALVE
€ 52.00
12
0928023002
ref: 12
O RING(D:1.9,ID:22.6)
€ 2.50
13
1126500B21
ref: 13
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
14
0211205128
ref: 14
02112-05127
SCREW
€ 2.50
15
0944416003
ref: 15
09444-16006
SPRING
€ 7.50
16
1126900B20
ref: 16
SPACER,EXHAUST VALVE SPRING
€ 19.00
17-1
0211206087
ref: 17-1
SCREW
€ 2.00
17-2
0154706107
ref: 17-2
BOLT
€ 1.50
18
0821206201
ref: 18
WASHER
€ 1.50
19
1126700B20
ref: 19
11267-00B21
LEVER,EXHAUST VALVE NO
€ 5.50
20
0944415008
ref: 20
SPRING
€ 6.00
21
1126801B00
ref: 21
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
22-1
1126600B20
ref: 22-1
11266-00B21
LEVER,EXHAUST VALVE NO
€ 3.50
22-2
1126600B21
ref: 22-2
LEVER,EXHAUST VALVE NO.1
€ 3.50
23
0113405126
ref: 23
01570-05123
BOLT
€ 2.00
24
0916005017
ref: 24
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
25
1267027C00
ref: 25
GOVERNOR ASSEMBLY,EXHAUST
€ 87.00
26
1267027C10
ref: 26
GOVERNOR ASSY,EXHAUST VALVE
€ 86.00
27
0926310002
ref: 27
BEARING(10X22X2.8)
€ 8.50
28
1268001820
ref: 28
ACTUATOR,EXHAUST VALVE
€ 47.50
29
0611106003
ref: 29
BALL
€ 1.50
30
1268201B02
ref: 30
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
31
0912005003
ref: 31
SCREW(5X10)
€ 2.00
32
0938019003
ref: 32
CIRCLIP
€ 2.50
33
0918119004
ref: 33
SHIM(19.1X25X0.3)
€ 4.00
34
0916419001
ref: 34
WASHER
€ 7.00
35
0926208005
ref: 35
BEARING(8X22X7)
€ 12.50
36
1268527C00
ref: 36
ROD,EXHAUST VALVE
€ 7.50
37
1268601B00
ref: 37
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
38
1268701B00
ref: 38
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
