FRONT DAMPER (MODEL K)
RM125 1990 (L) USA (E03)

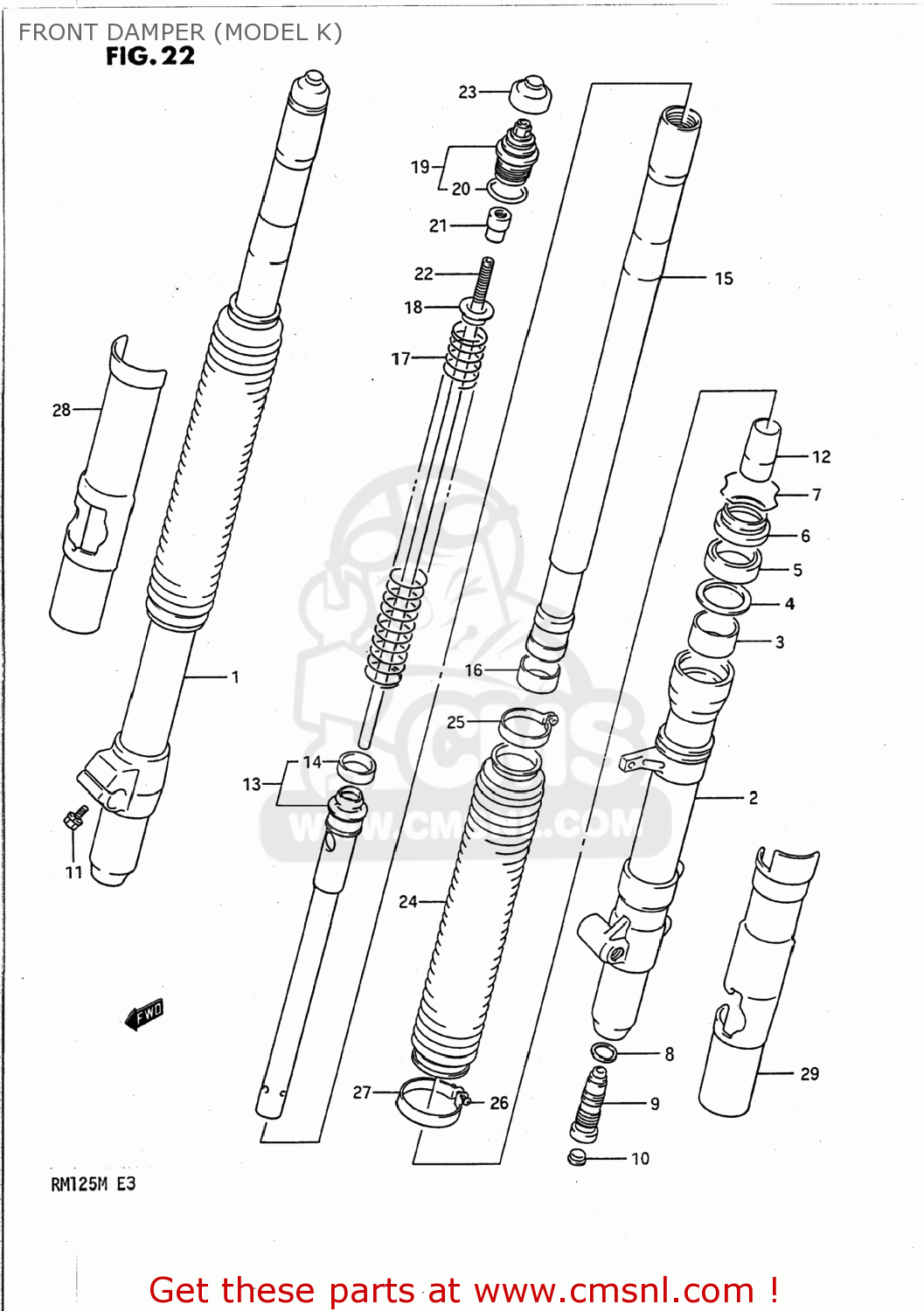

Front damper (model k) diagram RM125 1990 (L) USA (E03)
FRONT DAMPER (MODEL K) RM125 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110327C11
ref:
DAMPER ASSEMBLY,RIGHT
€ 723.00
5110427C11
ref:
DAMPER ASSEMBLY,LEFT
€ 723.00
1
5113027C01
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114027C01
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116727C00
ref: 3
51167-37F00
METAL,SLIDE
€ 16.00
4
5115827C00
ref: 4
WASHER
€ 4.00
5
5115327C00
ref: 5
51150-27820
OIL SEAL,FRONT FORK
€ 21.00
6
5117327C00
ref: 6
51150-27820
DUST SEAL,FRONT FORK
€ 21.00
7
5115627C00
ref: 7
RING,STOPPER
€ 3.00
8
5114801B40
ref: 8
GASKET (NAS)
€ 4.00
9
5117027C00
ref: 9
51170-26C10
BOLT,CENTER
€ 136.00
10
5118914500
ref: 10
CAP,FRONT FORK DF
€ 5.00
11
0114708308
ref: 11
01570-08307
BOLT,RH
€ 3.50
12
5119527C00
ref: 12
PIECE,OIL LOCK
€ 30.50
13
5114627C00
ref: 13
CYLINDER
€ 0.00
14
5119627C00
ref: 14
RING,SLIDE
€ 7.00
15
5111027C01
ref: 15
TUBE,INNER
€ 369.50
16
5112127C00
ref: 16
51121-37F00
PISTON
€ 21.50
17
5117127C00
ref: 17
SPRING
€ 93.50
18
5117227C00
ref: 18
GUIDE,SPRING
€ 0.00
19
5135127C00
ref: 19
CAP
€ 142.50
20
5111727C00
ref: 20
O RING
€ 3.00
21
5112927C00
ref: 21
NUT,PISTON ROD
€ 19.50
22
5112827C00
ref: 22
ROD,PISTON
€ 252.00
23
5118801B20
ref: 23
CAP
€ 7.50
24
5157127C0025Y
ref: 24
BOOT
€ 44.50
25
5157527C00
ref: 25
BAND,BOOT,UPPER
€ 4.50
26
5157701B20
ref: 26
SCREW,BAND BOOT(3.5X10)
€ 2.50
27
5157627C00
ref: 27
BAND,BOOT,LOWER
€ 5.50
28
5120114500163
ref: 28
PROTECTOR,RIGHT
€ 0.00
29
5120214501163
ref: 29
PROTECTOR,LEFT
€ 25.50
29
5120214501163
ref: 29
PROTECTOR,LEFT
€ 25.50
29
5120214501163
ref: 29
PROTECTOR,LEFT
€ 25.50
