CARBURETOR

RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

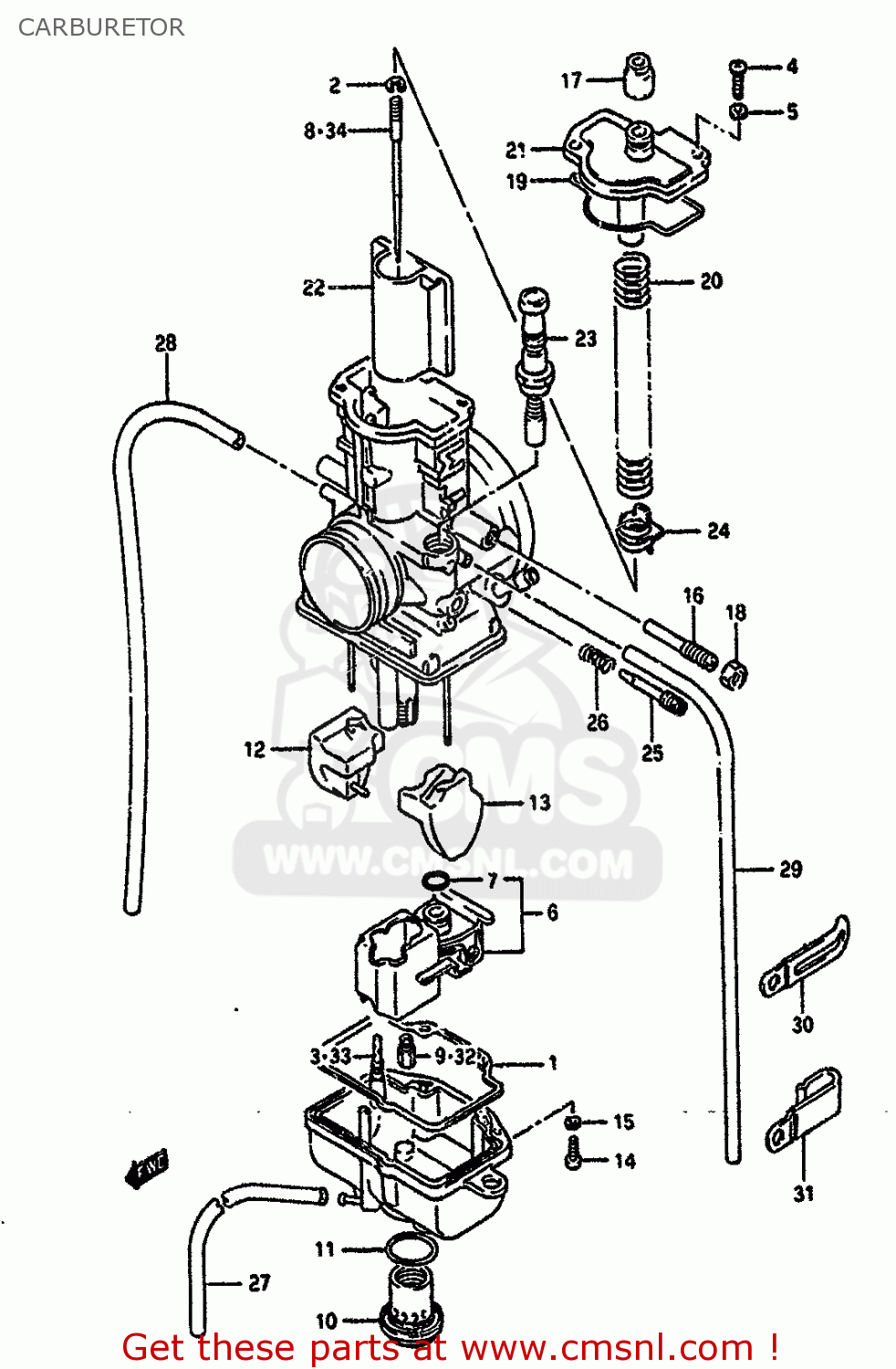

Carburetor diagram RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CARBURETOR RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CARBURETOR RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CARBURETOR RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
1320027C00
ref: 0
MODEL K
CARBURETOR ASSEMBLY
€ 482.50
0
1320027C10
ref: 0
MODEL L
CARBURETOR ASSEMBLY
€ 482.50
0
1320027C30
ref: 0
MODEL M
CARBURETOR ASSEMBLY
€ 482.50
1
1369626C00
ref: 1
O RING,FLOAT CHAMBER
1369626C00
€ 12.50
2
1339431210
ref: 2
CLIP,NEEDLE
1339431210
€ 3.50
3
0949255013
ref: 3
JET,PILOT(55)
0949255013
€ 11.50
4
0211204126
ref: 4
SCREW
€ 1.50
5
0832121046
ref: 5
LOCK WASHER
0832121046
€ 2.00
6
1337027C00
ref: 6
VALVE ASSY,NEEDLE
€ 37.50
7
1337444080
ref: 7
O-RING,NEEDLE VALVE
1337444080
€ 6.00
8-1
1338327C00
ref: 8-1
MODEL K
NEEDLE,JET(6AEJ02-65)
€ 13.50
8-2
1338327C10
ref: 8-2
MODEL L
NEEDLE JET (6AEJ02-64)
1338327C10
€ 13.00
8-3
1338327C00
ref: 8-3
MODEL M
NEEDLE,JET(6AEJ02-65)
€ 13.50
9
0949166002
ref: 9
JET,MAIN(330)
0949166002
€ 10.50
10
1324727C00
ref: 10
CAP,DRAIN
1324727C00
€ 15.00
11
1338927C00
ref: 11
O RING
1338927C00
€ 6.50
12
1325201B20
ref: 12
FLOAT,R
1325201B20
€ 22.50
13
1325201B21
ref: 13
FLOAT,L
1325201B21
€ 21.50
14
0211203086
ref: 14
SCREW
€ 1.50
15
0832121036
ref: 15
LOCK WASHER
0832121036
€ 1.50
16
1327926C00
ref: 16
ADJUSTER
1327926C00
€ 10.00
17
1368104010
ref: 17
CAP
1368104010
€ 3.00
18
1360747070
ref: 18
NUT
1360747070
€ 4.00
19
1325126C00
ref: 19
O RING,TOP CAP
1325126C00
€ 9.50
20
1357326C00
ref: 20
SPRING
1357326C00
€ 6.50
21
1326101B30
ref: 21
CAP,TOP
1326101B30
€ 14.00
22
1355127C00
ref: 22
VALVE,PISTON
1355127C00
€ 105.00
23
1341126C00
ref: 23
PLUNGER ASSY
1341126C00
€ 41.00
24
1342426C00
ref: 24
RING
1342426C00
€ 7.50
25-1
1326709400
ref: 25-1
MODEL K
SCREW,AIR
1326709400
€ 5.00
25-2
1326709400
ref: 25-2
MODEL L/M
SCREW,AIR
1326709400
€ 5.00
26
1326835010
ref: 26
SPRING
1326835010
€ 3.00
27
0935130503600
ref: 27
L:600 370
HOSE(3X5X600)
0935130503600
€ 6.50
28
0935135653600
ref: 28
L:600 440
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
29
0935135653600
ref: 29
L:600 400
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
30
0940406402
ref: 30
CLAMP
€ 2.50
31
0940306307
ref: 31
CLAMP
0940306307
€ 4.50
32-1
0949158002
ref: 32-1
OPT
JET,MAIN(290)
0949158002
€ 7.50
32-2
0949160007
ref: 32-2
OPT
JET,MAIN(300)
0949160007
€ 9.50
32-3
0949162005
ref: 32-3
OPT
JET,MAIN(310)
0949162005
€ 10.50
32-4
0949164002
ref: 32-4
OPT
JET,MAIN(320)
0949164002
€ 8.50
32-5
0949168002
ref: 32-5
OPT
JET,MAIN(340)
0949168002
€ 8.50
32-6
0949170011
ref: 32-6
OPT
JET,MAIN(350)
0949170011
€ 8.50
32-7
0949172011
ref: 32-7
OPT
JET,MAIN(360)
0949172011
€ 8.50
32-8
0949174003
ref: 32-8
OPT
JET,MAIN(370)
0949174003
€ 8.50
32-9
0949176003
ref: 32-9
OPT
JET,MAIN(380)
0949176003
€ 8.50
33-1
0949245026
ref: 33-1
OPT
JET,PILOT(45)
0949245026
€ 14.00
33-2
0949250018
ref: 33-2
OPT
JET,PILOT(50)
0949250018
€ 17.50
33-3
0949260013
ref: 33-3
OPT
JET,PILOT (60)
0949260013
€ 10.50
33-4
0949265007
ref: 33-4
OPT
JET,PILOT (65)
0949265007
€ 9.00
34-1
1338327C40
ref: 34-1
OPT
NEEDLE JET (6AEJ02-62)
1338327C40
€ 8.50
34-2
1338327C30
ref: 34-2
OPT
NEEDLE,JET(6AEJ02-63)
1338327C30
€ 14.50
34-3
1338327C10
ref: 34-3
OPT
NEEDLE JET (6AEJ02-64)
1338327C10
€ 13.00
34-4
1338327C00
ref: 34-4
OPT
NEEDLE,JET(6AEJ02-65)
€ 13.50
34-5
1338327C20
ref: 34-5
OPT
NEEDLE JET (6AEJ02-66)
1338327C20
€ 8.50
