ELECTRICAL

RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

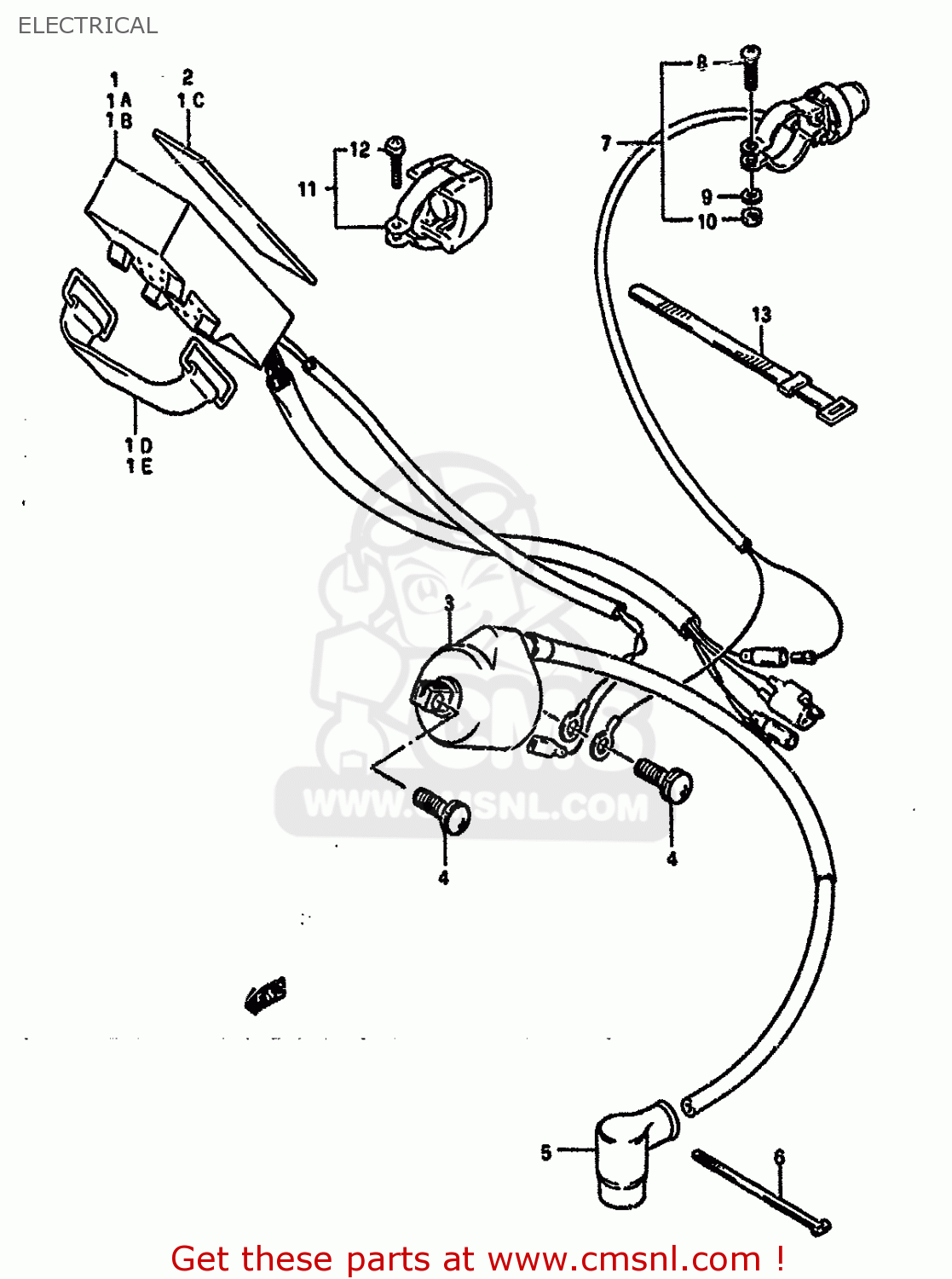

Electrical diagram RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

3290027C00
ref: 1
MODEL K

CDI UNIT

€ 512.00

3290027C10
ref: 1A
MODEL L

CDI UNIT

€ 461.50

3290027C11
ref: 1B
MODEL M

CDI UNIT

€ 461.50

3365137000
ref: 1C
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

0946200001A
ref: 1D
MODEL L

BAND

€ 8.00

3294214111
ref: 1E
MODEL M

BAND(L:65)

€ 8.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3-1

3341026C01
ref: 3-1
MODEL K/L

COIL ASSEMBLY,IGNITION

€ 123.00

3-2

3341027C00
ref: 3-2
MODEL M

COIL ASSEMBLY,IGNITION

€ 123.00

0211236206
ref: 4

SCREW

€ 2.00

3351041111
ref: 5

CAP,SPARK PLUG

€ 23.00

0940709402
ref: 6

CLAMP

€ 3.00

3782000B00
ref: 7
MODEL K

SWITCH ASSEMBLY

€ 24.50

0211204167
ref: 8

SCREW

€ 1.00

0832121047
ref: 9

WASHER,LOCK 4M

€ 2.00

0831011047
ref: 10

NUT

€ 2.00

3782027C00
ref: 11
MODEL L/M

SWITCH ASSEMBLY

€ 24.50

0211233165
ref: 12

SCREW

€ 1.50

0940712402
ref: 13

CLAMP(L:120)

€ 3.00

ELECTRICAL

all assemblies
