REAR BRAKE

RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

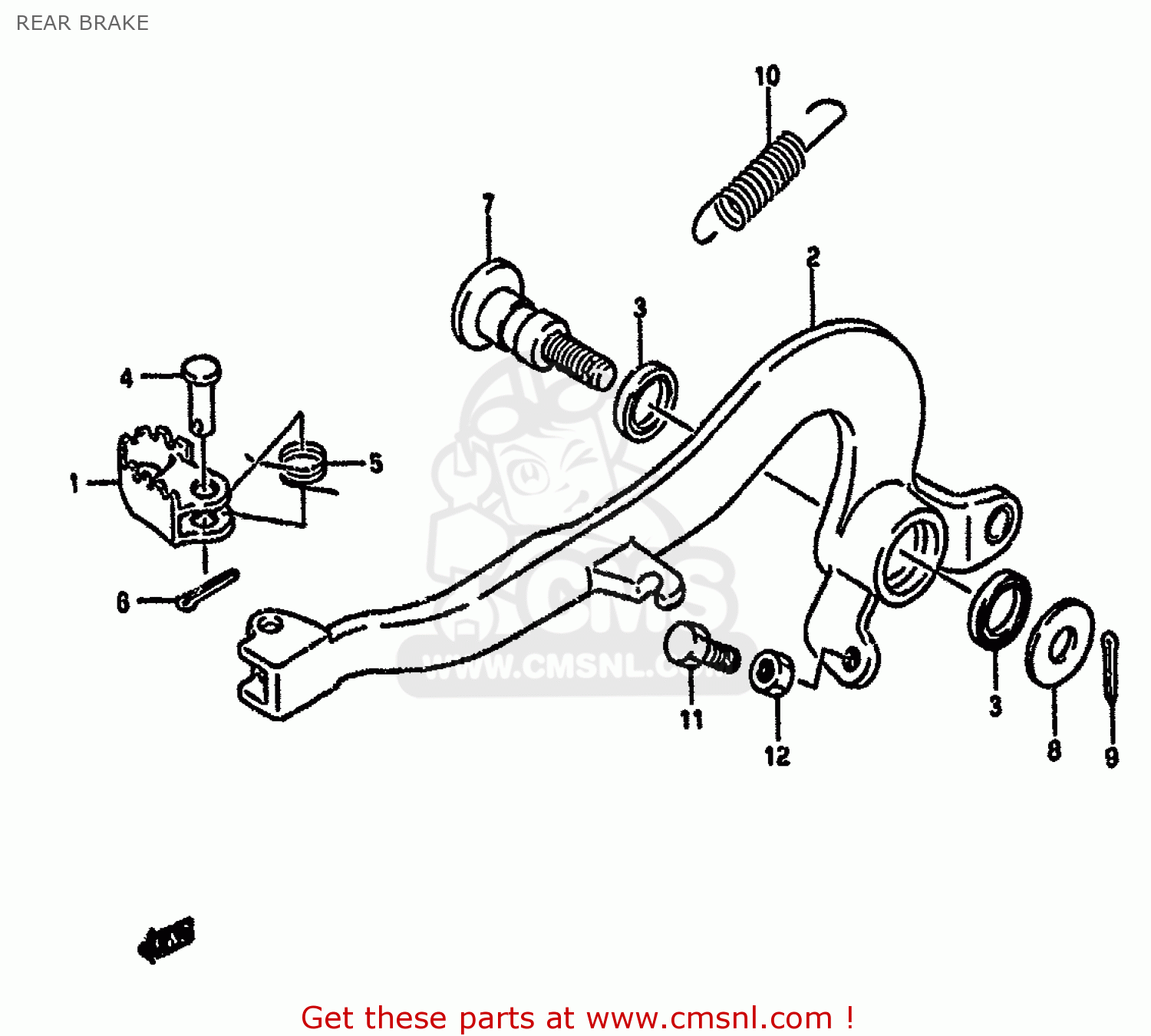

Rear brake diagram RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

4311027C00
ref: 1

PEDAL,BRAKE

€ 15.00

2-1

4312027C00
ref: 2-1
MODEL K

ARM COMP,BRAKE PEDAL

€ 88.50

2-2

4312027C10
ref: 2-2
MODEL L

ARM,BRAKE PEDAL

€ 89.50

2-3

4312027C20
ref: 2-3
MODEL M

ARM COMP,BRAKE PEDAL

€ 89.50

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

0944411005
ref: 5

SPRING

€ 3.00

0411120158
ref: 6

PIN

€ 1.50

7-1

4314201B30
ref: 7-1
MODEL K

SHAFT,BRAKE PEDAL

€ 15.00

7-2

4314227C00
ref: 7-2
MODEL L/M

SHAFT,BRAKE PEDAL

€ 15.00

0821110261
ref: 8

WASHER

€ 2.50

0411120208
ref: 9

PIN 20X20

€ 1.50

10-1

0944311025
ref: 10-1
MODEL K

SPRING

€ 6.50

10-2

0944311023
ref: 10-2
MODEL L/M

SPRING

€ 3.00

0910006009
ref: 11

BOLT(6X23)

€ 1.50

0831011068
ref: 12

NUT

€ 2.50
