TRANSMISSION

RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

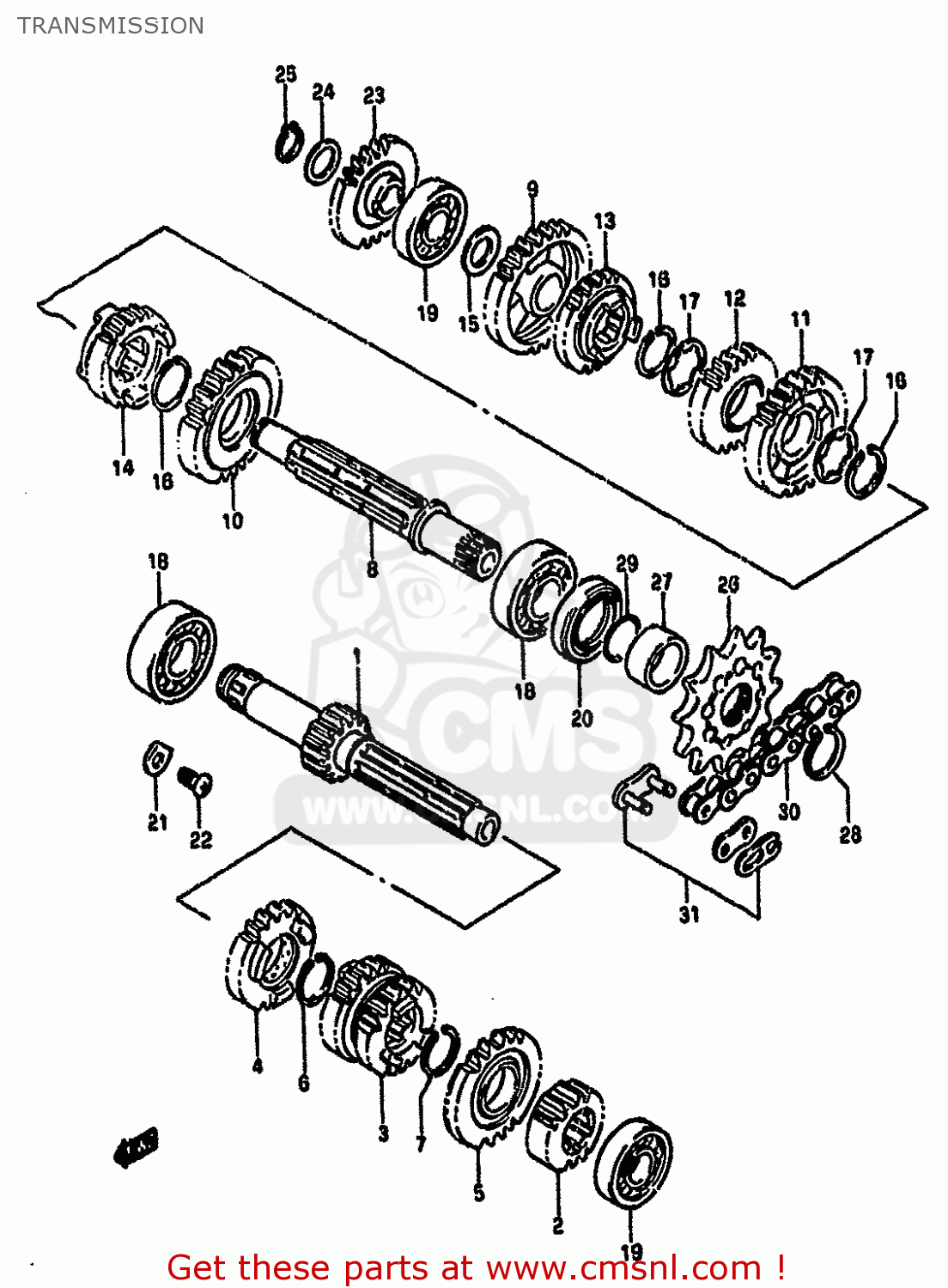

Transmission diagram RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

TRANSMISSION RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
TRANSMISSION RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
TRANSMISSION RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2412101B41
ref: 1
SHAFT,COUNTER
€ 173.00
2
2422127C10
ref: 2
24221-01B41
GEAR,SECOND DRIVE (NT:16)
2422127C10
€ 60.00
3
2423127C10
ref: 3
24231-01B41
GEAR,THIRD & FOURTH DRIVE,N
2423127C10
€ 83.50
4
2425001B00
ref: 4
GEAR,FIFTH DRIVE (NT:19)
2425001B00
€ 56.50
5
2426101B40
ref: 5
GEAR,SIXTH DRIVE (NT:20)
€ 81.50
6
0938020007
ref: 6
CIRCLIP
0938020007
€ 3.00
7
0938020012
ref: 7
CIRCLIP
0938020012
€ 2.50
8
2413114510
ref: 8
SHAFT,DRIVE
2413114510
€ 110.00
9
2431101B41
ref: 9
GEAR,1ST DRIVEN
2431101B41
€ 72.00
10
2432101B42
ref: 10
GEAR,SECOND DRIVEN (NT:28)
2432101B42
€ 148.00
11-1
2433127C10
ref: 11-1
MODEL K/L, 24331-01B
GEAR,THIRD DRIVEN (NT:23)
2433127C10
€ 65.50
11-2
2433127C30
ref: 11-2
MODEL M
GEAR,THIRD DRIVEN (NT:23)
2433127C30
€ 65.50
12-1
2434127C10
ref: 12-1
MODEL K/L, 24341-01B
GEAR,FOURTH DRIVEN (NT:24)
2434127C10
€ 41.50
12-2
2434127C30
ref: 12-2
MODEL M
GEAR,FOURTH DRIVEN (NT:24)
2434127C30
€ 72.00
13-1
2435127C10
ref: 13-1
MODEL K/L, 24351-01B
GEAR,FIFTH DRIVEN (NT:20)
2435127C10
€ 67.50
13-2
2435127C30
ref: 13-2
MODEL M
GEAR,FIFTH DRIVEN (NT:20)
2435127C30
€ 67.50
14-1
2436101B05
ref: 14-1
MODEL K/L
GEAR,SIXTH DRIVEN (NT:19)
€ 37.00
14-2
2436127C30
ref: 14-2
MODEL M
GEAR,SIXTH DRIVEN (NT:19)
2436127C30
€ 63.00
15
0821115261
ref: 15
WASHER,THRUST
0821115261
€ 2.50
16
0938022006
ref: 16
CIRCLIP
0938022006
€ 3.00
17
0916722011
ref: 17
WASHER,LOCK
0916722011
€ 3.00
18
0926220062
ref: 18
BEARING
0926220062
€ 28.00
19
0811362027
ref: 19
BEARING
0811362027
€ 14.50
20
0928325087
ref: 20
SEAL,OIL(25X40X7)
0928325087
€ 8.50
21
2474120A10
ref: 21
RETAINER,SHIFT CAM,R BEARING
€ 2.00
22
0211206128
ref: 22
SCREW 6X12
0211206128
€ 2.00
23
2626001B02
ref: 23
GEAR,KICK STARTER IDLE
2626001B02
€ 32.50
24
0821115241
ref: 24
WASHER,THRUST
€ 4.00
25
0833131159
ref: 25
CIRCLIP,15MM
0833131159
€ 2.00
26-1
2751114121
ref: 26-1
SPROCKET,ENGINE
2751114121
€ 27.50
26-2
2751114101
ref: 26-2
OPT
SPROCKET,ENGINE
2751114101
€ 23.50
26-3
2751114111
ref: 26-3
OPT
SPROCKET,ENGINE
2751114111
€ 19.00
27
0910020102
ref: 27
SPACER (20X25X12.8)
€ 0.00
28
0938020007
ref: 28
CIRCLIP
0938020007
€ 3.00
29
0928020001
ref: 29
O RING(D:1,ID:19.5)
0928020001
€ 2.00
30
2760001B10114
ref: 30
CHAIN ASSEMBLY,DRIVE
€ 72.50
31-1
2762001B10
ref: 31-1
JOINT ASSEMBLY,CHAIN
€ 5.00
31-2
2762001B40
ref: 31-2
JOINT ASSEMBLY,CHAIN
€ 5.00
