CUSHION LEVER (MODEL M)

RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

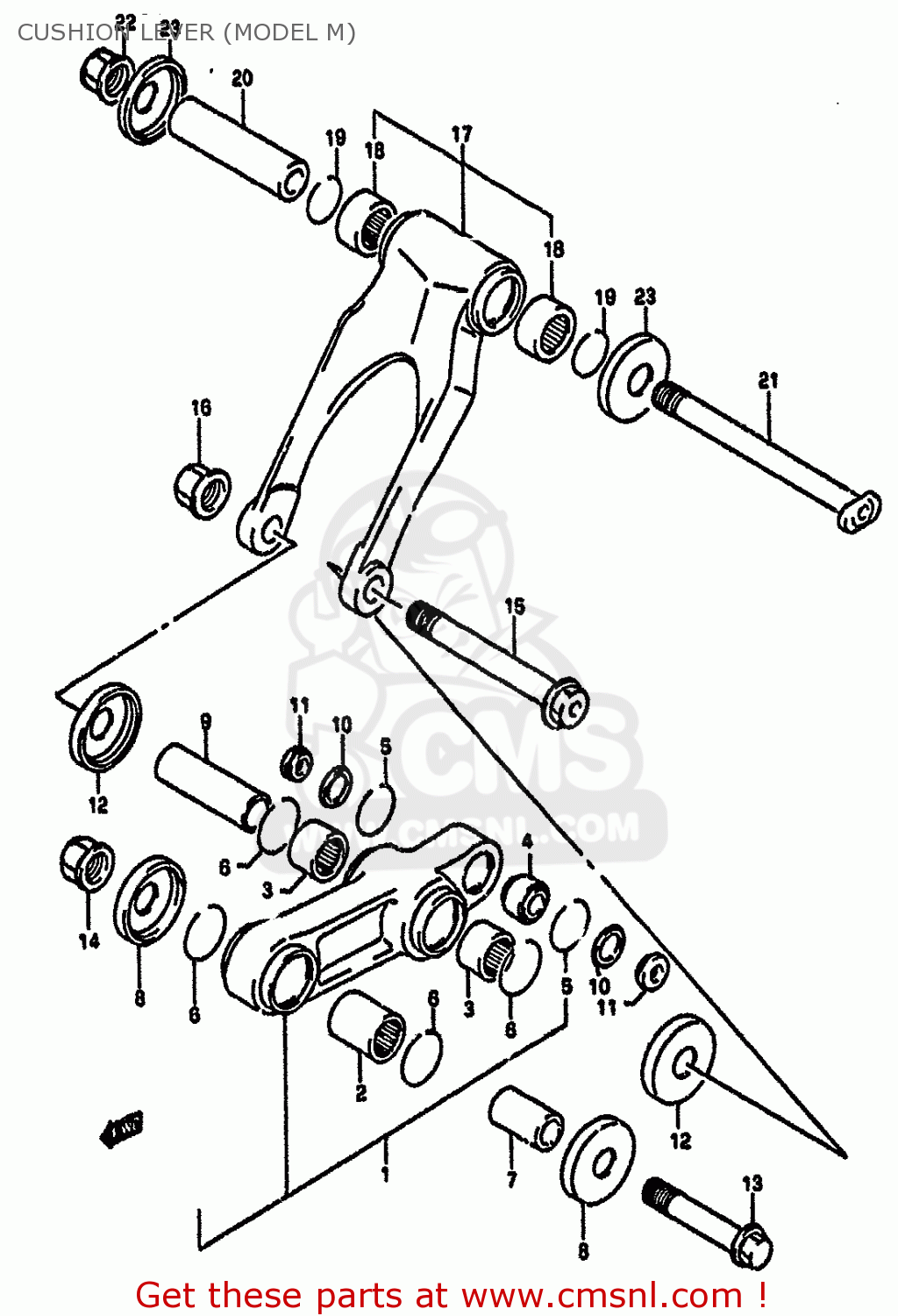

Cushion lever (model m) diagram RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CUSHION LEVER (MODEL M) RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CUSHION LEVER (MODEL M) RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CUSHION LEVER (MODEL M) RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
6260027870
ref: 1
LEVER SET,REAR CUSHION
6260027870
€ 309.50
2
0926320053
ref: 2
BEARING(20X27X25)
0926320053
€ 15.50
3
0926321012
ref: 3
BEARING(21X27X20)
0926321012
€ 16.50
4
6217500B00
ref: 4
BEARING,RR CUSHION LEVER
6217500B00
€ 66.00
5
6227714200
ref: 5
RING
6227714200
€ 1.50
6
0938126002
ref: 6
CIRCLIP
0938126002
€ 2.50
7
6231727C10
ref: 7
SPACER,RR CUSHION LEVER FR
6231727C10
€ 9.00
8
6216228C01
ref: 8
SEAL,REAR CUSHION LEVER
€ 6.50
9
6264627C20
ref: 9
SPACER,REAR CUSHION LEVER,C
6264627C20
€ 18.50
10
6222628C00
ref: 10
SEAL,RR CUSHION LEVER RR DUST
6222628C00
€ 7.50
11
6268428C10
ref: 11
SPACER,RR CUSHION LEVER RR
6268428C10
€ 11.00
12
6268227C20
ref: 12
SEAL,REAR CUSHION LEVER
6268227C20
€ 10.00
13
6265827C10
ref: 13
BOLT,RR CUSHION LEVER FR
6265827C10
€ 8.00
14
0831931128
ref: 14
NUT 12MM
0831931128
€ 4.00
15
6262127C10
ref: 15
BOLT,REAR CUSHION LEVER,CENTER
6262127C10
€ 29.50
16
0831931148
ref: 16
NUT
0831931148
€ 9.00
17
6260027880
ref: 17
LEVER SET,REAR CUSHION
€ 280.00
18
0926321012
ref: 18
BEARING(21X27X20)
0926321012
€ 16.50
19
0938126002
ref: 19
CIRCLIP
0938126002
€ 2.50
20
6264527C20
ref: 20
SPACER,RR CUSHION ROD
6264527C20
€ 17.50
21
6262227C20
ref: 21
BOLT,RR CUSHION ROD
6262227C20
€ 29.50
22
0831931148
ref: 22
NUT
0831931148
€ 9.00
23
6268227C20
ref: 23
SEAL,REAR CUSHION LEVER
6268227C20
€ 10.00
24
6268327C00
ref: 24
SEAL,RR CUSHION LEVER
6268327C00
€ 7.00
23
0831931148
ref: 23
NUT
0831931148
€ 9.00
