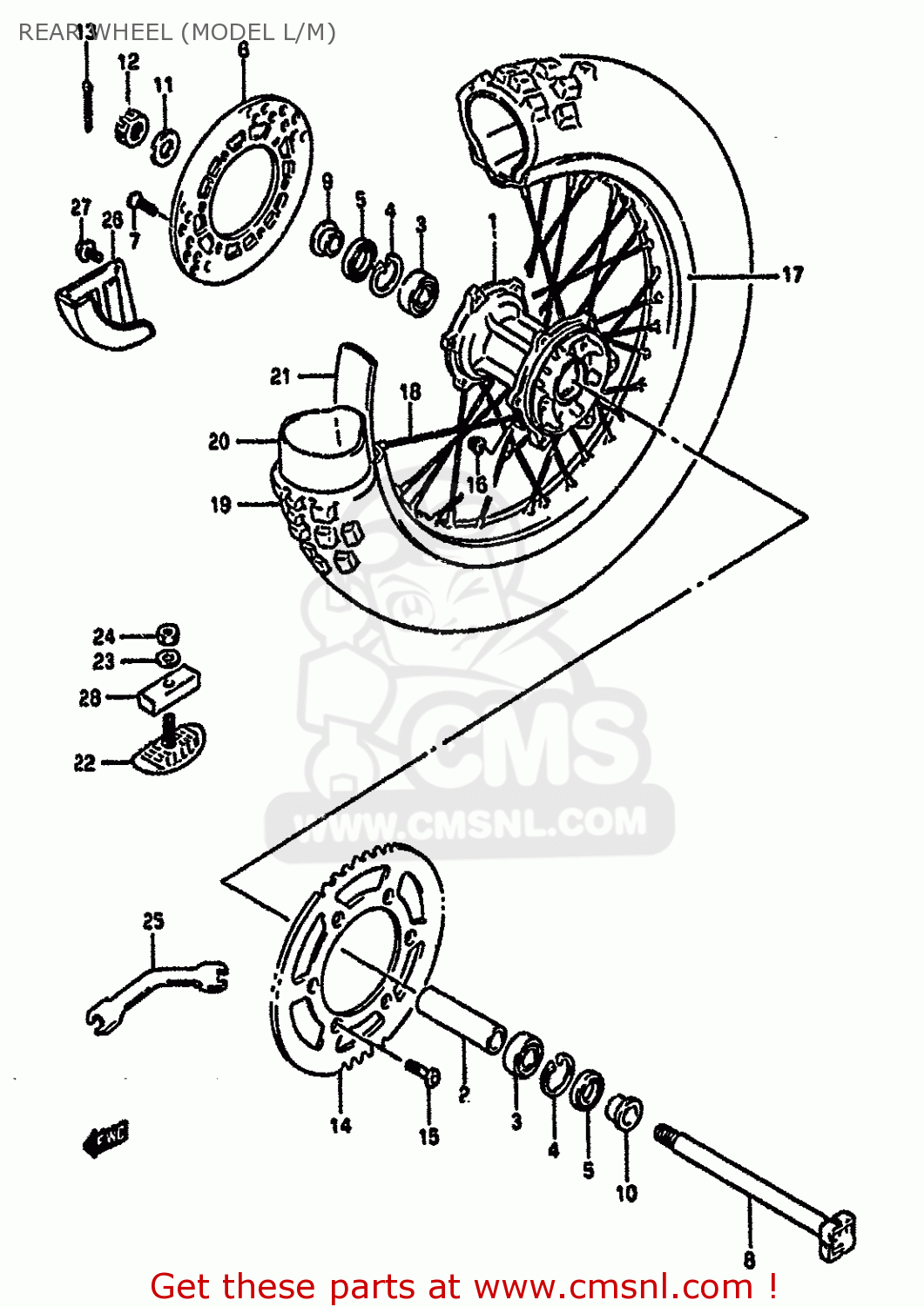

REAR WHEEL (MODEL L/M)

ref

part #

description

quantity

1

6411027C01
ref: 1

HUB,RR

€ 265.00

2

6473100B22
ref: 2

SPACER,RR HUB BEARING

€ 18.00

3

0813362047
ref: 3

BEARING WHEEL REAR(20X47X14)

€ 22.50

4

0833141476
ref: 4

CIRCLIP

€ 2.50

5

0928326019
ref: 5

SEAL,OIL(26X47X5)

€ 9.50

6

6921127C00
ref: 6

DISC,REAR BRAKE

€ 160.00

7

0212206167
ref: 7

SCREW

€ 2.00

8-1

6471127C01
ref: 8-1
MODEL L

AXLE,RR

€ 65.50

8-2

6471127C20
ref: 8-2
MODEL M

AXLE,REAR

€ 105.00

9

6474100B21
ref: 9

SPACER,RR AXLE,R

€ 12.50

10

6475127C00
ref: 10

SPACER,RR AXLE,L

€ 12.00

11

0916019010
ref: 11

WASHER (19X32X3.2)

€ 5.00

12

0831441188
ref: 12

NUT 18MM

€ 6.00

13

0411140308
ref: 13

PIN,COTTER

€ 1.50

14-1

6451140261
ref: 14-1

SPROCKET,RR(NT:51 AL)

€ 87.50

14-2

6451140271
ref: 14-2
OPT ALUMINIUM

SPROCKET,REAR

€ 99.00

14-3

6451140266
ref: 14-3
OPT ALUMINIUM

SPROCKET,REAR (NT:52)(AL)

€ 118.50

14-4

6451100B11
ref: 14-4
OPT STEEL

SPROCKET,REAR

€ 86.00

14-5

6451100B21
ref: 14-5
OPT STEEL

SPROCKET,RR(NT:51)

€ 66.00

14-6

6451100B31
ref: 14-6
OPT STEEL

SPROCKET,REAR (NT:52,F)

€ 63.00

15

0912008010
ref: 15

BOLT(8X30.5)

€ 2.50

16-1

0915908034
ref: 16-1
MODEL L

NUT

€ 2.00

16-2

0915908067
ref: 16-2
MODEL M

NUT

€ 5.50

17

6531127C10
ref: 17

RIM,REAR WHEEL (1.85X19)(A

€ 357.00

18

6532027C10
ref: 18

SPOKE SET,REAR WHEEL

€ 97.00

19

6511001B30
ref: 19

TIRE,REAR (100/90-19) DUNLOP

€ 154.50

20

6520001B30
ref: 20

TUBE ASSEMBLY,WHEEL,INNER

€ 41.00

21

6526101B30
ref: 21

PROTECTOR,WHL INR TUBE

€ 3.50

22

6527046910
ref: 22

STOPPER,BEAD

€ 30.50

23

0832211088
ref: 23

WASHER

€ 2.00

24

0831012088
ref: 24

NUT

€ 2.00

25

0981300039
ref: 25

SPANNER,OPEN

€ 8.00

26

6923127C00
ref: 26

COVER,REAR DISC

€ 29.50

27

0151706128
ref: 27

BOLT

€ 2.50

28

6527127C00
ref: 28

CUSHION,BEAD STOPPER

€ 5.50

all assemblies
