CRANKCASE (MODEL L/M)

RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

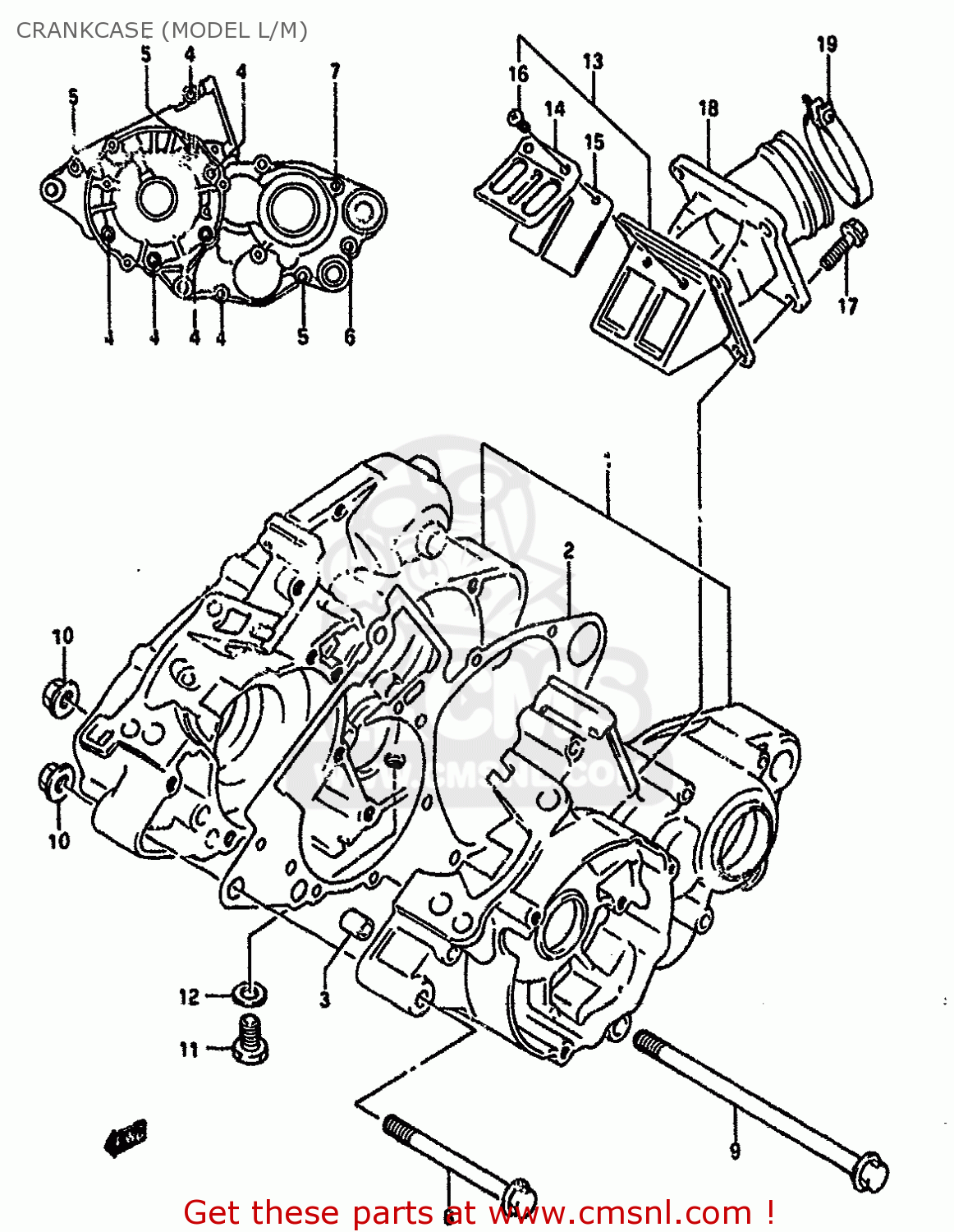

Crankcase (model l/m) diagram RM125 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1130027880
ref: 1

CRANKCASE SET

€ 504.00

1148127C01
ref: 2

GASKET,CRANKCASE (NAS)

€ 12.50

0421109129
ref: 3

PIN

€ 2.00

0154706457
ref: 4

BOLT

€ 2.50

0154706557
ref: 5

BOLT

€ 2.50

0154706607
ref: 6

BOLT

€ 2.50

0154706657
ref: 7

BOLT

€ 2.00

0910308010
ref: 8

BOLT(8X88)

€ 55.50

9-1

0910308271
ref: 9-1
MODEL L

BOLT

€ 8.00

9-2

0910308298
ref: 9-2
MODEL M

BOLT(8X145)

€ 8.00

0915908067
ref: 10

NUT

€ 5.50

0110708167
ref: 11

BOLT,8X16

€ 2.00

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

1315027C10
ref: 13

VALVE ASSEMBLY,REED

€ 77.50

1315227C10
ref: 14

STOPPER,REED VALVE

€ 6.00

1315327C10
ref: 15

VALVE,REED

€ 30.50

0211233088
ref: 16

SCREW

€ 2.00

0154706207
ref: 17

BOLT

€ 2.50

1311027C10
ref: 18

PIPE,INTAKE

€ 67.50

0940250306
ref: 19

CLAMP

€ 6.00

0940250306
ref: 21

CLAMP

€ 6.00
