AIR CLEANER (MODEL K4/K5/K6)
RM125 2002 (K2) USA (E03)

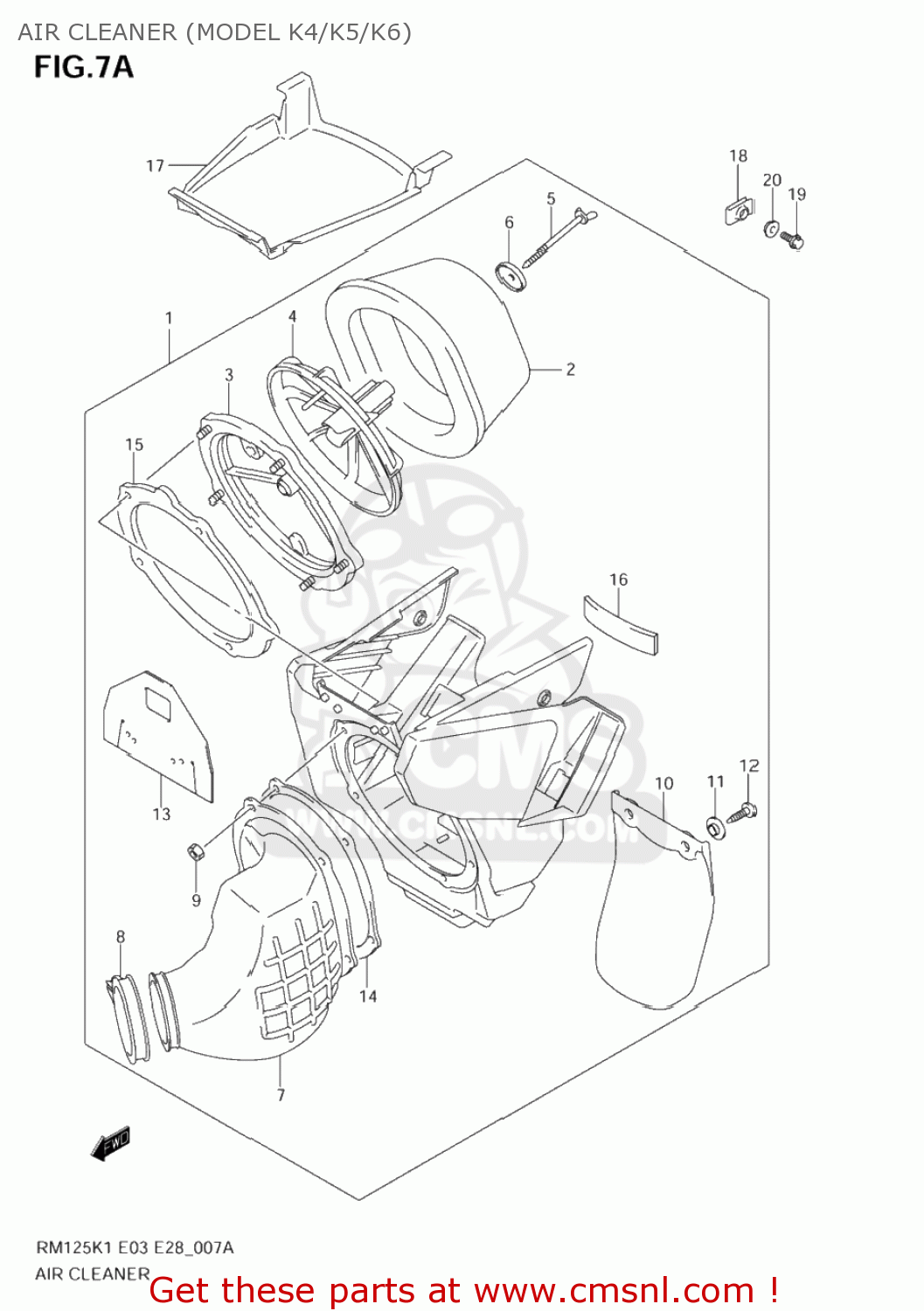

Air cleaner (model k4/k5/k6) diagram RM125 2002 (K2) USA (E03)
AIR CLEANER (MODEL K4/K5/K6) RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370036F30
ref: 1-1
13700-36F31
CLEANER ASSY,A
€ 267.50
1-2
1370036F31
ref: 1-2
CLEANER ASSY,AIR
€ 267.50
1-3
1370036F50
ref: 1-3
CLEANER ASSY,AIR
€ 261.00
2
1378037F20
ref: 2
FILTER ASSY
€ 38.00
3
1379037F20
ref: 3
BASE,FILTER
€ 15.50
4
1379137F20
ref: 4
HOLDER,FILTER
€ 14.00
5
1383137F20
ref: 5
BOLT,WING
€ 5.50
6
1379213A01
ref: 6
WASHER,AIR CLEANER
€ 3.00
7
1388136F30
ref: 7
TUBE,OUTLET
€ 74.50
8
0940270902
ref: 8
CLAMP
€ 6.00
9-1
0831000057
ref: 9-1
NUT
€ 2.50
9-2
0831921053
ref: 9-2
08319-2105A
NUT
€ 1.50
10
1373836E01
ref: 10
MUDGUARD
€ 18.50
11
1383802B00
ref: 11
COLLAR
€ 2.50
12
1383135F00
ref: 12
SCREW
€ 2.00
13
1374937F30
ref: 13
COVER,AIR CLEANER
€ 20.00
14
1379537F20
ref: 14
PLATE
€ 12.00
15
1379637F20
ref: 15
GASKET (NAS)
€ 9.50
16-1
1373637F30
ref: 16-1
CUSHION,AIR CLEANER
€ 8.50
16-2
1373637F50
ref: 16-2
CUSHION,AIR CLEANER
€ 14.00
17
1374136F30
ref: 17
CAP,AIR CLEANER
€ 13.00
18
7181282010
ref: 18
09148-06021
HOLDER,REAR BU
€ 3.00
19
0910306256
ref: 19
BOLT(6X10)
€ 2.00
20
0916906054
ref: 20
09169-06053
WASHER
€ 2.00
