KICK STARTER
RM125 2002 (K2) USA (E03)

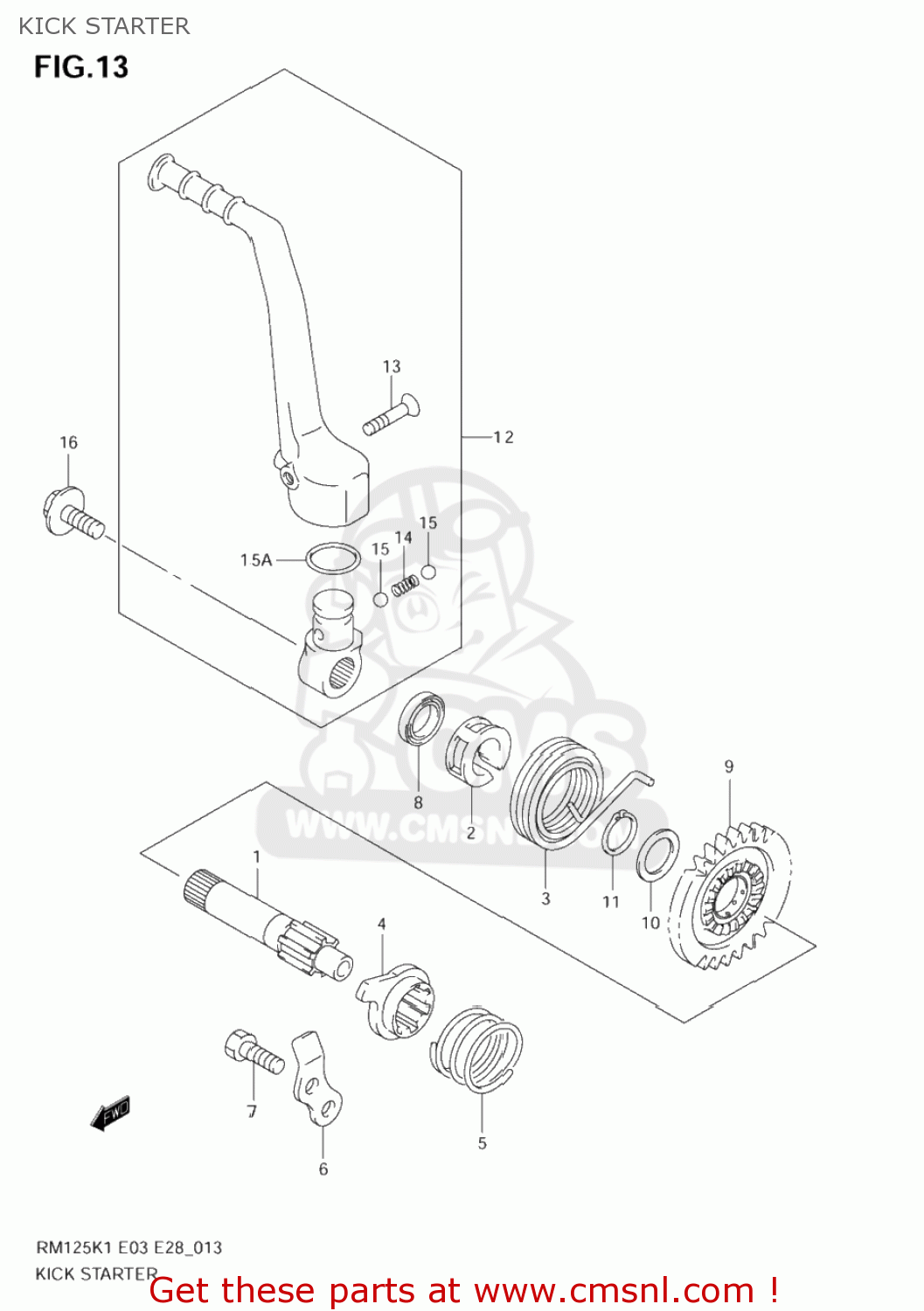

Kick starter diagram RM125 2002 (K2) USA (E03)
KICK STARTER RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2621127C01
ref: 1-1
26211-27C02
SHAFT,KICK STARTER
€ 113.50
1-2
2621127C02
ref: 1-2
SHAFT,KICK STARTER
€ 113.50
2
2622127C00
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 3.50
3
0944845013
ref: 3
SPRING
€ 11.00
4
2623102B01
ref: 4
26231-02B02
STARTER,KICK
€ 15.50
5
0944031002
ref: 5
SPRING
€ 2.00
6
2623240200
ref: 6
GUIDE,KICK STARTER
€ 3.00
7
0150006123
ref: 7
01500-0612A
BOLT
€ 2.00
8
0928316004
ref: 8
SEAL,OIL(15.8X24X5)
€ 6.00
9
2624143D01
ref: 9
GEAR,KICK STARTER DRIIVE
€ 85.00
10
0918116158
ref: 10
SHIM(16X24X0.5)
€ 3.50
11
0833131166
ref: 11
08331-3116A
CIRCLIP 16MM
€ 2.00
12-1
2630036F00
ref: 12-1
26300-36F01
LEVER ASSY,KIC
€ 169.50
12-2
2630036F01
ref: 12-2
LEVER ASSY,KICK STARTER
€ 169.50
13
0912706016
ref: 13
SCREW(6X27.5)
€ 3.00
14
0944005031
ref: 14
SPRING
€ 1.50
15
0611107004
ref: 15
BALL
€ 1.50
15A
2631328E20
ref: 15A
O RING,KICK STARTER
€ 2.00
16
0910308253
ref: 16
BOLT(8X14)
€ 4.00
