FRONT DAMPER (MODEL K1)
RM125 2002 (K2) USA (E03)

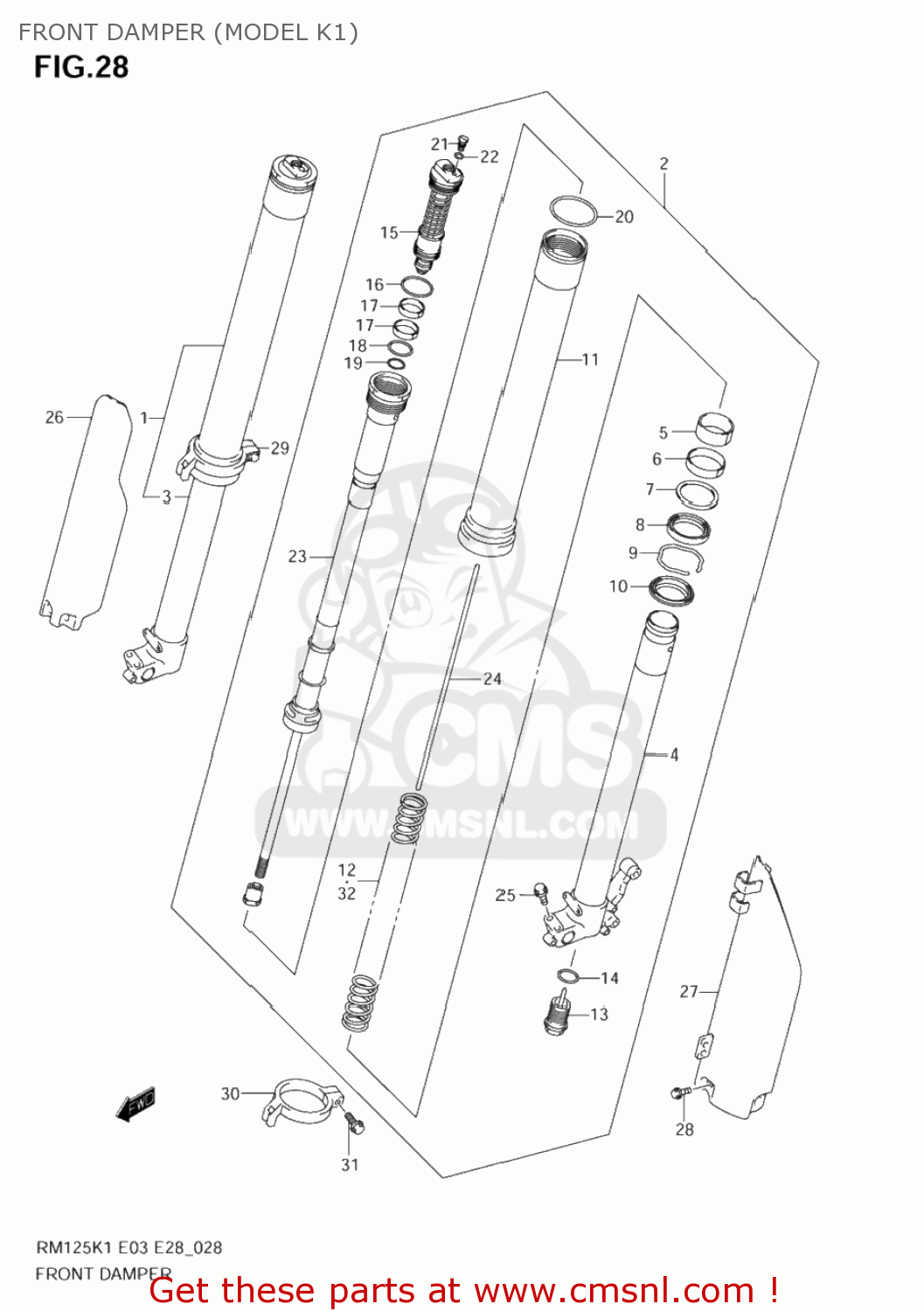

Front damper (model k1) diagram RM125 2002 (K2) USA (E03)
FRONT DAMPER (MODEL K1) RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110336F10
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,420.00
2
5110436F10
ref: 2
DAMPER ASSY,FR FORK,L
€ 1,646.50
3
5111036F00
ref: 3
TUBE,INNER,R
€ 445.00
4
5112036F00
ref: 4
TUBE,INNER,L
€ 445.00
5
5112136F00
ref: 5
BUSH,SLIDE
€ 11.50
6
5116736F00
ref: 6
BUSH,GUIDE
€ 13.00
7
5115836F00
ref: 7
SPACER,SEAL
€ 5.00
8
5115336F00
ref: 8
SEAL,OIL
€ 21.00
9
5115636F00
ref: 9
51156-27C40
RING,OIL SEAL
€ 3.50
10
5117336F00
ref: 10
SEAL,DUST
€ 19.00
11
5113036F00
ref: 11
TUBE,OUTER
€ 529.50
12
5117136F00
ref: 12
SPRING,FR(K=0.40)
€ 61.50
13
5117036E20
ref: 13
BOLT,CTR
€ 128.50
14
5117736E20
ref: 14
O RING
€ 2.50
15
5135136F10
ref: 15
BOLT,FORK
€ 230.50
16
5111736E00
ref: 16
O RING
€ 3.50
17
5112328E30
ref: 17
BUSH,FORK BOLT SLIDE
€ 9.50
18
5117436E40
ref: 18
O RING
€ 2.50
19
5117536F00
ref: 19
51175-36E20
O RING
€ 2.50
20
5111736E60
ref: 20
O RING
€ 4.00
21
5135736F00
ref: 21
51357-36F20
BOLT,PLUG
€ 8.00
22
5135828E30
ref: 22
O RING,PLUG
€ 2.50
23
5119036F10
ref: 23
ROD,DAMPER
€ 622.00
24
5119136F00
ref: 24
ROD,PUSH
€ 9.50
25
5132836F00
ref: 25
BOLT
€ 6.50
26
5150136E60
ref: 26
PROTECTOR FORK,R
€ 89.50
27
5151136E60
ref: 27
PROTECTOR,FORK,L
€ 89.50
28
5862727C40
ref: 28
BOLT,PROTECTOR(6X10)
€ 2.50
29
5122036E61
ref: 29
GUIDE,PROTECTOR,R
€ 29.00
30
5121036E61
ref: 30
GUIDE,PROTECTOR,L
€ 29.00
31
0154706207
ref: 31
BOLT
€ 2.50
32-1
5117136F10
ref: 32-1
SPRING,FR(K=0.42)
€ 63.50
32-2
5117136F20
ref: 32-2
SPRING,FR(SOFT,K=0.38)
€ 162.50
