FRONT DAMPER (MODEL K5)
RM125 2002 (K2) USA (E03)

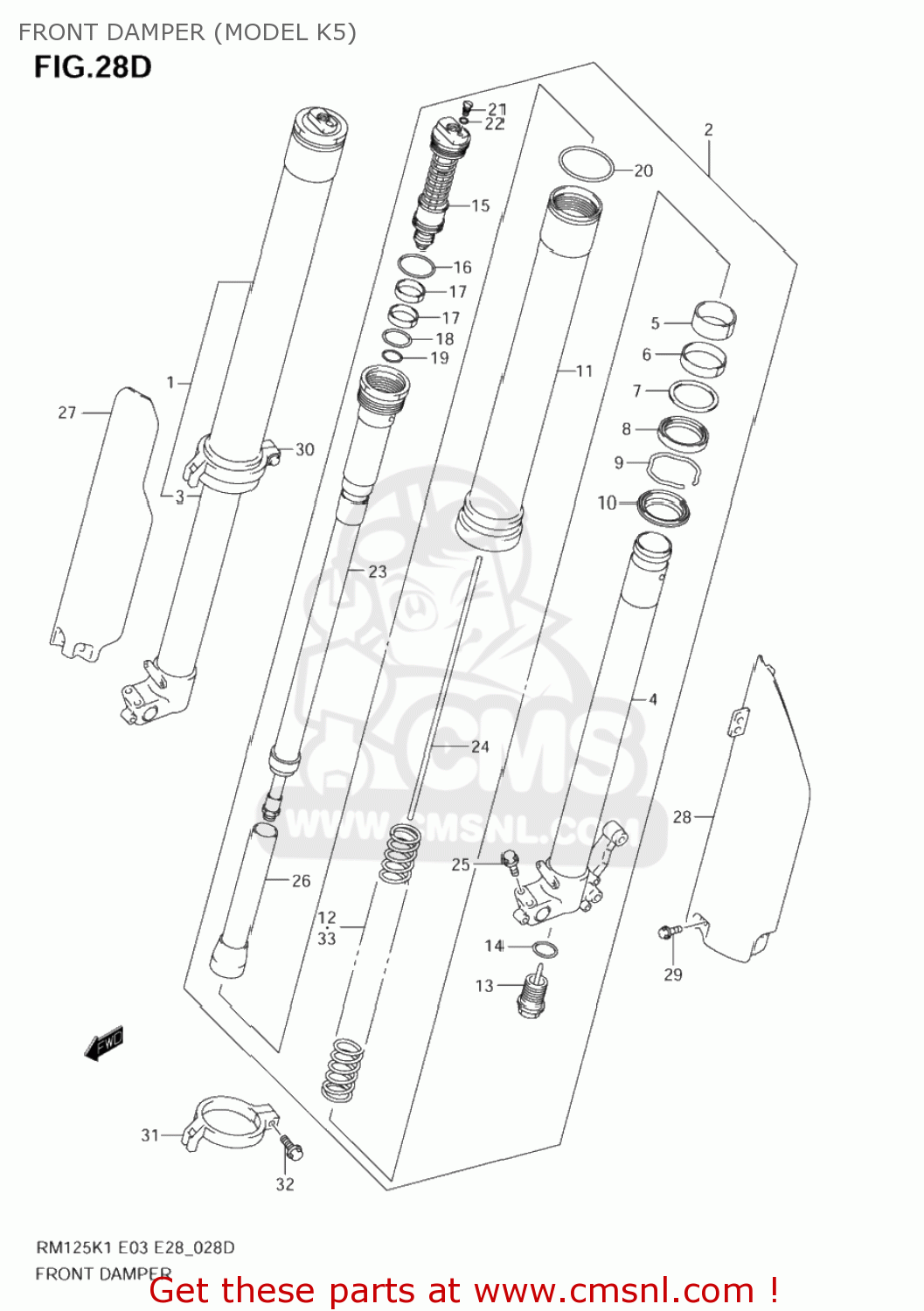

Front damper (model k5) diagram RM125 2002 (K2) USA (E03)
FRONT DAMPER (MODEL K5) RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110336FB0
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,189.00
2
5110436FB0
ref: 2
DAMPER ASSY,FR FORK,L
€ 1,189.00
3
5111037F80
ref: 3
TUBE,INNER,R
€ 399.50
4
5112037F80
ref: 4
TUBE,INNER,L
€ 409.50
5
5112136F00
ref: 5
BUSH,SLIDE
€ 11.50
6
5116736F00
ref: 6
BUSH,GUIDE
€ 13.00
7
5115836F00
ref: 7
SPACER,SEAL
€ 5.00
8
5115337F80
ref: 8
SEAL,OIL
€ 13.50
9
5115627C40
ref: 9
RING,OIL SEAL STOPPER
€ 3.50
10
5117337F80
ref: 10
SEAL,DUST
€ 16.50
11
5113037F70
ref: 11
TUBE,OUTER
€ 520.00
12
5117137FD0
ref: 12
SPRING,FR(SOFT,K=0.42)
€ 115.50
13
5117037F80
ref: 13
BOLT,CTR
€ 156.50
14
5117736E20
ref: 14
O RING
€ 2.50
15
5135136FB0
ref: 15
BOLT,FORK
€ 194.50
16
5111737F80
ref: 16
O RING
€ 3.50
17
5112328E30
ref: 17
BUSH,FORK BOLT SLIDE
€ 9.50
18
5117436E40
ref: 18
O RING
€ 2.50
19
5117537F80
ref: 19
O RING
€ 3.50
20
5111837F80
ref: 20
O RING
€ 4.00
21
5135736F20
ref: 21
BOLT,PLUG
€ 8.00
22
5135828E30
ref: 22
O RING,PLUG
€ 2.50
23
5119037F80
ref: 23
ROD,DAMPER
€ 591.00
24
5119136F40
ref: 24
ROD,PUSH
€ 15.00
25
5132837F80
ref: 25
BOLT
€ 5.00
26
5119837F80
ref: 26
COLLAR,SPRING
€ 53.00
27
5150137F60
ref: 27
51501-37F61
PROTECTOR,FRON
€ 92.50
28
5151137F60
ref: 28
51511-37F61
PROTECTOR,FRON
€ 92.50
29
0910306256
ref: 29
BOLT(6X10)
€ 2.00
30
5122036E61
ref: 30
GUIDE,PROTECTOR,R
€ 29.00
31
5121036E61
ref: 31
GUIDE,PROTECTOR,L
€ 29.00
32
0154706207
ref: 32
BOLT
€ 2.50
33-1
5117137FC0
ref: 33-1
SPRING,FR(K=0.44)
€ 115.50
33-2
5117136F60
ref: 33-2
SPRING,FR(SOFT K=0.40)
€ 137.00
