EXHAUST VALVE (MODEL K3)
RM125 2002 (K2) USA (E03)

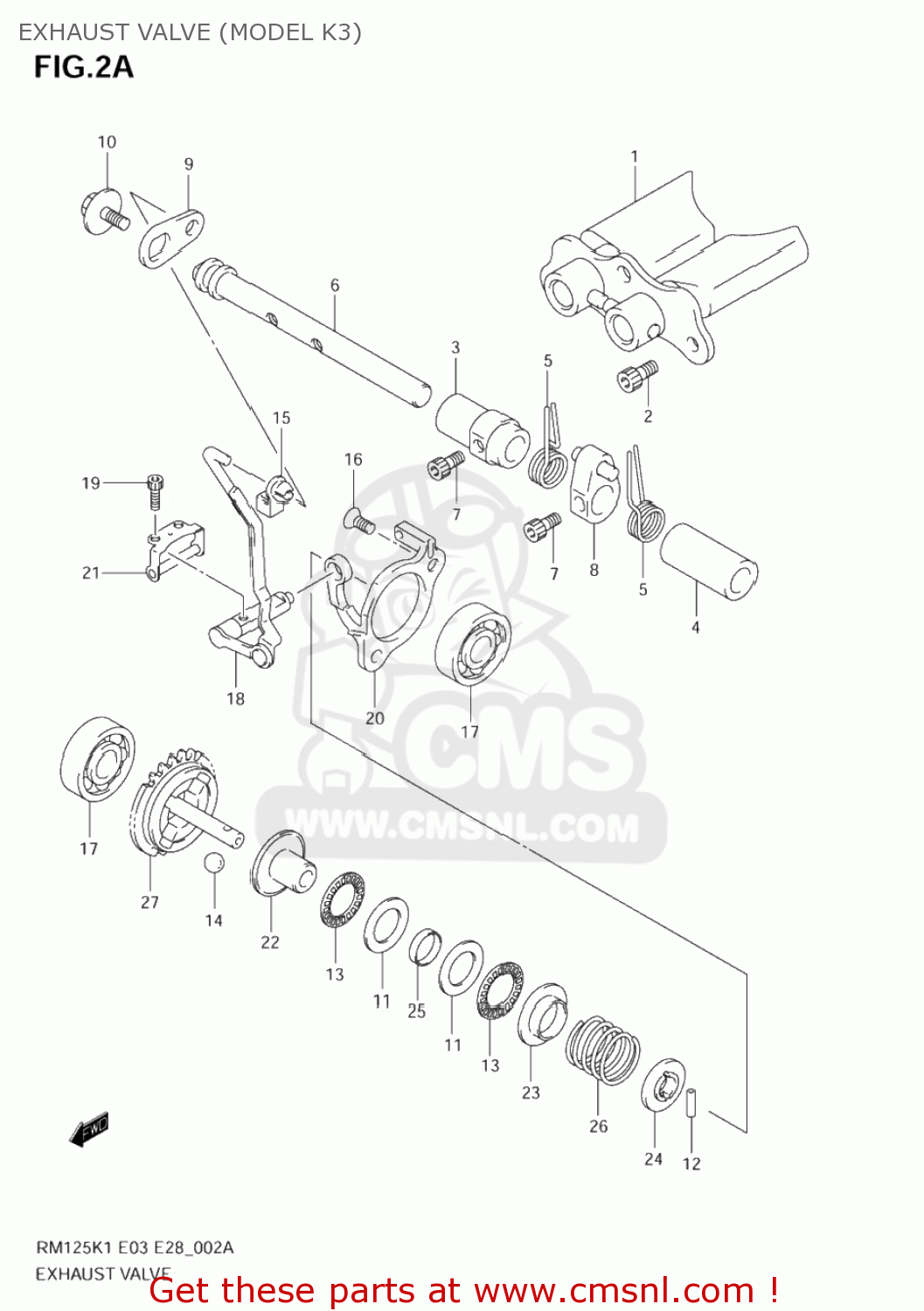

Exhaust valve (model k3) diagram RM125 2002 (K2) USA (E03)
EXHAUST VALVE (MODEL K3) RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1125036F10
ref: 1
VALVE SET, EXHAUST
€ 205.50
2
0713005123
ref: 2
07130-0512B
BOLT
€ 2.50
3
1126836F10
ref: 3
SPACER,EXHAUST VALVE SHAFT
€ 17.00
4
0918008057
ref: 4
SPACER (8.2X12.5X23.5)
€ 2.00
5
1125736F11
ref: 5
SPRING,EXHAUST VALVE SHAFT ARM
€ 4.50
6
1125936F10
ref: 6
SHAFT,EXHAUST
€ 52.50
7
0910604003
ref: 7
BOLT(4X8)
€ 2.00
8
1127036F10
ref: 8
ARM,EXHAUST VALVE SHAFT
€ 127.00
9
1126636F10
ref: 9
LEVER,EXHAUST VALVE NO.1
€ 15.00
10
0911805003
ref: 10
BOLT(5X12)
€ 4.00
11
0918115223
ref: 11
SHIM(15X28X1)
€ 2.50
12
0926103017
ref: 12
ROLLER(3X12.5)
€ 1.50
13
0926315003
ref: 13
BEARING(15X28X2)
€ 7.00
14
0611112004
ref: 14
BALL
€ 1.50
15
1268601B00
ref: 15
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
16
0912005003
ref: 16
SCREW(5X10)
€ 2.00
17
0926208005
ref: 17
BEARING(8X22X7)
€ 12.50
18
1268936F21
ref: 18
ACTUATOR,EXHAUST VALVE
€ 27.00
19
0910604003
ref: 19
BOLT(4X8)
€ 2.00
20
1268136F20
ref: 20
BASE,ACTUATOR
€ 39.00
21
1268236F21
ref: 21
ARM,ACTUATOR
€ 6.00
22
1267236F10
ref: 22
GOVERNOR,DRIVEN
€ 17.50
23
1267436F10
ref: 23
STOPPER,GOVERNOR SPRING NO.1
€ 13.00
24
1267536F11
ref: 24
STOPPER,GOVERNOR SPRING NO.2
€ 9.50
25
1267636F10
ref: 25
SPACER,GOVERNOR
€ 8.50
26
1267736F10
ref: 26
SPRING,GOVERNOR
€ 3.00
27
1267036810
ref: 27
GOVERNOR SET,EXHAUST
€ 57.00
