CARBURETOR (MODEL K6)
RM125 2002 (K2) USA (E03)

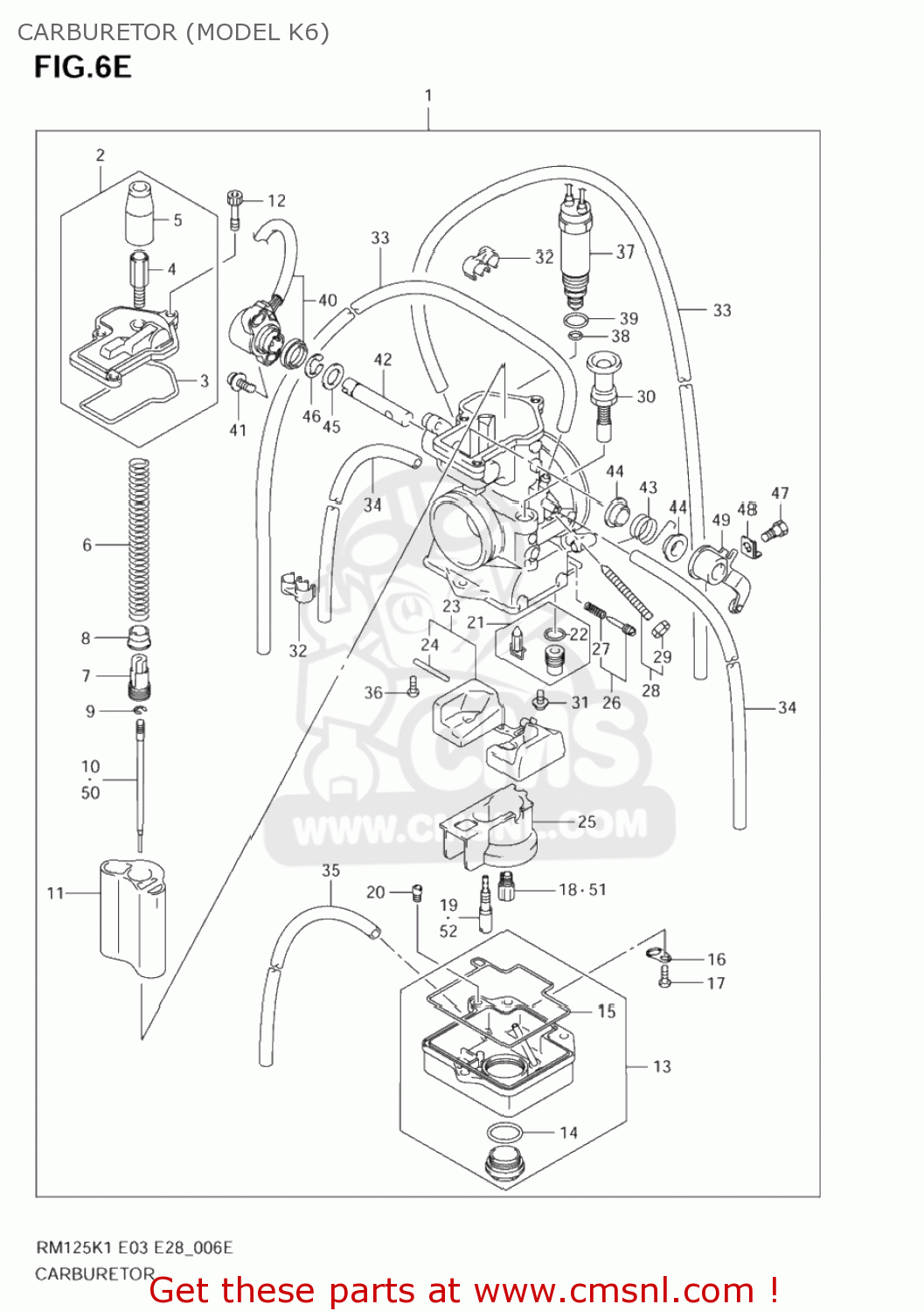

Carburetor (model k6) diagram RM125 2002 (K2) USA (E03)
CARBURETOR (MODEL K6) RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1320036F80
ref: 1
CARBURETOR ASSY
€ 659.50
2
1326036F10
ref: 2
TOP CAP ASSY
€ 46.00
3
1325836F10
ref: 3
O RING
€ 5.00
4
1368136F00
ref: 4
CAP
€ 7.00
5
1357741612
ref: 5
ADJUSTER,CABLE
€ 8.00
6
1357336F10
ref: 6
SPRING
€ 8.00
7
1351836F00
ref: 7
GUIDE HOLDER
€ 12.50
8
1342436F00
ref: 8
RING
€ 5.00
9
1339417E60
ref: 9
E RING,MULTIPLE JET NOZZLE
€ 1.50
10
1338336F40
ref: 10
NEEDLE(6BGY23-75)
€ 11.50
11
1355136F50
ref: 11
VALVE,PISTON
€ 149.50
12
1326236F00
ref: 12
BOLT
€ 5.00
13
1325036F20
ref: 13
FLOAT BODY ASSY
€ 89.00
14
1324629630
ref: 14
O RING
€ 5.00
15
1325136F00
ref: 15
O RING
€ 10.00
16
1369336500
ref: 16
PLATE,CARBURETOR
€ 3.50
17
1360105148
ref: 17
13601-05148-XC0
SCREW(5X14)
€ 3.00
18
0949174003
ref: 18
JET,MAIN(370)
€ 8.50
19
0949242003
ref: 19
JET,PILOT(42.5)
€ 12.50
20
0949255012
ref: 20
JET,ENRICHMENT(55)
€ 13.50
21
1337036F00
ref: 21
VALVE ASSY,NEEDLE
€ 40.00
22
1337435C00
ref: 22
O RING,NEEDLE VALVE SEAT
€ 6.00
23
1324036F00
ref: 23
FLOAT SET
€ 52.50
24
1325420010
ref: 24
PIN,FLOAT
€ 3.00
25
1341836F00
ref: 25
HOLDER
€ 7.50
26
1328036F20
ref: 26
ADJUSTER SET(AS)
€ 12.00
27
1326835010
ref: 27
SPRING
€ 3.00
28
1327036F00
ref: 28
ADJUSTER SET (PV)
€ 12.00
29
1360747070
ref: 29
NUT
€ 4.00
30
1341136F00
ref: 30
PLUNGER ASSY
€ 42.50
31
1360205A10
ref: 31
SCREW
€ 4.00
32
1361942E00
ref: 32
CLIP
€ 4.50
33
0935135653600
ref: 33
HOSE(3.5X6.5X600)
€ 5.50
34
0935135653600
ref: 34
HOSE(3.5X6.5X600)
€ 5.50
35
0935130503600
ref: 35
HOSE(3X5X600)
€ 6.50
36
0211204083
ref: 36
02112-0408A
SCREW
€ 2.00
37
1316036F00
ref: 37
SOLENOID ASSY
€ 209.00
38
1345336F00
ref: 38
O RING
€ 3.00
39
1345436F00
ref: 39
O RING
€ 4.50
40
1358136F00
ref: 40
SENSOR ASSY
€ 104.50
41
1360539F00
ref: 41
SCREW
€ 4.00
42
1358236F00
ref: 42
SHAFT
€ 13.50
43
1358336F00
ref: 43
TORSION SPRING
€ 2.50
44
1358436F00
ref: 44
RING
€ 2.50
45
1355747070
ref: 45
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
46
1361744080
ref: 46
E RING
€ 3.50
47
1358736F00
ref: 47
BOLT
€ 3.50
48
1358836F00
ref: 48
PLATE
€ 3.00
49
1358936F00
ref: 49
LEVER ASSY
€ 26.50
50-1
1338336FM0
ref: 50-1
NEEDLE(6CHY17-64)
€ 15.00
50-10
1338136F10
ref: 50-10
NEEDLE(6CHY16-60)
€ 13.00
50-2
1338336FP0
ref: 50-2
NEEDLE(6CHY17-63)
€ 15.00
50-3
1338336FR0
ref: 50-3
NEEDLE(6CHY17-62)
€ 15.00
50-4
1338136F00
ref: 50-4
NEEDLE(6CHY17-61)
€ 13.50
50-5
1338136F20
ref: 50-5
NEEDLE(6CHY17-60)
€ 9.50
50-6
1338336FL0
ref: 50-6
NEEDLE(6CHY16-64)
€ 15.00
50-7
1338336FN0
ref: 50-7
NEEDLE(6CHY16-63)
€ 15.00
50-8
1338336FQ0
ref: 50-8
NEEDLE(6CHY16-62)
€ 15.00
50-9
1338336FS0
ref: 50-9
NEEDLE(6CHY16-61)
€ 10.50
51-1
0949180010
ref: 51-1
JET,MAIN(400)
€ 8.50
51-10
0949198001
ref: 51-10
JET,MAIN(490)
€ 12.50
51-11
0949110001
ref: 51-11
JET,MAIN(500)
€ 15.50
51-12
0949170011
ref: 51-12
JET,MAIN(350)
€ 8.50
51-13
0949172011
ref: 51-13
JET,MAIN(360)
€ 8.50
51-14
0949174003
ref: 51-14
JET,MAIN(370)
€ 8.50
51-15
0949176003
ref: 51-15
JET,MAIN(380)
€ 8.50
51-16
0949178005
ref: 51-16
JET,MAIN(390)
€ 8.50
51-17
0949160007
ref: 51-17
JET,MAIN(300)
€ 9.50
51-18
0949162005
ref: 51-18
JET,MAIN(310)
€ 10.50
51-19
0949164002
ref: 51-19
JET,MAIN(320)
€ 8.50
51-2
0949182007
ref: 51-2
JET,MAIN(410)
€ 11.00
51-20
0949166002
ref: 51-20
JET,MAIN(330)
€ 10.50
51-21
0949168002
ref: 51-21
JET,MAIN(340)
€ 8.50
51-3
0949184008
ref: 51-3
JET,MAIN(420)
€ 15.50
51-4
0949186002
ref: 51-4
JET,MAIN (#430)
€ 8.50
51-5
0949188001
ref: 51-5
JET,MAIN(440)
€ 15.50
51-6
0949190005
ref: 51-6
JET,MAIN(450)
€ 12.50
51-7
0949192002
ref: 51-7
JET,MAIN(460)
€ 12.50
51-8
0949194004
ref: 51-8
JET,MAIN(470)
€ 12.50
51-9
0949196001
ref: 51-9
JET,MAIN(480)
€ 12.50
52-1
0949225011
ref: 52-1
JET,PILOT(25)
€ 15.50
52-10
0949247022
ref: 52-10
JET,PILOT(47.5)
€ 12.50
52-2
0949227011
ref: 52-2
JET,PILOT(27.5)
€ 13.00
52-3
0949230014
ref: 52-3
JET,PILOT(30)
€ 15.50
52-4
0949232010
ref: 52-4
JET,PILOT(32.5)
€ 11.50
52-5
0949235021
ref: 52-5
JET,PILOT(35)
€ 12.50
52-6
0949237003
ref: 52-6
JET,PILOT(37.5)
€ 13.00
52-7
0949240028
ref: 52-7
JET,PILOT(40)
€ 13.00
52-8
0949242023
ref: 52-8
JET,PILOT(42.5)
€ 13.00
52-9
0949245034
ref: 52-9
JET,PILOT(45)
€ 21.50
53
1339436F20
ref: 53
WASHER,JET NEEDLE CLIP
€ 4.50
53
1339436F20
ref: 53
WASHER,JET NEEDLE CLIP
€ 4.50
54
1351836F20
ref: 54
HOLDER,GUIDE
€ 12.00
54
1351836F20
ref: 54
HOLDER,GUIDE
€ 12.00
