REAR FENDER
RM125 2002 (K2) USA (E03)

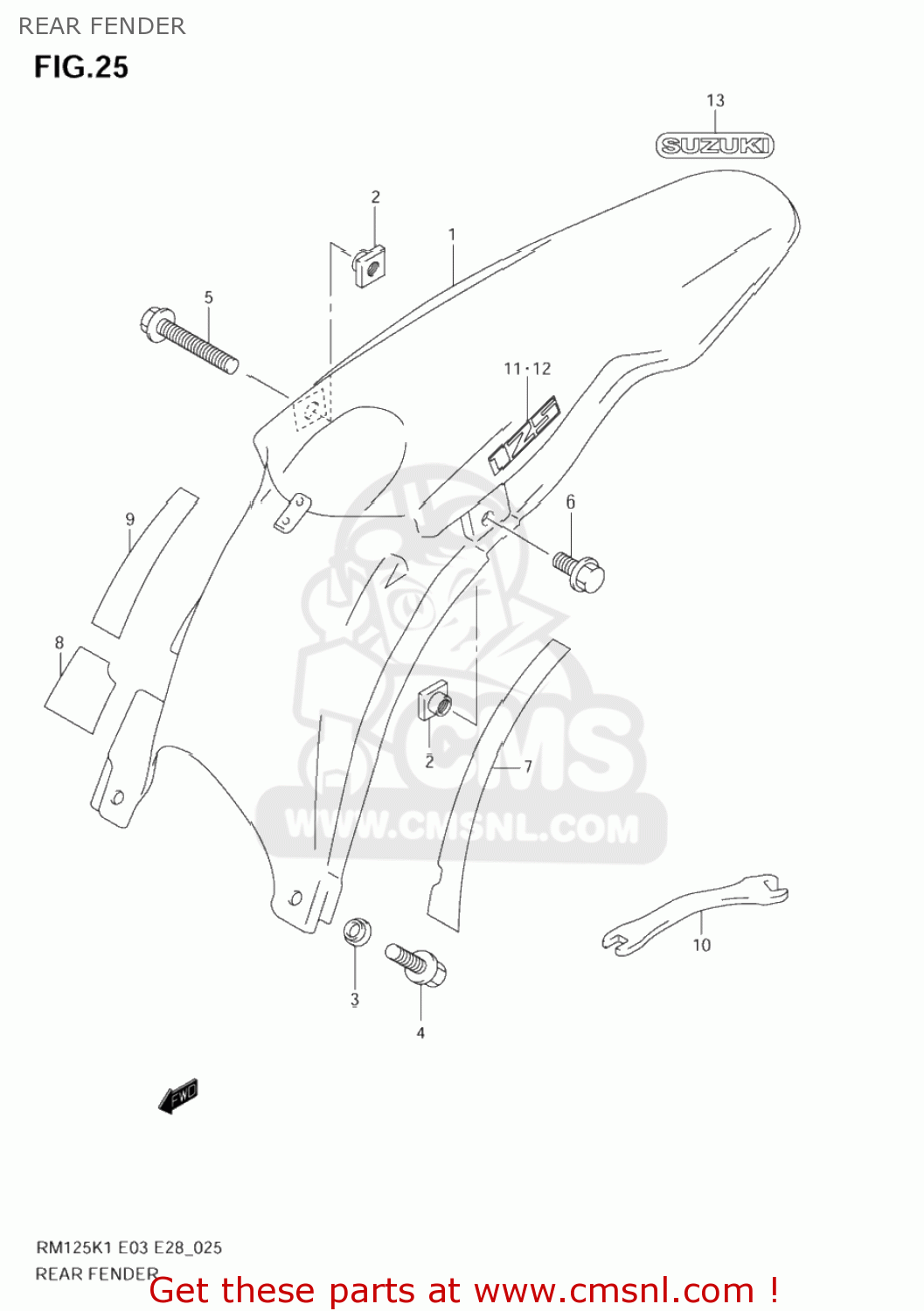

Rear fender diagram RM125 2002 (K2) USA (E03)
REAR FENDER RM125 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311137F00YR1
ref: 1-1
63111-37F00-YU1
FENDER,REAR
€ 119.00
1-2
6311137F00YU1
ref: 1-2
FENDER,RR
€ 119.00
2
0915206024
ref: 2
NUT
€ 4.50
3-1
0916906054
ref: 3-1
09169-06053
WASHER
€ 2.00
3-2
6923237F00
ref: 3-2
69232-37F01
WASHER,RR BRAK
€ 7.50
4-1
0154706203
ref: 4-1
01547-0620B
SCREW
€ 2.50
4-2
0910306235
ref: 4-2
01547-06207
BOLT,6X20
€ 2.50
5-1
0154706353
ref: 5-1
01547-0635B
BOLT
€ 3.00
5-2
0910306235
ref: 5-2
01547-06207
BOLT,6X20
€ 2.50
5-3
0910306252
ref: 5-3
BOLT(6X35)
€ 3.00
6-1
0154706163
ref: 6-1
01547-0616B
BOLT
€ 2.50
6-2
0910306234
ref: 6-2
BOLT(6X16)
€ 2.50
7
6311437F00
ref: 7
CUSHION,RR FENDER NO.1
€ 14.00
8
6311437F10
ref: 8
CUSHION,RR FENDER NO.2
€ 5.00
9
6311437F20
ref: 9
CUSHION,RR FENDER NO.3
€ 8.00
10-1
0981300039
ref: 10-1
SPANNER,OPEN
€ 8.00
10-2
0981300134
ref: 10-2
OPEN SPANNER(6.4X6.8)
€ 8.00
11-1
6817536F00GY8
ref: 11-1
TAPE,RR FENDER,R
€ 11.50
11-2
6817536F10GY8
ref: 11-2
TAPE,RR FENDER,R
€ 10.00
11-3
6817536F10CFL
ref: 11-3
TAPE,RR FENDER,R
€ 6.50
12-1
6817636F00GY8
ref: 12-1
TAPE,RR FENDER,L
€ 11.50
12-2
6817636F10GY8
ref: 12-2
TAPE,RR FENDER,L
€ 5.00
12-3
6817636F10CFL
ref: 12-3
TAPE,RR FENDER,L
€ 6.50
13-1
6872113A00GY8
ref: 13-1
EMBLEM,RR
€ 7.50
13-2
6872113A00CFL
ref: 13-2
EMBLEM,SUZUKI
€ 10.00
