AIR CLEANER

RM250 1992 (N) USA (E03)

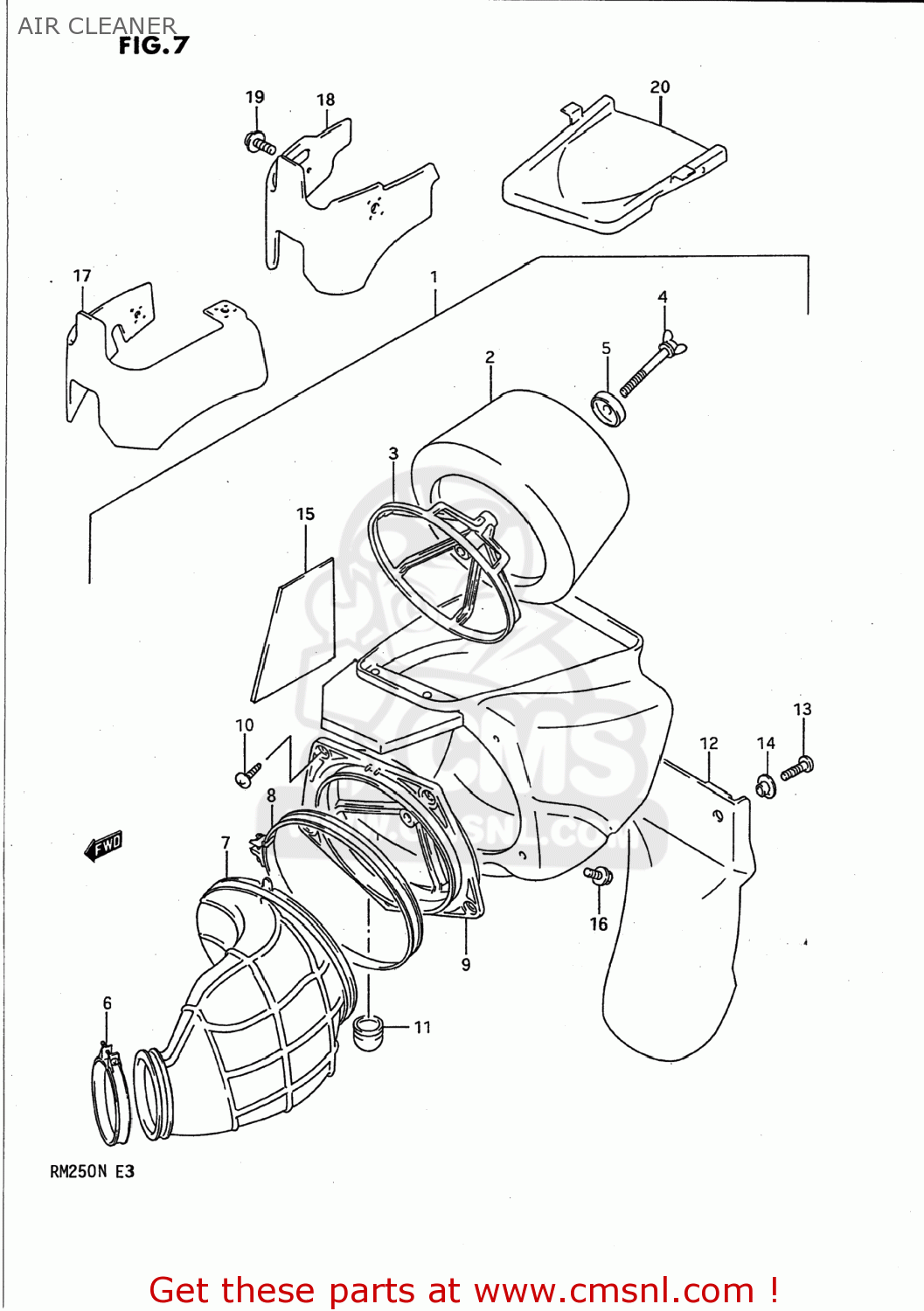

Air cleaner diagram RM250 1992 (N) USA (E03)

AIR CLEANER RM250 1992 (N) USA (E03)

AIR CLEANER RM250 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1370028C00
ref: 1-1

CLEANER ASSEMBLY,AIR

€ 309.00

1-2

1370028C10
ref: 1-2

CLEANER ASSEMBLY,AIR

€ 224.00

1-3

1370028C30
ref: 1-3
13700-28C32

CLEANER ASSEMBLY,AIR

€ 286.00

2-1

1378000B20
ref: 2-1
13780-28C10

FILTER,AIR CLEANER

€ 48.50

2-2

1378028C10
ref: 2-2

FILTER

€ 48.50

3

1379100B20
ref: 3

HOLDER,FILTER

€ 18.50

4

1383102B00
ref: 4

BOLT,WING

€ 4.00

5

1379213A01
ref: 5

WASHER,AIR CLEANER

€ 3.00

6

0940268208
ref: 6

CLAMP

€ 6.00

7-1

1388128C00
ref: 7-1
13881-28C01

TUBE,AIR CLEANER OUTLET

€ 50.00

7-2

1388128C20
ref: 7-2

TUBE,OUTLET

€ 37.00

8-1

1382601B20
ref: 8-1
13826-43D00

CLAMP

€ 9.00

8-2

1382601B21
ref: 8-2
13826-43D00

CLAMP

€ 9.00

9

1379001B21
ref: 9
13790-05D00

HOLDER,FILTER

€ 26.50

10

0324205124
ref: 10
03241-0512A

SCREW

€ 1.50

11

1387800B20
ref: 11

TUBE,DRAIN

€ 8.50

12

1373801B00
ref: 12

GUARD,MUD

€ 19.00

13

0214206167
ref: 13

SCREW

€ 2.00

14

1383802B00
ref: 14

COLLAR

€ 2.50

15

1381528C30
ref: 15
13815-28C31

TRAP,HEAT

€ 10.50

16

0151706205
ref: 16
01550-0620A

BOLT

€ 2.50

17

1373927C00
ref: 17

GUARD,MUD,C

€ 9.50

18-1

1373905D00
ref: 18-1
13739-43D00

GUARD,MUD

€ 14.00

18-2

1373943D00
ref: 18-2

GUARD,MUD

€ 14.00

19

0913606004
ref: 19

SCREW(6X12)

€ 2.00

20

1374127C10
ref: 20

CAP,AIR CLEANER

€ 17.50
