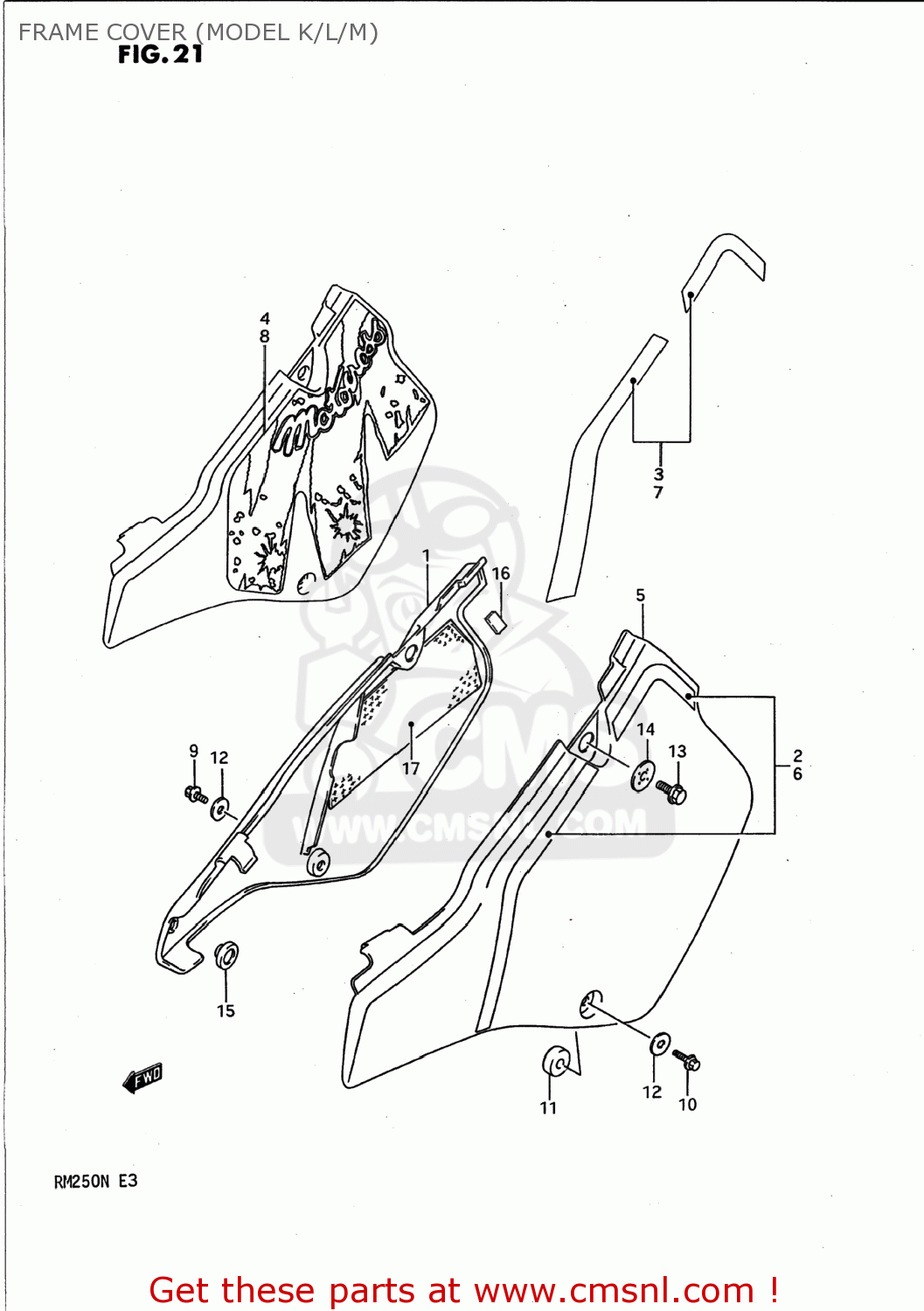

FRAME COVER (MODEL K/L/M)

ref

part #

description

quantity

1-1

4711128C0025Y
ref: 1-1

COVER,FRAME,R(YELLOW)

€ 45.50

1-2

4711128C0030H
ref: 1-2

COVER,FRAME,RIGHT

€ 0.00

2

6813228C0033N
ref: 2

EMBLEM,FRAME COVER,RIGHT (BLUE)

€ 12.50

3

6813228C1034S
ref: 3

TAPE SET,FRM COVER NO.PL,R

€ 14.50

4

6813228C300WN
ref: 4

EMBLEM,FRAME COVER,RIGHT

€ 0.00

5-1

4721127C0025Y
ref: 5-1

COVER,FRAME,L(YELLOW)

€ 44.00

5-2

4721127C0030H
ref: 5-2

COVER,FRAME,L(WHITE)

€ 43.00

6

6814227C0033N
ref: 6
68142-27C10-34S

EMBLEM,FRAME COVER

€ 14.00

7

6814227C1034S
ref: 7

TAPE SET,FRAME COVER,LEFT (B

€ 14.00

8

6814227C300WN
ref: 8

TAPE SET,FRAME COVER NO

€ 0.00

9

0154706127
ref: 9

BOLT

€ 2.00

10-1

0154706257
ref: 10-1

BOLT

€ 2.50

10-2

0154706167
ref: 10-2

BOLT

€ 2.00

11

0918006215
ref: 11

SPACER(6.5X20X9)

€ 5.00

12

0916806027
ref: 12

GASKET(6.5X20X1.5) (NAS)

€ 3.50

13

0151708207
ref: 13
01550-08207

BOLT

€ 3.00

14

0916908045
ref: 14

WASHER

€ 2.00

15-1

0932110018
ref: 15-1

CUSHION

€ 5.00

15-2

0932110024
ref: 15-2

CUSHION

€ 8.50

16

4716128C00
ref: 16

CUSHION,FRAME COVER,REAR

€ 3.50

17-1

4716628C00
ref: 17-1
47166-28C03

SHIELD,FRAME COVER,RIGHT

€ 12.50

17-2

4716628C02
ref: 17-2
47166-28C03

SHIELD,FRAME COVER,RIGHT

€ 12.50

17-3

4716628C03
ref: 17-3

SHIELD,FRAME COVER,RIGHT

€ 12.50

17-3

4716628C03
ref: 17-3

SHIELD,FRAME COVER,RIGHT

€ 12.50
