HANDLE SWITCH (MODEL N)

RM250 1992 (N) USA (E03)

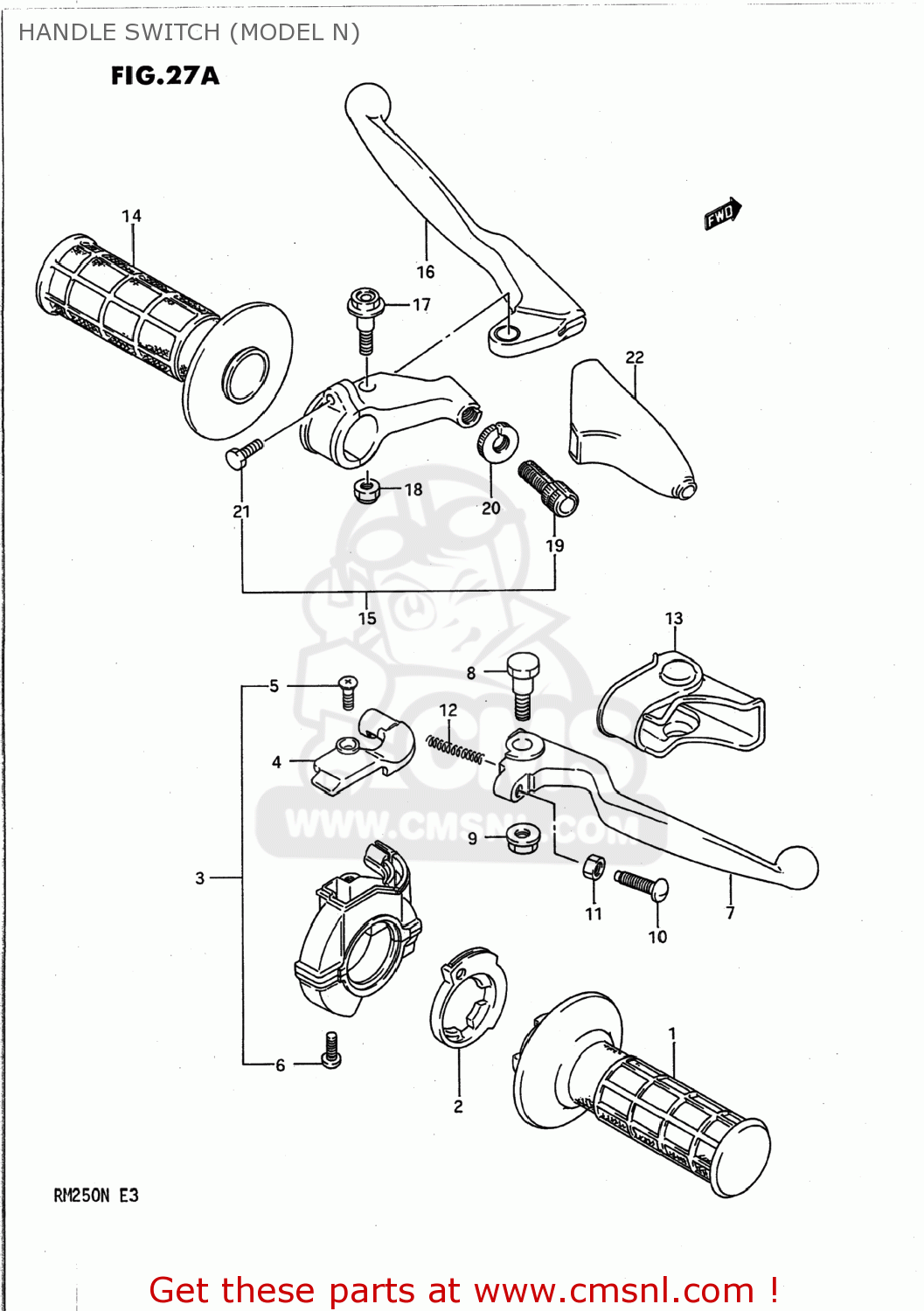

Handle switch (model n) diagram RM250 1992 (N) USA (E03)

HANDLE SWITCH (MODEL N) RM250 1992 (N) USA (E03)

HANDLE SWITCH (MODEL N) RM250 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711027C00
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711414301
ref: 2

ROTOR,THROTTLE GRIP

€ 6.50

3

5710014302
ref: 3

CASE ASSY,THROTTLE

€ 57.50

4

5712914302
ref: 4

COVER,THROTTLE CASE

€ 8.50

5

0213204105
ref: 5
02122-0410A

SCREW 4X10

€ 2.50

6

0211205168
ref: 6
02112-05167

SCREW

€ 2.50

7

5742127C00
ref: 7

LEVER,BRAKE

€ 11.00

8

5743114500
ref: 8

BOLT,BRAKE LEVER

€ 4.00

9

5744214500
ref: 9
08316-1006B

NUT,BRAKE LEVER

€ 2.50

10

5743114511
ref: 10

BOLT,ADJUST

€ 3.50

11

0831012055
ref: 11
08310-0005A

NUT ,5MM

€ 2.50

12

5731814502
ref: 12

SPRING,RETURN

€ 3.00

13

5734114501
ref: 13

COVER,BRAKE LEVER

€ 5.00

14

5721127C00
ref: 14

GRIP,L

€ 11.00

15

5750028C00
ref: 15
57500-28C12

LEVER ASSEMBLY,CLUTCH

€ 43.00

16

5762128C00
ref: 16

LEVER,CLUTCH

€ 36.00

17

5743128C00
ref: 17
57431-28C01

BOLT,LEVER

€ 4.50

18

0831921068
ref: 18
08319-2106A

NUT 6MM

€ 2.00

19

5744128C00
ref: 19

ADJUSTER,WIRE

€ 7.50

20

5744228C00
ref: 20

NUT,LOCK

€ 11.50

21

0110705167
ref: 21
01500-0516B

BOLT

€ 1.50

22

5734140001
ref: 22
57341-40002

COVER,CLUTCH LEVER

€ 7.50
