FRONT DAMPER
RM250 1992 (N) USA (E03)

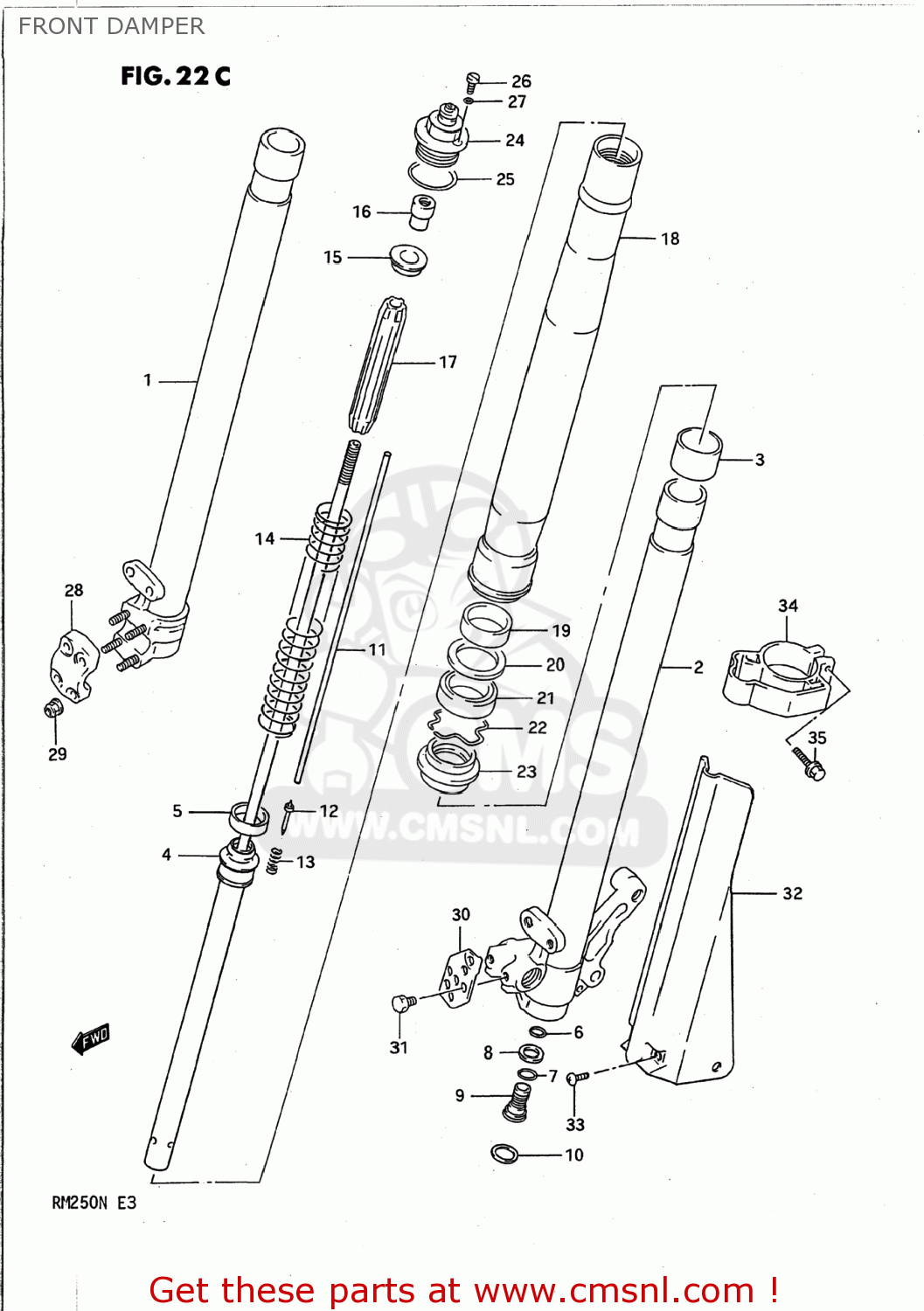

Front damper diagram RM250 1992 (N) USA (E03)
FRONT DAMPER RM250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110328C90
ref:
DAMPER ASSEMBLY,RIGHT
€ 1,377.50
5110428C90
ref:
DAMPER ASSEMBLY,LEFT
€ 1,377.50
1
5111043D00
ref: 1
TUBE,INNER,R
€ 438.50
2
5112043D00
ref: 2
TUBE,INNER,LEFT
€ 375.50
3
5112127C40
ref: 3
BUSH,SLIDE
€ 13.50
4
5119043D00
ref: 4
DAMPER
€ 392.00
5
5117643D00
ref: 5
RING,PISTON
€ 9.50
6
5117443D00
ref: 6
O RING,CTR BOLT UPR
€ 3.00
7
5117743D00
ref: 7
O RING,CTR BOLT
€ 5.50
8
5114843D00
ref: 8
GASKET (NAS)
€ 6.50
9
5117043D10
ref: 9
51170-43D00
BOLT,CENTER
€ 118.50
10
5113343D00
ref: 10
RING,CTR BOLT STOPPER
€ 5.00
11
5119143D00
ref: 11
ROD,PUSH
€ 68.00
12
5119243D00
ref: 12
NEEDLE
€ 10.50
13
5119343D00
ref: 13
51193-28E00
SPRING,PUSH RO
€ 3.50
14
5117128C80
ref: 14
SPRING,MAIN
€ 77.00
15
5117243D00
ref: 15
GUIDE,SPRING
€ 35.00
16
5112943D00
ref: 16
NUT,ROD
€ 19.50
17
5117543D00
ref: 17
SEAT,SPRING UPR
€ 9.00
18
5113043D00
ref: 18
TUBE,OUTER
€ 556.50
19
5116727C40
ref: 19
BUSH,GUIDE
€ 18.50
20
5115827C40
ref: 20
SPACER,SEAL
€ 6.00
21
5115343D00
ref: 21
51153-28E30
OIL SEAL,FRONT FORK
€ 19.00
22
5115627C40
ref: 22
RING,OIL SEAL STOPPER
€ 3.50
23
5117343D00
ref: 23
51173-28E40
SEAL,DUST
€ 22.00
24
5135143D00
ref: 24
BOLT,FORK
€ 117.00
25
5111727C40
ref: 25
O RING
€ 3.50
26
5135727C40
ref: 26
BOLT,PLUG
€ 5.50
27
5135827C40
ref: 27
51117-19C10
O RING, PLUG
€ 2.00
28
5113227C40
ref: 28
HOLDER,AXLE,R
€ 34.00
29
0831931067
ref: 29
NUT
€ 2.50
30
5924827C40
ref: 30
GUIDE,HOSE,L
€ 14.00
31
5924927C40
ref: 31
01500-05087
BOLT, HOSE GUIDE
€ 2.00
32-1
5150143D00
ref: 32-1
51501-29E00
PROTECTOR,FORK,RIGHT
€ 80.00
32-2
5151143D00
ref: 32-2
51511-29E00
PROTECTOR,FORK,LEFT
€ 87.00
33
5862727C40
ref: 33
BOLT,PROTECTOR(6X10)
€ 2.50
34
5121043D00
ref: 34
GUIDE,FORK PROTECTOR
€ 46.50
35
5862843D00
ref: 35
01547-06207
BOLT,PROTECTOR GUIDE,6
€ 2.50
