REAR WHEEL (MODEL L/M)
RM250 1992 (N) USA (E03)

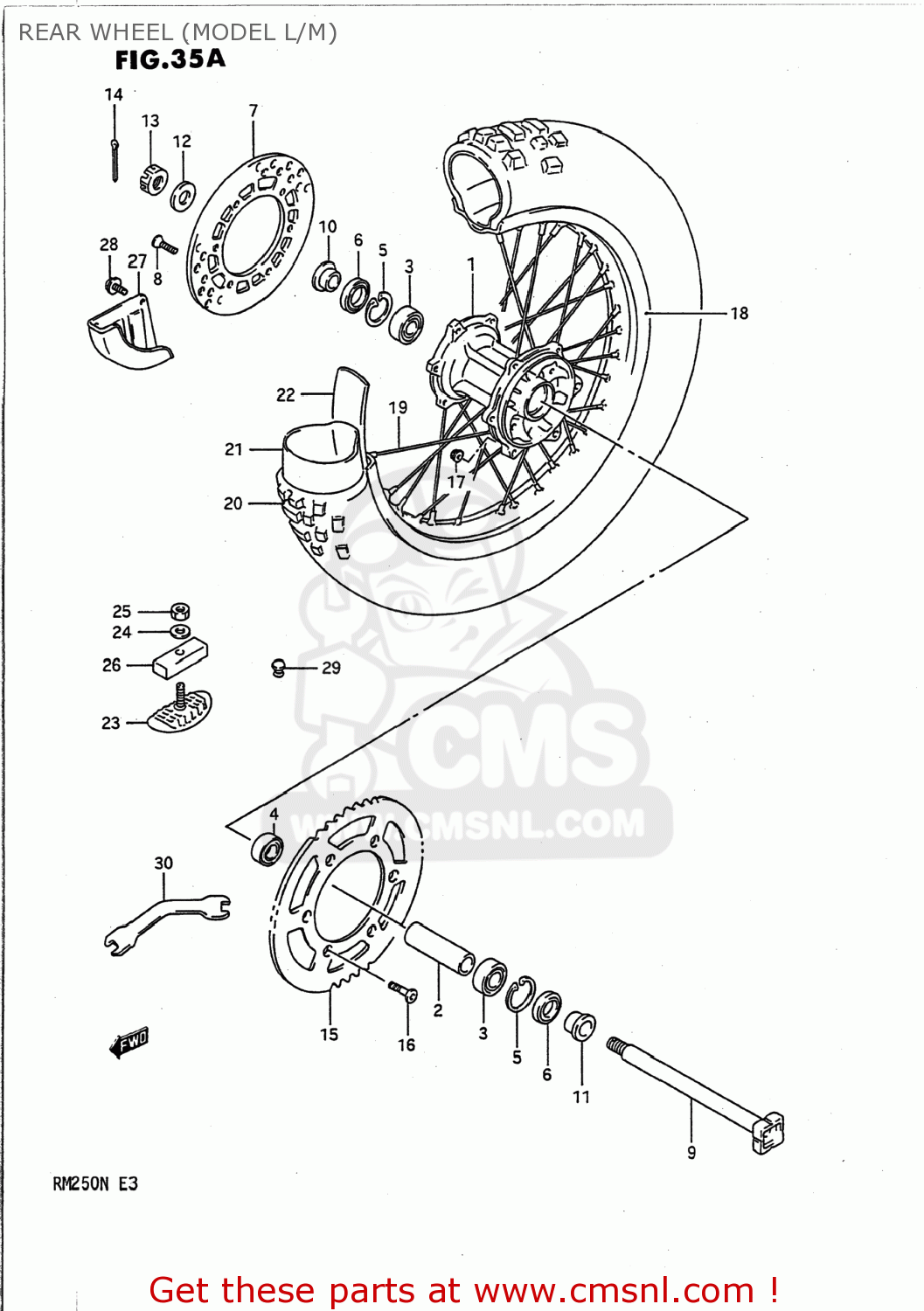

Rear wheel (model l/m) diagram RM250 1992 (N) USA (E03)
REAR WHEEL (MODEL L/M) RM250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411028C01
ref: 1
HUB,RR
€ 352.00
2
6473100B30
ref: 2
SPACER,RR HUB BEARING
€ 15.50
3
0813362047
ref: 3
BEARING WHEEL REAR(20X47X14)
€ 22.50
4
0812360047
ref: 4
08133-60047
BALL BEARING
€ 21.00
5
0833141478
ref: 5
08331-41479
CIRCLIP,14MM
€ 2.50
6
0928326019
ref: 6
SEAL,OIL(26X47X5)
€ 9.50
7-1
6921127C00
ref: 7-1
69211-43D00
DISC,REAR BRAKE
€ 160.00
7-2
6921105D00
ref: 7-2
69211-43D00
DISC,REAR BRAKE
€ 160.00
8
0212206167
ref: 8
SCREW
€ 2.00
9-1
6471127C01
ref: 9-1
AXLE,RR
€ 65.50
9-2
6471127C20
ref: 9-2
64711-27C30
AXLE,REAR
€ 105.00
10
6474100B21
ref: 10
SPACER,RR AXLE,R
€ 12.50
11
6475127C00
ref: 11
SPACER,RR AXLE,L
€ 12.00
12
0916019010
ref: 12
09160-19022
WASHER (19X32X3.2)
€ 5.00
13
0831441188
ref: 13
08314-40187
NUT 18MM
€ 6.00
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15-1
6451140281
ref: 15-1
64511-28E00
SPROCKET,REAR
€ 99.00
15-2
6451140285
ref: 15-2
64511-14D60
SPROCKET,REAR
€ 195.00
15-3
6451140271
ref: 15-3
64511-36E00
SPROCKET,REAR
€ 99.00
15-4
6451140261
ref: 15-4
SPROCKET,RR(NT:51 AL)
€ 87.50
15-5
6451100B01
ref: 15-5
SPROCKET,RR(NT:49)
€ 99.00
15-6
6451100B11
ref: 15-6
64511-00B12
SPROCKET,REAR
€ 86.00
15-7
6451100B21
ref: 15-7
SPROCKET,RR(NT:51)
€ 66.00
16
0912008010
ref: 16
BOLT(8X30.5)
€ 2.50
17-1
0915908034
ref: 17-1
NUT
€ 2.00
17-2
0915908067
ref: 17-2
NUT
€ 5.50
17-2
0915908067
ref: 17-2
NUT
€ 5.50
18
6531128C10
ref: 18
RIM,RR WHEEL(2.15X19 AL)
€ 274.00
19
6532028C10
ref: 19
SPOKE SET,RR WHEEL
€ 97.00
20-1
6511028C20
ref: 20-1
65110-28E11
TIRE
€ 0.00
20-1
6511028C20
ref: 20-1
65110-28E11
TIRE
€ 0.00
20-2
6511028C40
ref: 20-2
65110-28E11
TIRE
€ 0.00
20-2
6511028C40
ref: 20-2
65110-28E11
TIRE
€ 0.00
21
6520028C20
ref: 21
65200-01B30
TUBE ASSY,WHEEL INNER
€ 41.00
22
6526128C20
ref: 22
PROTECTOR,WHL INR TUBE
€ 5.50
23
6527014200
ref: 23
65270-28E00
STOPPER,BEAD
€ 38.00
24
0832211088
ref: 24
08322-01087
WASHER
€ 2.00
25
0831012088
ref: 25
08310-00087
NUT
€ 2.00
26
6527127C00
ref: 26
CUSHION,BEAD STOPPER
€ 5.50
27
6923127C00
ref: 27
COVER,REAR DISC
€ 29.50
28
0151706128
ref: 28
01550-06127
BOLT
€ 2.50
29
0925008013
ref: 29
CAP(OD:12)
€ 2.00
30
0981300039
ref: 30
SPANNER,OPEN
€ 8.00
30
0981300039
ref: 30
SPANNER,OPEN
€ 8.00
