CYLINDER (MODEL M/N)
RM250 1992 (N) USA (E03)

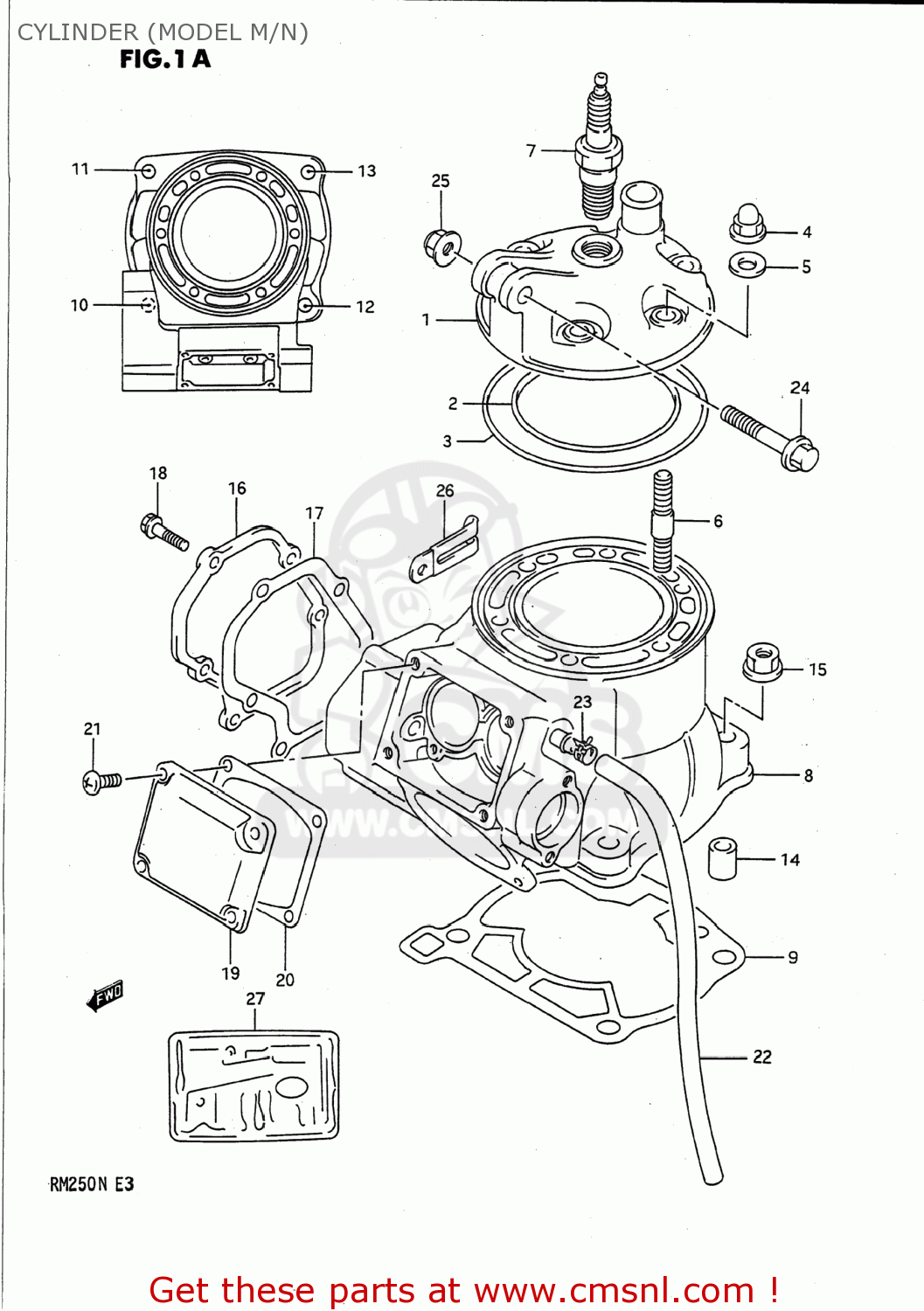

Cylinder (model m/n) diagram RM250 1992 (N) USA (E03)
CYLINDER (MODEL M/N) RM250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111128C20
ref: 1-1
11111-28C30
HEAD,CYLINDER
€ 368.50
1-2
1111128C30
ref: 1-2
HEAD,CYLINDER
€ 368.50
2
1114728C20
ref: 2
O RING,CYLINDER HEAD NO.1
€ 14.00
3
1114828C20
ref: 3
O RING,CYLINDER HEAD NO.2
€ 8.00
4
0915908074
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
09108-08231
BOLT,STUD
€ 4.50
7-1
0948200208
ref: 7-1
PLUG,SPARK(NGK B-8EN)
€ 16.00
7-2
0948200499
ref: 7-2
PLUG,SPARK(R4118S-8)
€ 81.50
8-1
1120028830
ref: 8-1
CYLINDER
€ 506.50
8-2
1120028840
ref: 8-2
11200-28860
CYLINDER
€ 612.50
9-1
1124128C10
ref: 9-1
11241-28C11
GASKET,CYLINDER (NAS)
€ 11.50
9-2
1124128C11
ref: 9-2
GASKET,CYLINDER (NAS)
€ 11.50
10
0142110308
ref: 10
01421-1030A
STUD 10X30
€ 2.50
11
0142110358
ref: 11
01421-1035A
STUD BOLT
€ 2.00
12
0142110408
ref: 12
01421-1040A
STUD BOLT (L:40)
€ 2.00
13
0142110458
ref: 13
01421-10457
STUD BOLT (L:45)
€ 2.50
14
0920613006
ref: 14
09206-13017
PIN
€ 9.00
15
0831616108
ref: 15
08316-10107
NUT
€ 2.00
16
1123128C20
ref: 16
COVER,CYLINDER NO.1
€ 19.00
17
1123328C20
ref: 17
11233-28C21
GASKET,CYLINDER COVER (NAS)
€ 8.00
18
0154706167
ref: 18
BOLT
€ 2.00
19
1124828C20
ref: 19
COVER,CYLINDER NO.2
€ 24.00
20
1123828C00
ref: 20
11238-05D01
GASKET,CYLINDER COVER (NAS)
€ 2.50
21
0211205168
ref: 21
02112-05167
SCREW
€ 2.50
22
0934309501
ref: 22
HOSE
€ 13.50
23
0940112407
ref: 23
09401-12405
CLAMP
€ 3.00
24
0910308043
ref: 24
BOLT(8X45)
€ 4.50
25-1
0915908067
ref: 25-1
NUT
€ 5.50
25-2
0915908034
ref: 25-2
NUT
€ 2.00
26
0940406401
ref: 26
09404-06432
CLAMP L:35
€ 2.50
27-1
1140128820
ref: 27-1
11401-28824
GASKET SET
€ 106.00
27-2
1140128821
ref: 27-2
11401-28824
GASKET SET (NAS)
€ 106.00
