REAR WHEEL (MODEL K)
RM250 1992 (N) USA (E03)

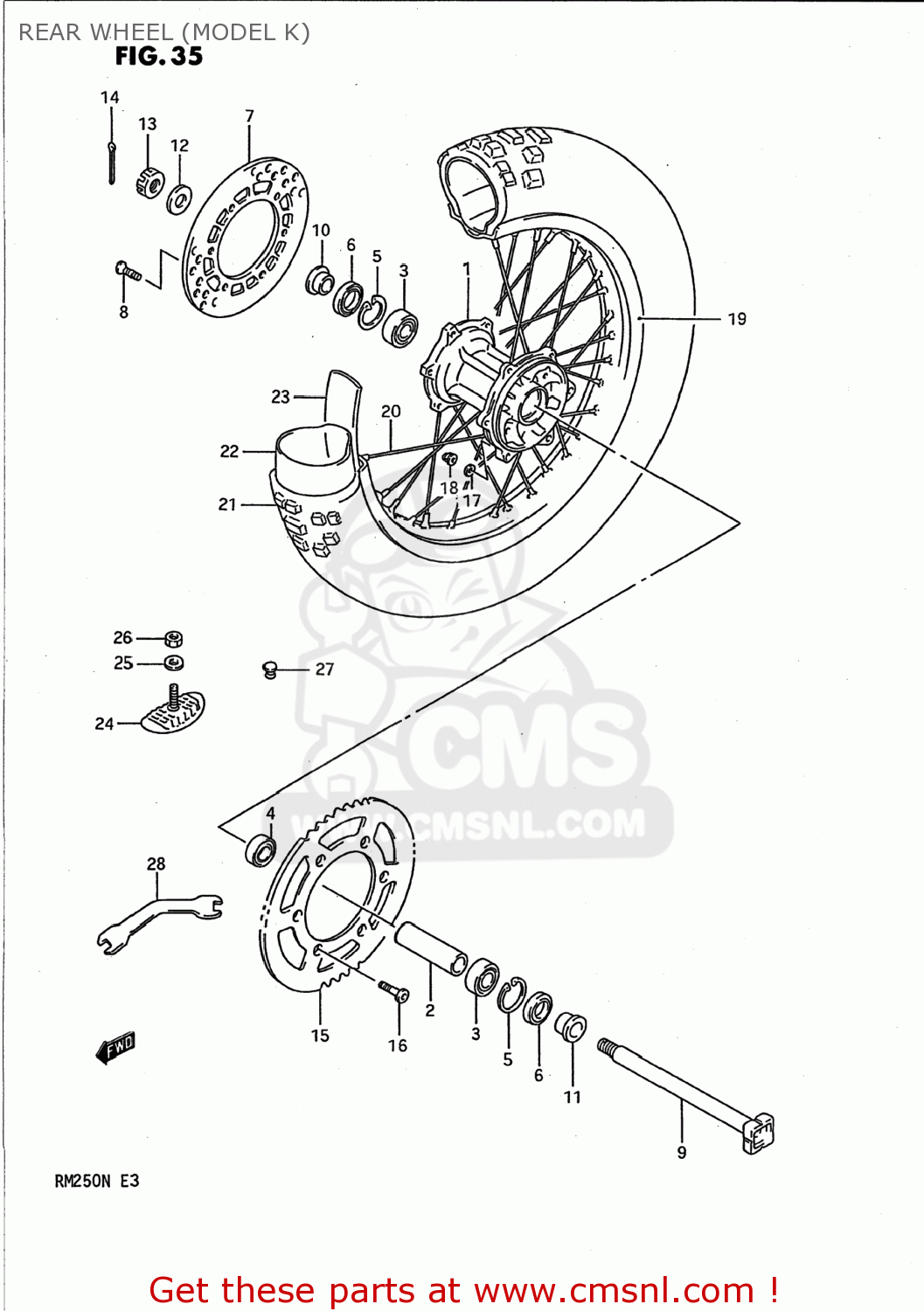

Rear wheel (model k) diagram RM250 1992 (N) USA (E03)
REAR WHEEL (MODEL K) RM250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411028C01
ref: 1
HUB,RR
€ 352.00
2
6473100B30
ref: 2
SPACER,RR HUB BEARING
€ 15.50
3
0813362047
ref: 3
BEARING WHEEL REAR(20X47X14)
€ 22.50
4
0812360047
ref: 4
08133-60047
BALL BEARING
€ 21.00
5
0833141478
ref: 5
08331-41479
CIRCLIP,14MM
€ 2.50
6
0928426003
ref: 6
09283-26019
OIL SEAL
€ 9.50
7
6921127C00
ref: 7
69211-43D00
DISC,REAR BRAKE
€ 160.00
8
0212206167
ref: 8
SCREW
€ 2.00
9
6471127C01
ref: 9
AXLE,RR
€ 65.50
10
6474100B21
ref: 10
SPACER,RR AXLE,R
€ 12.50
11
6475127C00
ref: 11
SPACER,RR AXLE,L
€ 12.00
12
0916019010
ref: 12
09160-19022
WASHER (19X32X3.2)
€ 5.00
13
0831441188
ref: 13
08314-40187
NUT 18MM
€ 6.00
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15-1
6451140281
ref: 15-1
64511-28E00
SPROCKET,REAR
€ 99.00
15-2
6451140285
ref: 15-2
64511-14D60
SPROCKET,REAR
€ 195.00
15-3
6451140271
ref: 15-3
64511-36E00
SPROCKET,REAR
€ 99.00
15-4
6451140261
ref: 15-4
SPROCKET,RR(NT:51 AL)
€ 87.50
15-5
6451100B01
ref: 15-5
SPROCKET,RR(NT:49)
€ 99.00
15-6
6451100B11
ref: 15-6
64511-00B12
SPROCKET,REAR
€ 86.00
15-7
6451100B21
ref: 15-7
SPROCKET,RR(NT:51)
€ 66.00
16
0912008004
ref: 16
SCREW(8X33.5)
€ 3.00
17
0916408011
ref: 17
WASHER
€ 3.50
18
0831931087
ref: 18
NUT
€ 2.50
19
6531128C00
ref: 19
65311-28C01
RIM,REAR WHEEL (2.15X18)(A
€ 351.50
20
6532026C00
ref: 20
SPOKE ASSY,RR WHEEL
€ 94.00
21
6510000B10
ref: 21
TIRE,REAR
€ 0.00
22
6520040430
ref: 22
TUBE,INNER
€ 0.00
23
6526115010
ref: 23
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
24
6527014200
ref: 24
65270-28E00
STOPPER,BEAD
€ 38.00
25
0832211088
ref: 25
08322-01087
WASHER
€ 2.00
26
0831022088
ref: 26
08310-00087
NUT 8MM
€ 2.00
27
0925008013
ref: 27
CAP(OD:12)
€ 2.00
28
0981300039
ref: 28
SPANNER,OPEN
€ 8.00
28
0981300039
ref: 28
SPANNER,OPEN
€ 8.00
28
0981300039
ref: 28
SPANNER,OPEN
€ 8.00
