CARBURETOR (MODEL W/X/Y)
RM250 1998 (W) USA (E03)

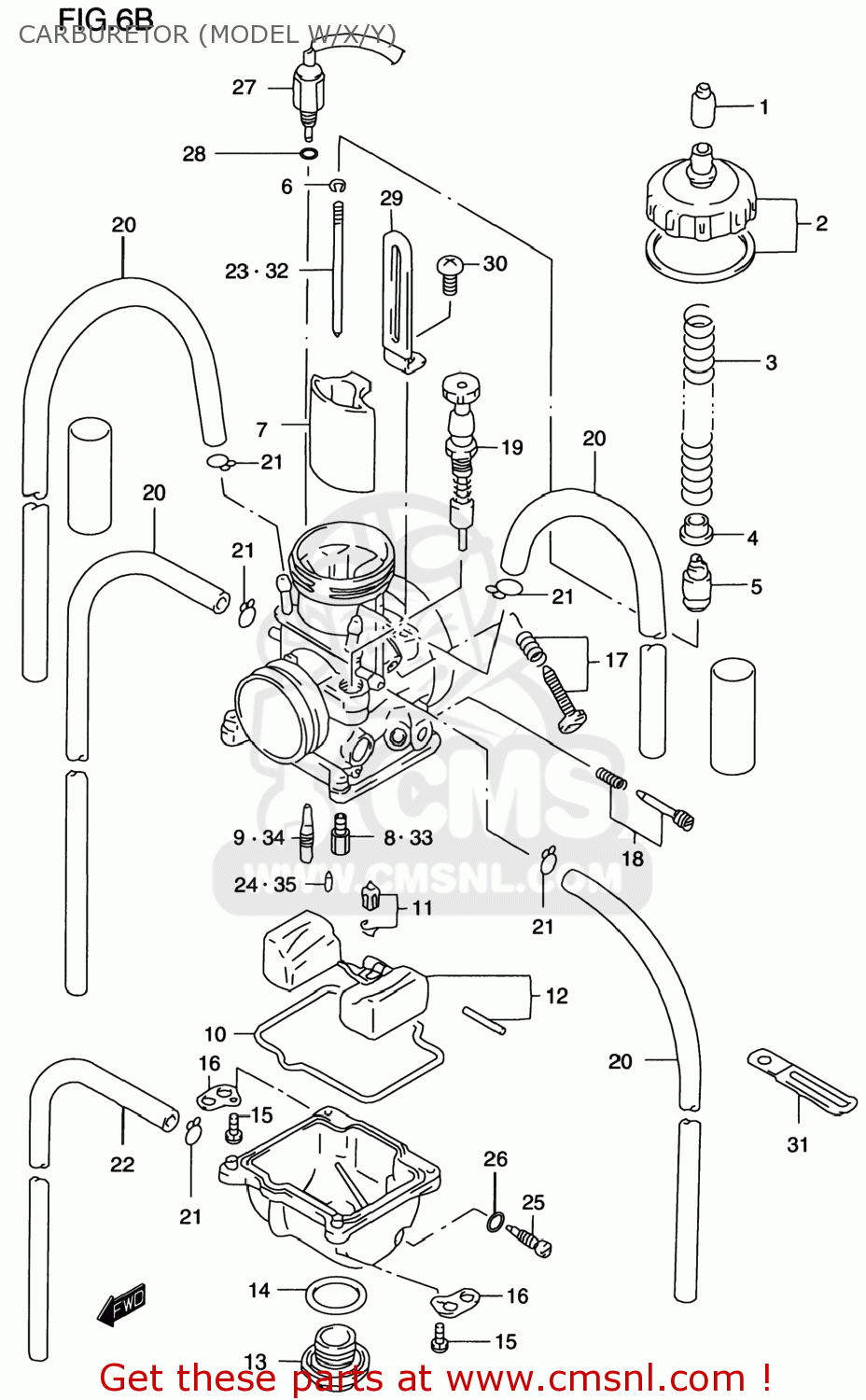

Carburetor (model w/x/y) diagram RM250 1998 (W) USA (E03)
CARBURETOR (MODEL W/X/Y) RM250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320037E20
ref:
CARBURETOR ASSY
€ 352.00
1320037E30
ref:
CARBURETOR ASSY
€ 335.00
1320037E40
ref:
CARBURETOR ASSY
€ 332.50
1
1368143D30
ref: 1
CAP,CARBURETOR
€ 7.50
2
1326043D30
ref: 2
CAP SET,TOP
€ 43.50
3
1357343D30
ref: 3
SPRING,THROTTLE VALVE
€ 9.00
4
1342443D30
ref: 4
COLLAR,THROTTLE VALVE
€ 5.00
5
1358143D30
ref: 5
HOLDER,CABLE
€ 19.00
6
1339428E00
ref: 6
CLIP,NEEDLE
€ 3.50
7-1
1355137E00
ref: 7-1
VALVE,THROTTLE
€ 114.50
7-2
1355136E00
ref: 7-2
VALVE,THROTTLE
€ 106.00
8-1
0949132011
ref: 8-1
JET,MAIN(162)
€ 13.00
8-2
0949131013
ref: 8-2
JET,MAIN(158)
€ 13.00
9-1
0949245032
ref: 9-1
JET,PILOT(45)
€ 9.00
9-2
0949242019
ref: 9-2
JET,SLOW(42)
€ 12.50
10
1369644E00
ref: 10
GASKET,FLOAT CAHMBER
€ 11.00
11
1337043D30
ref: 11
VALVE SET,FLOAT
€ 40.50
12
1324028E00
ref: 12
FLOAT SET
€ 49.00
13
1324728E00
ref: 13
BOLT,DRAIN
€ 15.00
14
1324628E00
ref: 14
O RING
€ 3.50
15
0211234163
ref: 15
02112-3416B
SCREW
€ 3.00
16
1369336E00
ref: 16
PLATE
€ 4.50
17
1327043D30
ref: 17
SCREW SET,STOP
€ 14.50
18
1328043D30
ref: 18
SCREW SET,AIR
€ 18.50
19-1
1341043D30
ref: 19-1
STARTER VALVE
€ 64.50
19-2
1341036E40
ref: 19-2
STARTER VALVE
€ 53.50
20
1368636E00
ref: 20
HOSE(4X7X620)
€ 7.50
20
1368636E00
ref: 20
HOSE(4X7X620)
€ 7.50
20
1368636E00
ref: 20
HOSE(4X7X620)
€ 7.50
20
1368636E00
ref: 20
HOSE(4X7X620)
€ 7.50
21
0940106101
ref: 21
CLIP
€ 2.50
22
0935135653600
ref: 22
HOSE(3.5X6.5X600)
€ 5.50
23-1
1338337EK0
ref: 23-1
NEEDLE(N1EI)
€ 12.00
23-2
1338337EH0
ref: 23-2
NEEDLE(N1EG)
€ 11.00
23-3
1338337EQ0
ref: 23-3
NEEDLE,JET(N3WK)
€ 15.50
24-1
0949260018
ref: 24-1
JET,POWER(60)
€ 10.00
24-2
0949255019
ref: 24-2
JET,POWER(55)
€ 13.00
25
1324744E00
ref: 25
SCREW,DRAIN
€ 4.50
26
1325644E00
ref: 26
O RING
€ 2.00
27-1
1316037E00
ref: 27-1
13160-37E01
SOLENOID ASSEMBLY
€ 105.50
27-2
1316037E01
ref: 27-2
SOLENOID ASSY
€ 105.50
28
1345337E00
ref: 28
O RING
€ 4.00
29
1345137E00
ref: 29
CLAMP
€ 6.00
30
1345237E00
ref: 30
SCREW
€ 2.00
31-1
0940406429
ref: 31-1
CLAMP(L:45)
€ 2.50
31-2
0940406432
ref: 31-2
CLAMP(L:65)
€ 2.50
32-1
1338337EC0
ref: 32-1
NEEDLE(N0ZG)
€ 12.50
32-10
1338337EK0
ref: 32-10
NEEDLE(N1EI)
€ 12.00
32-11
1338337EL0
ref: 32-11
NEEDLE(N1EJ)
€ 9.50
32-12
1338337EM0
ref: 32-12
NEEDLE(N1EK)
€ 12.00
32-13
1338337E50
ref: 32-13
NEEDLE (N1EE)
€ 13.00
32-14
1338337E60
ref: 32-14
NEEDLE (N1EF)
€ 10.50
32-15
1338337EN0
ref: 32-15
NEEDLE, JET (N3WW)
€ 10.50
32-16
1338337EP0
ref: 32-16
NEEDLE,JET(N3WJ)
€ 13.00
32-17
1338337EQ0
ref: 32-17
NEEDLE,JET(N3WK)
€ 15.50
32-18
1338337ER0
ref: 32-18
NEEDLE,JET(N3WL)
€ 11.50
32-19
1338337ES0
ref: 32-19
NEEDLE,JET(N3WM)
€ 13.00
32-2
1338337ED0
ref: 32-2
NEEDLE(N0ZH)
€ 10.00
32-20
1338336EA0
ref: 32-20
NEEDLE,JET(N3YW)
€ 13.00
32-21
1338336EB0
ref: 32-21
NEEDLE,JET(N3YJ)
€ 13.00
32-22
1338336EC0
ref: 32-22
NEEDLE,JET(N3YK)
€ 13.00
32-23
1338336ED0
ref: 32-23
NEEDLE,JET(N3YL)
€ 13.00
32-24
1338336EE0
ref: 32-24
NEEDLE JET (N3YM)
€ 11.50
32-3
1338337EE0
ref: 32-3
NEEDLE(N0ZI)
€ 12.00
32-4
1338337EF0
ref: 32-4
NEEDLE(N0ZJ)
€ 12.00
32-5
1338337EG0
ref: 32-5
NEEDLE(N0ZK)
€ 13.00
32-6
1338337EA0
ref: 32-6
NEEDLE(N0ZE)
€ 9.50
32-7
1338337EB0
ref: 32-7
NEEDLE(N0ZF)
€ 9.50
32-8
1338337EH0
ref: 32-8
NEEDLE(N1EG)
€ 11.00
32-9
1338337EJ0
ref: 32-9
NEEDLE (N1EH)
€ 10.50
33-1
0949130018
ref: 33-1
JET,MAIN(150)
€ 13.00
33-10
0949134011
ref: 33-10
JET,MAIN(172)
€ 12.50
33-11
0949135009
ref: 33-11
JET,MAIN(175)
€ 15.50
33-12
0949135010
ref: 33-12
JET,MAIN(178)
€ 15.50
33-13
0949136008
ref: 33-13
JET,MAIN(180)
€ 15.50
33-14
0949137008
ref: 33-14
JET,MAIN(185)
€ 15.50
33-15
0949138011
ref: 33-15
JET,MAIN(190)
€ 15.50
33-16
0949139001
ref: 33-16
JET,MAIN(195)
€ 12.50
33-17
0949140013
ref: 33-17
JET,MAIN(200)
€ 12.50
33-18
0949141001
ref: 33-18
JET,MAIN(205)
€ 8.50
33-19
0949142006
ref: 33-19
JET,MAIN(210)
€ 8.50
33-2
0949130019
ref: 33-2
JET,MAIN(152)
€ 13.00
33-3
0949131012
ref: 33-3
JET,MAIN(155)
€ 13.00
33-4
0949131013
ref: 33-4
JET,MAIN(158)
€ 13.00
33-5
0949132010
ref: 33-5
JET,MAIN(160)
€ 13.00
33-6
0949132011
ref: 33-6
JET,MAIN(162)
€ 13.00
33-7
0949133009
ref: 33-7
JET,MAIN(165)
€ 9.00
33-8
0949133010
ref: 33-8
JET,MAIN(168)
€ 12.50
33-9
0949134010
ref: 33-9
JET,MAIN(170)
€ 12.50
34-1
0949235019
ref: 34-1
JET,SLOW(35)
€ 13.00
34-10
0949260016
ref: 34-10
JET,SLOW(60)
€ 12.50
34-2
0949240022
ref: 34-2
JET,SLOW(40)
€ 15.50
34-3
0949242019
ref: 34-3
JET,SLOW(42)
€ 12.50
34-4
0949245032
ref: 34-4
JET,PILOT(45)
€ 9.00
34-5
0949248013
ref: 34-5
JET,SLOW(48)
€ 9.50
34-6
0949250023
ref: 34-6
JET,SLOW(50)
€ 11.50
34-7
0949252011
ref: 34-7
JET,SLOW(52)
€ 11.50
34-8
0949255017
ref: 34-8
JET,SLOW(55)
€ 11.50
34-9
0949258001
ref: 34-9
JET,PILOT(58)
€ 9.50
35-1
0949250025
ref: 35-1
JET,POWER(50)
€ 9.50
35-2
0949255019
ref: 35-2
JET,POWER(55)
€ 13.00
35-3
0949260018
ref: 35-3
JET,POWER(60)
€ 10.00
