CYLINDER (MODEL T/V/W)
RM250 1998 (W) USA (E03)

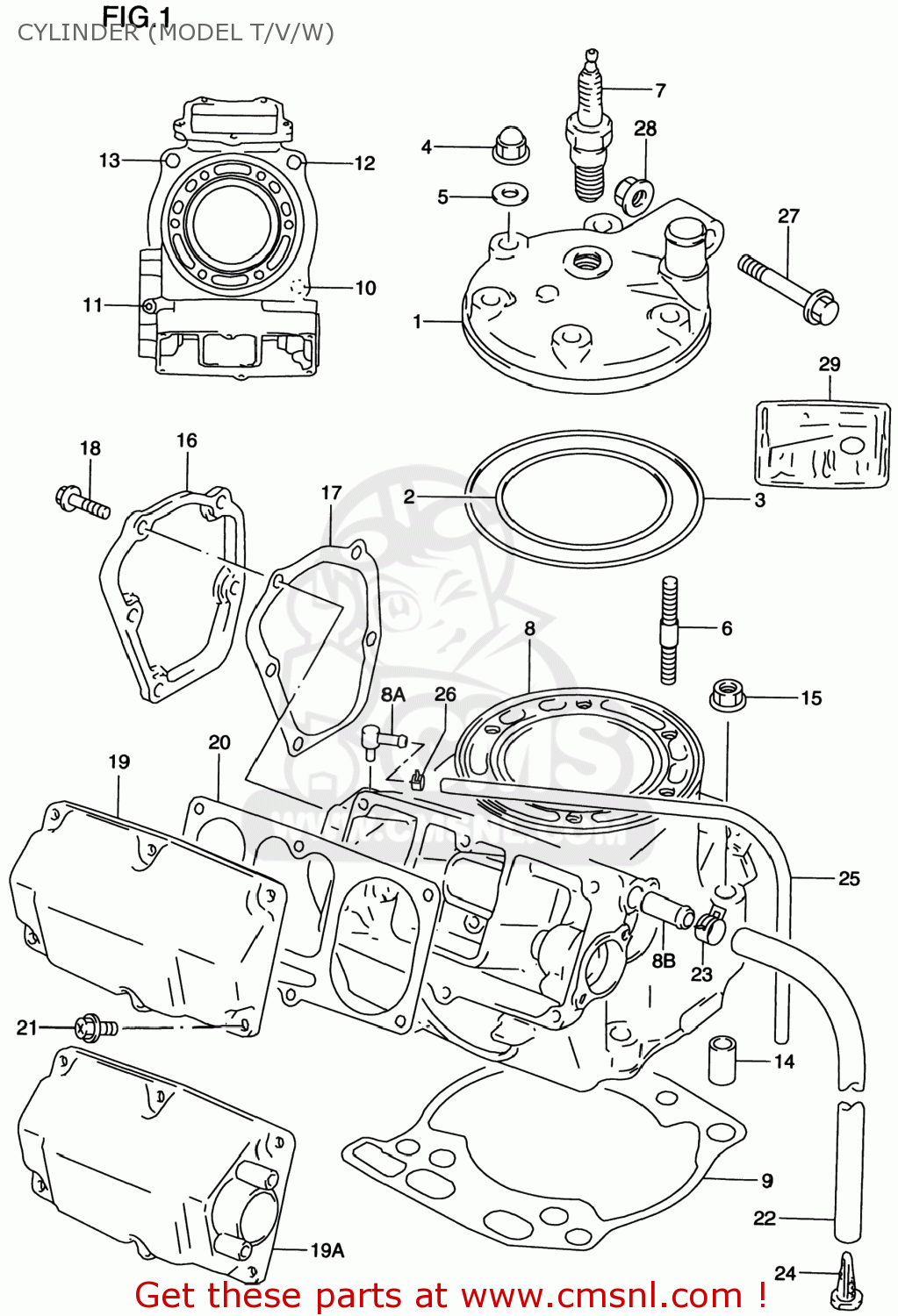

Cylinder (model t/v/w) diagram RM250 1998 (W) USA (E03)
CYLINDER (MODEL T/V/W) RM250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111137E01
ref: 1-1
HEAD,CYLINDER
€ 157.00
1-2
1111137E10
ref: 1-2
11111-37E11
HEAD,CYLINDER
€ 157.50
1-3
1111137E21
ref: 1-3
11111-37E22
HEAD,CYLINDER
€ 142.50
2
1114728C20
ref: 2
O RING,CYLINDER HEAD NO.1
€ 14.00
3
1114828C20
ref: 3
O RING,CYLINDER HEAD NO.2
€ 8.00
4-1
0915908074
ref: 4-1
NUT
€ 7.00
4-2
0915908049
ref: 4-2
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
09108-08231
BOLT,STUD
€ 4.50
7
0948200511
ref: 7
PLUG,SPARK(R6918B-7)
€ 81.50
8A
1691009401
ref: 8A
UNION,BREATHER HOSE
€ 18.00
8B
0936410003
ref: 8B
UNION
€ 7.00
8B
0936410003
ref: 8B
UNION
€ 7.00
8-1
1120037810
ref: 8-1
CYLINDER SET
€ 654.50
8-2
1120037820
ref: 8-2
CYLINDER SET
€ 609.00
8-3
1120037830
ref: 8-3
CYLINDER SET
€ 626.00
9
1124137E00
ref: 9
GASKET,CYLINDER (NAS)
€ 8.50
10
0142110308
ref: 10
01421-1030A
STUD 10X30
€ 2.50
11
0142110408
ref: 11
01421-1040A
STUD BOLT (L:40)
€ 2.00
12-1
0142110503
ref: 12-1
01421-1050A
STUD,M10X1.25X
€ 2.50
12-2
0142110708
ref: 12-2
STUD BOLT (L:70)
€ 3.00
13-1
0142110603
ref: 13-1
01421-1060A
STUD BOLT (L:60)
€ 18.00
13-2
0142110808
ref: 13-2
STUD BOLT
€ 4.50
14
0920613017
ref: 14
PIN(13X10.4X20)
€ 9.00
15
0831610103
ref: 15
08316-1010B
NUT
€ 2.00
16-1
1123137E00
ref: 16-1
11231-37E01
COVER,CYLINDER NO.1
€ 24.50
16-2
1123137E01
ref: 16-2
COVER,CYLINDER NO.1
€ 24.50
17
1123337E00
ref: 17
GASKET,CYLINDER COVER NO.1 (NAS)
€ 4.50
18
0154706163
ref: 18
01547-0616B
BOLT
€ 2.50
19
1124837E00
ref: 19
COVER,CYLINDER NO.2
€ 18.00
19A
1124837E10
ref: 19A
COVER,CYLINDER NO.2
€ 22.50
20
1123837E00
ref: 20
GASKET,CYLINDER COVER NO.2
€ 4.50
21
0216205163
ref: 21
02162-0516A
BOLT
€ 1.50
22
0934309501
ref: 22
HOSE
€ 13.50
23
0940112405
ref: 23
CLIP
€ 3.00
24
1127128E20
ref: 24
FILTER,EXH VALVE BREATHER HOSE
€ 12.00
25
0935250823600
ref: 25
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
26
0940108401
ref: 26
CLIP
€ 1.50
27
0910310126
ref: 27
BOLT(10X48)
€ 4.50
28
0915910060
ref: 28
NUT
€ 2.00
29
1140037870
ref: 29
11400-37872
GASKET SET (NAS)
€ 83.00
