FRAME
RM250 1998 (W) USA (E03)

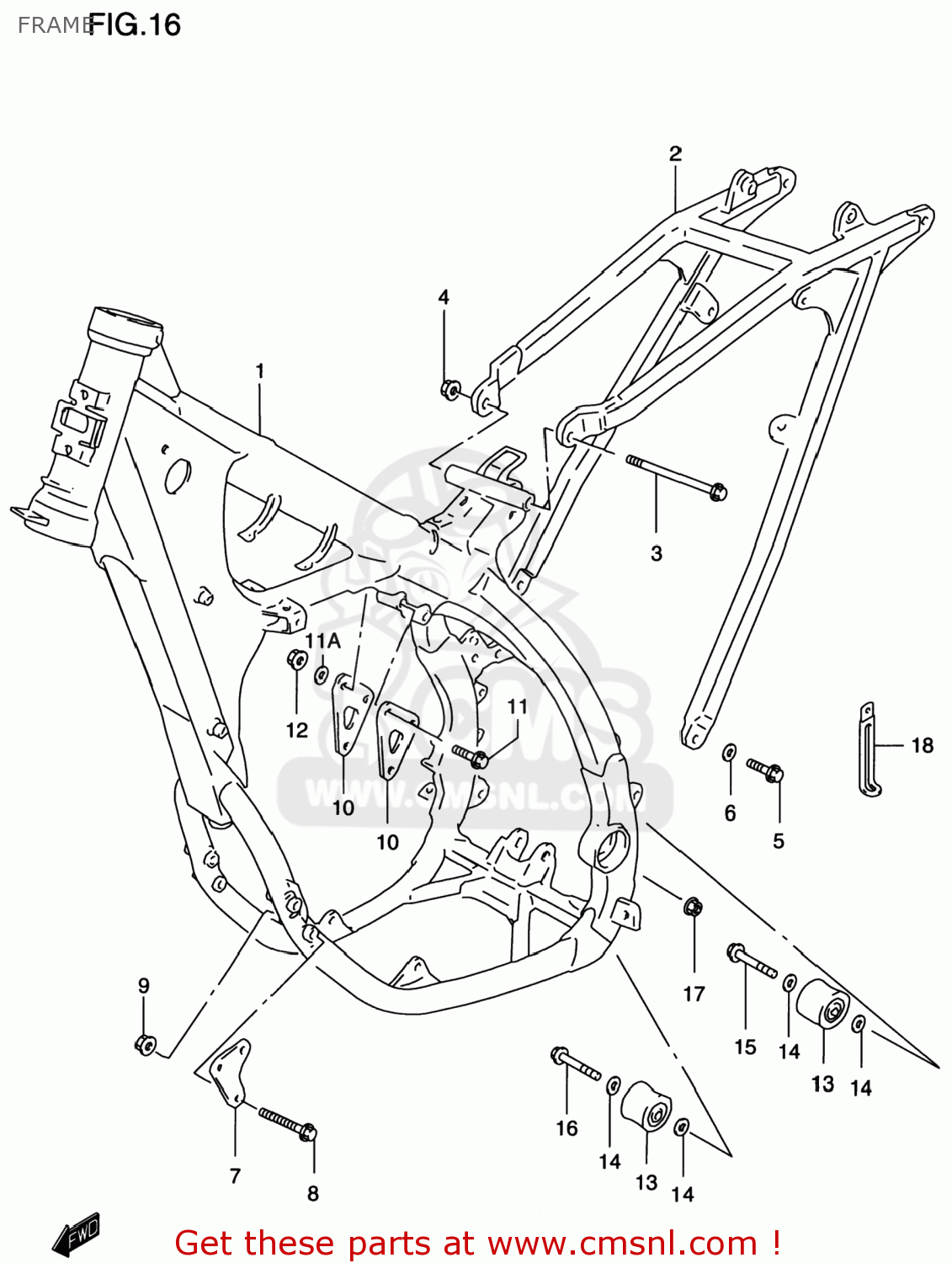

Frame diagram RM250 1998 (W) USA (E03)
FRAME RM250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110037E0024K
ref: 1-1
FRAME COMP
€ 1,444.50
1-2
4110037E1024K
ref: 1-2
FRAME(CHARCOAL)
€ 1,056.50
1-3
4110037E2024K
ref: 1-3
FRAME COMP
€ 1,176.00
1-4
4110037E3024K
ref: 1-4
FRAME(CHARCOAL)
€ 910.00
1-5
4110037E4024K
ref: 1-5
FRAME(CHARCOAL)
€ 1,172.50
2
4120036E00
ref: 2
RAIL,SEAT
€ 580.50
3
0910308109
ref: 3
BOLT(8X120)
€ 3.50
4
0915908034
ref: 4
NUT
€ 2.00
5
0910408019
ref: 5
09104-08035
BOLT 8X16
€ 2.00
6-1
0832201087
ref: 6-1
WASHER
€ 2.00
6-2
0916008122
ref: 6-2
WASHER(8.5X18X3.20)
€ 2.00
7
4199137E00
ref: 7
PLATE,ENGINE MOUNTING
€ 28.00
8
0910308170
ref: 8
09103-08339
BOLT
€ 3.50
9-1
0915908034
ref: 9-1
NUT
€ 2.00
9-2
0915908067
ref: 9-2
NUT
€ 5.50
10
4199337E00
ref: 10
PLATE,ENG MTG UPR
€ 20.00
11
0910308043
ref: 11
BOLT(8X45)
€ 4.50
11A
0916408011
ref: 11A
WASHER
€ 3.50
12
0915908067
ref: 12
NUT
€ 5.50
13
4391027C11
ref: 13
ROLLER,CHAIN
€ 36.50
14-1
0821108121
ref: 14-1
WASHER
€ 2.00
14-2
0918108111
ref: 14-2
SHIM(8X12X1)
€ 2.00
15
0910308083
ref: 15
BOLT(8X41)
€ 3.50
16
0910308043
ref: 16
BOLT(8X45)
€ 4.50
17
0831931087
ref: 17
NUT
€ 2.50
18-1
0940408418
ref: 18-1
CLAMP(L:65)
€ 3.50
18-2
0940408206
ref: 18-2
CLAMP(L:65 T:0.8)
€ 3.50
