MUFFLER
RM250 1998 (W) USA (E03)

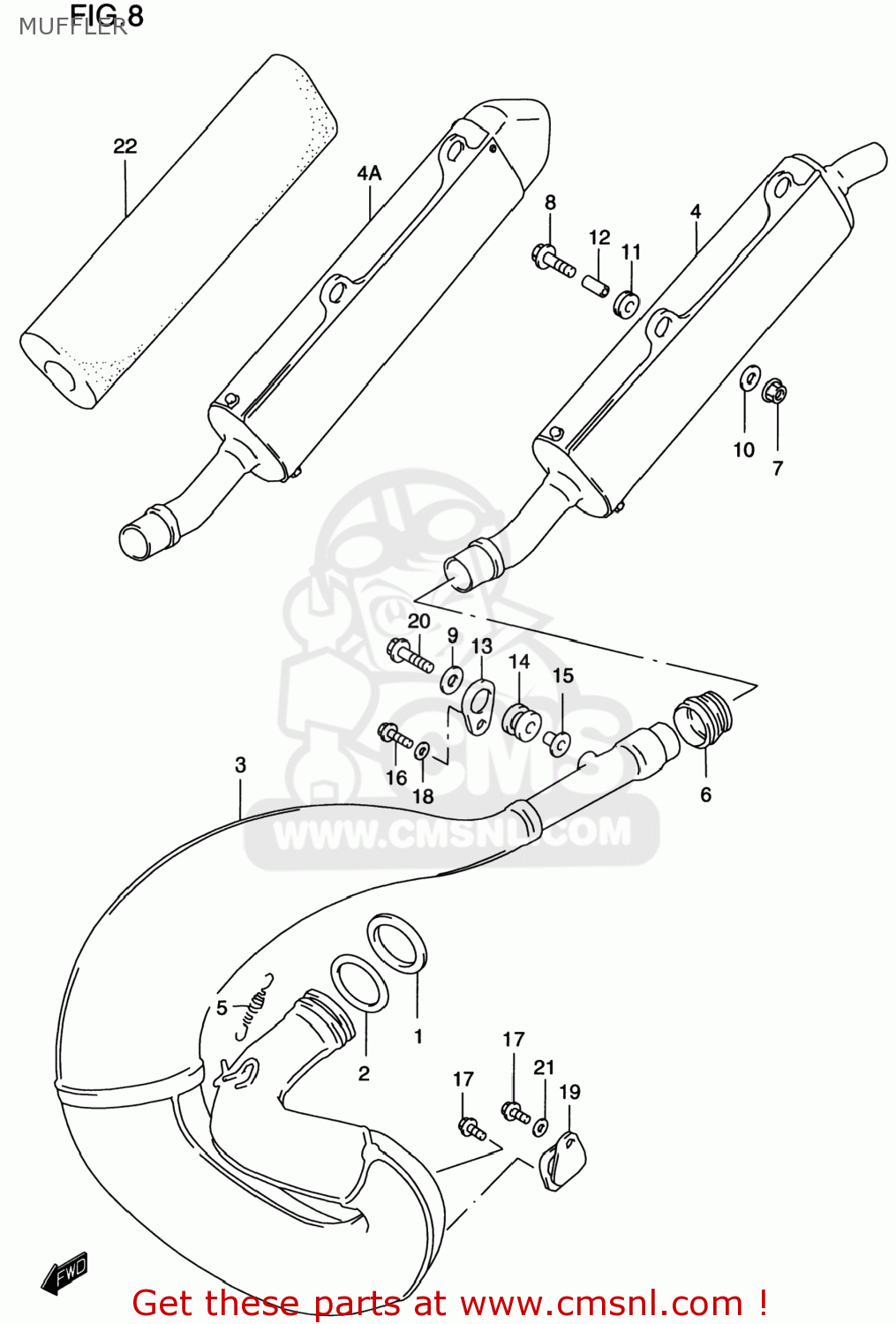

Muffler diagram RM250 1998 (W) USA (E03)
MUFFLER RM250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1417228C30
ref: 1-1
WASHER,EXHAUST PIPE
€ 2.00
1-2
1417237E00
ref: 1-2
WASHER,EXHAUST PIPE
€ 4.00
1-3
1417228C30
ref: 1-3
WASHER,EXHAUST PIPE
€ 2.00
2
1417128C30
ref: 2
O RING,EXHAUST PIPE
€ 19.00
3-1
1431037E00
ref: 3-1
BODY,MUFFLER 1ST
€ 259.00
3-2
1431037E10
ref: 3-2
BODY,MUFFLER 1ST
€ 419.00
3-3
1431037E20
ref: 3-3
BODY,MUFFLER 1ST
€ 246.50
3-4
1431037E30
ref: 3-4
BODY,MUFFLER 1ST
€ 246.50
4-1
1433037E00
ref: 4-1
14330-37E03
BODY,MUFFLER,SECOND
€ 321.00
4A-1
1433037E31
ref: 4A-1
BODY,MUFFLER 2ND
€ 131.50
4-2
1433037E02
ref: 4-2
14330-37E03
BODY,MUFFLER,SECOND
€ 321.00
4A-2
1433037E20
ref: 4A-2
BODY,MUFFLER 2ND
€ 230.50
4-3
1433037E03
ref: 4-3
BODY,MUFFLER 2ND
€ 321.00
5
0944312042
ref: 5
09443-12042-XC0
SPRING
€ 10.50
6
1477128C02
ref: 6
CONNECTOR,MUFFLER
€ 52.50
7
0831931067
ref: 7
NUT
€ 2.50
8
0154706303
ref: 8
01547-0630B
BOLT,G/S SWITC
€ 3.00
9-1
0916006002
ref: 9-1
09160-06114
WASHER (6.5X24X1.2)
€ 2.00
9-2
0916006114
ref: 9-2
WASHER(6.5X24X1.2)
€ 2.00
10-1
0916006002
ref: 10-1
09160-06114
WASHER (6.5X24X1.2)
€ 2.00
10-2
0916006114
ref: 10-2
WASHER(6.5X24X1.2)
€ 2.00
11-1
0932011008
ref: 11-1
CUSHION
€ 3.00
11-2
0932011015
ref: 11-2
09320-11008
CUSHION
€ 3.00
12
0918006120
ref: 12
SPACER(6.5X11.5X12)
€ 2.50
13
1476127C00
ref: 13
PLATE,MUFFLER MTG
€ 7.00
14
1476201B01
ref: 14
CUSHION,MUFFLER
€ 3.00
15
1476336E00
ref: 15
SPACER,MUF MTG
€ 6.50
16
0154706253
ref: 16
01547-0625B
SCREW
€ 2.50
17
0154706123
ref: 17
01547-0612B
BOLT
€ 2.00
18-1
0916006057
ref: 18-1
09160-06109
WASHER
€ 2.00
18-2
0916006109
ref: 18-2
WASHER(6.5X18X1.6)
€ 2.00
19
1477020400
ref: 19
14770-20401
DAMPER,MUFFLER SUPPORT
€ 10.00
20
0154706163
ref: 20
01547-0616B
BOLT
€ 2.50
21-1
0916006057
ref: 21-1
09160-06109
WASHER
€ 2.00
21-2
0916006109
ref: 21-2
WASHER(6.5X18X1.6)
€ 2.00
22-1
1435137E00
ref: 22-1
SILENCER,MUFFLER
€ 113.00
22-1
1435137E00
ref: 22-1
SILENCER,MUFFLER
€ 113.00
22-2
1435137E30
ref: 22-2
SILENCER,MUFFLER
€ 72.50
22-2
1435137E30
ref: 22-2
SILENCER,MUFFLER
€ 72.50
22-3
1435137E00
ref: 22-3
SILENCER,MUFFLER
€ 113.00
22-3
1435137E00
ref: 22-3
SILENCER,MUFFLER
€ 113.00
