EXHAUST VALVE (MODEL X/Y)
RM250 1998 (W) USA (E03)

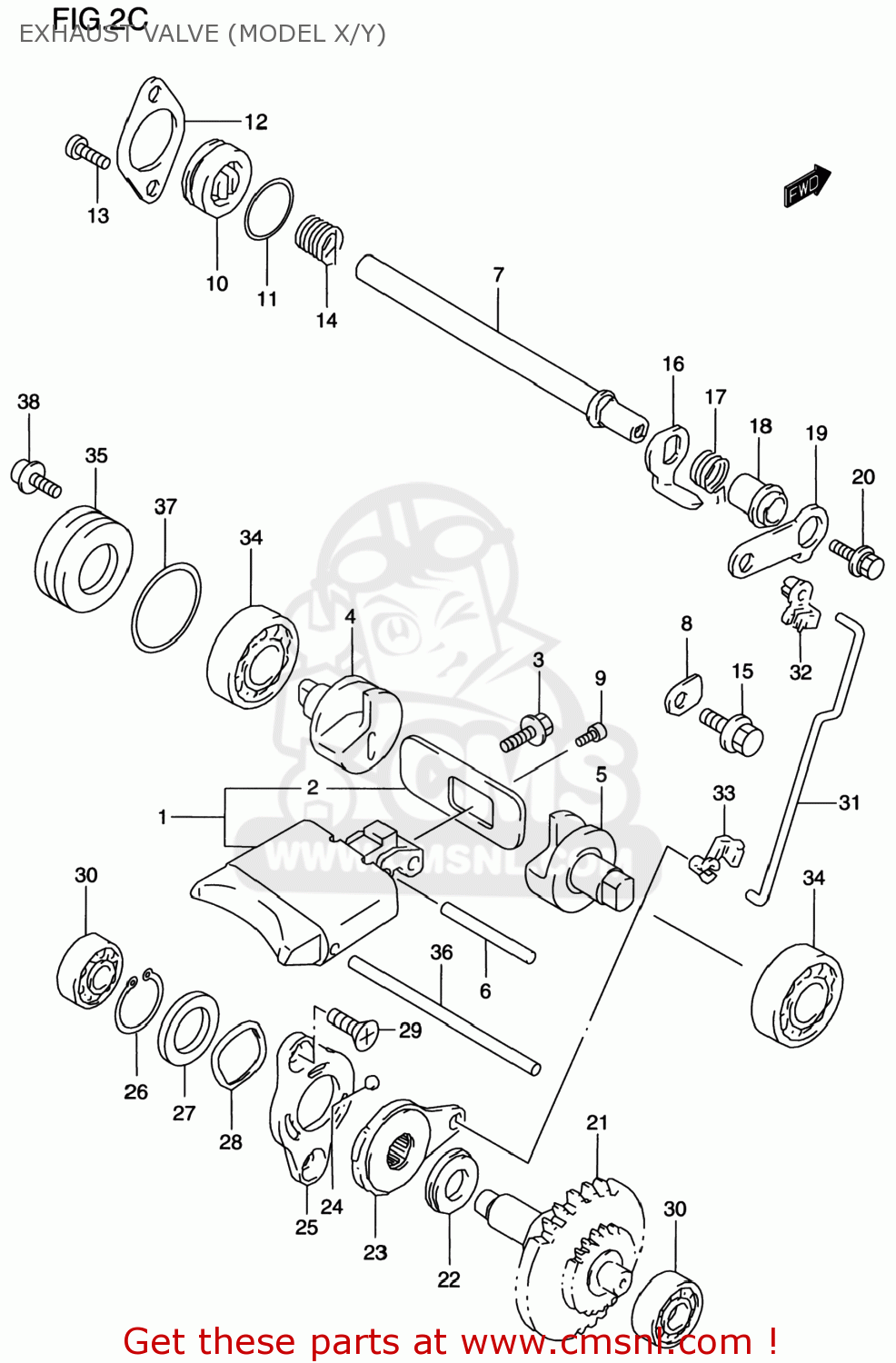

Exhaust valve (model x/y) diagram RM250 1998 (W) USA (E03)
EXHAUST VALVE (MODEL X/Y) RM250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1120637E30
ref: 1-1
VALVE ASSY,EXHAUST MAIN
€ 193.50
1-2
1120637E40
ref: 1-2
VALVE ASSEMBLY,EXHAUST MAIN
€ 203.50
2
1126137E30
ref: 2
GUIDE,EXHAUST MAIN VALVE
€ 13.00
3
0211215123
ref: 3
02142-0512A
SCREW 5X12
€ 1.50
4
1125537E30
ref: 4
11255-37E31
VALVE,EXHAUST SIDE,RIGHT
€ 76.50
5
1125637E30
ref: 5
11256-37E31
VALVE,EXHAUST SIDE,LEFT
€ 75.50
6
0926104003
ref: 6
PIN(4X20)
€ 2.00
7
1125937E00
ref: 7
SHAFT,EXHAUST VALVE
€ 50.50
8
2474121A00
ref: 8
RETAINER
€ 2.00
9
0910604003
ref: 9
BOLT(4X8)
€ 2.00
10
1125827C01
ref: 10
CAP,EXHAUST VALVE
€ 52.00
11
0928023002
ref: 11
O RING(D:1.9,ID:22.6)
€ 2.50
12-1
1126500B21
ref: 12-1
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
12-2
1126500B22
ref: 12-2
RETAINER,EXHAUST VALVE
€ 2.50
13
0216205123
ref: 13
02162-0512A
BOLT
€ 2.00
14-1
1125737E30
ref: 14-1
SPRING,EXHAUST VALVE SHAFT
€ 3.50
14-2
1125736E00
ref: 14-2
SPRING,EXHAUST VALVE
€ 6.00
15
0154706103
ref: 15
01547-0610B
BOLT
€ 3.00
16
1126700B21
ref: 16
LEVER,EXHAUST VALVE NO.2
€ 5.50
17
0944416010
ref: 17
SPRING
€ 9.00
18
1126801B00
ref: 18
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
19
1126628C10
ref: 19
LEVER,EXHAUST VALVE NO.1
€ 22.50
20
0911805005
ref: 20
BOLT(5X12)
€ 4.00
21
1267037E11
ref: 21
GOVERNOR ASSY,EXHAUST VALVE
€ 123.50
22
0926310002
ref: 22
BEARING(10X22X2.8)
€ 8.50
23
1268001820
ref: 23
ACTUATOR,EXHAUST VALVE
€ 47.50
24
0611106003
ref: 24
BALL
€ 1.50
25
1268201B02
ref: 25
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
26
0938019003
ref: 26
CIRCLIP
€ 2.50
27
0918119004
ref: 27
SHIM(19.1X25X0.3)
€ 4.00
28
0916419001
ref: 28
WASHER
€ 7.00
29
0912005003
ref: 29
SCREW(5X10)
€ 2.00
30
0926208005
ref: 30
BEARING(8X22X7)
€ 12.50
31
1268537E30
ref: 31
ROD,EXHAUST VALVE
€ 4.00
32
1268601B00
ref: 32
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
33
1268701B00
ref: 33
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
34
0811262017
ref: 34
BEARING
€ 8.50
35
1126237E30
ref: 35
CAP,EXHAUST SIDE VALVE
€ 12.50
36
0920204020
ref: 36
PIN
€ 10.00
37
0928026006
ref: 37
O RING(D:3.1,ID:26.4)
€ 3.00
38
0211215123
ref: 38
02142-0512A
SCREW 5X12
€ 1.50
