CYLINDER (MODEL X)
RM250 1998 (W) USA (E03)

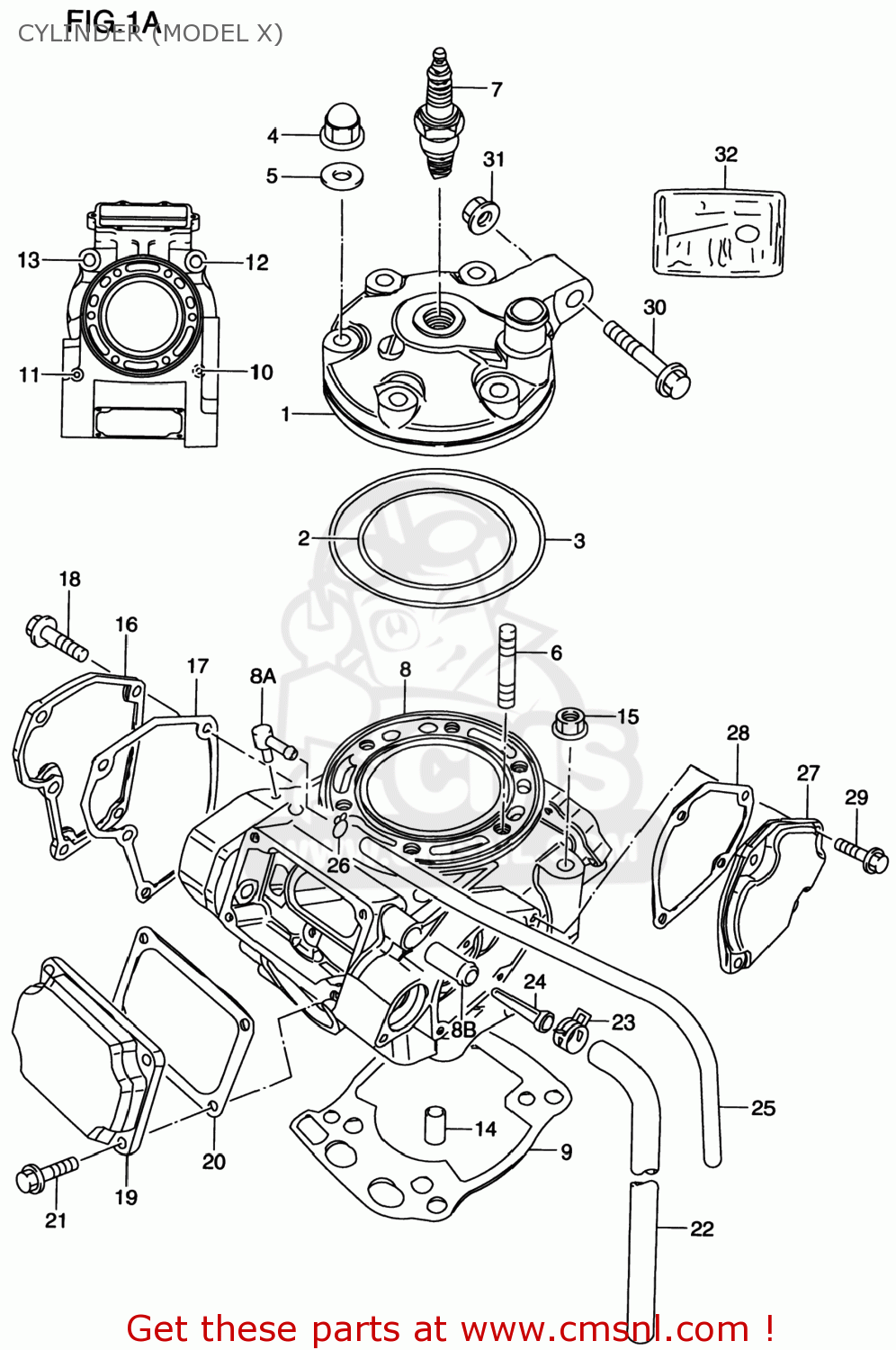

Cylinder (model x) diagram RM250 1998 (W) USA (E03)
CYLINDER (MODEL X) RM250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111137E30
ref: 1
HEAD,CYLINDER
€ 256.50
2
1114728C20
ref: 2
O RING,CYLINDER HEAD NO.1
€ 14.00
3
1114828C20
ref: 3
O RING,CYLINDER HEAD NO.2
€ 8.00
4
0915908049
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
09108-08231
BOLT,STUD
€ 4.50
7
0948200511
ref: 7
PLUG,SPARK(R6918B-7)
€ 81.50
8
1120037840
ref: 8
11200-37841
CYLINDER SET
€ 759.50
8A
1691009401
ref: 8A
UNION,BREATHER HOSE
€ 18.00
8B
0936410003
ref: 8B
UNION
€ 7.00
8B
0936410003
ref: 8B
UNION
€ 7.00
9
1124137E30
ref: 9
11241-37E31
GASKET,CYLINDER (NAS)
€ 15.50
10
0142110308
ref: 10
01421-1030A
STUD 10X30
€ 2.50
11
0142110408
ref: 11
01421-1040A
STUD BOLT (L:40)
€ 2.00
12
0142110708
ref: 12
STUD BOLT (L:70)
€ 3.00
13
0142110808
ref: 13
STUD BOLT
€ 4.50
14
0920613017
ref: 14
PIN(13X10.4X20)
€ 9.00
15
0831610103
ref: 15
08316-1010B
NUT
€ 2.00
16
1123137E30
ref: 16
COVER,CYLINDER NO.1
€ 24.50
17
1123337E30
ref: 17
GASKET,CYLINDER COVER NO.1 (NAS)
€ 6.50
18
0154706163
ref: 18
01547-0616B
BOLT
€ 2.50
19
1124837E30
ref: 19
COVER,CYLINDER NO.2
€ 29.00
20
1123836E00
ref: 20
11238-36E01
GASKET,CYLINDER COVER NO.2
€ 5.00
21
0216205163
ref: 21
02162-0516A
BOLT
€ 1.50
22
0934309501
ref: 22
HOSE
€ 13.50
23
0940112405
ref: 23
CLIP
€ 3.00
24
1127128E20
ref: 24
FILTER,EXH VALVE BREATHER HOSE
€ 12.00
25
0935250823600
ref: 25
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
26
0940108401
ref: 26
CLIP
€ 1.50
27
1124937E30
ref: 27
COVER,CYLINDER NO.3
€ 13.50
28
1123437E30
ref: 28
11234-37E31
GASKET,CYLINDER COVER (NAS)
€ 4.50
29
0216205163
ref: 29
02162-0516A
BOLT
€ 1.50
30
0910310126
ref: 30
BOLT(10X48)
€ 4.50
31
0915910060
ref: 31
NUT
€ 2.00
32
1140037880
ref: 32
11400-37884
GASKET SET (NAS)
€ 91.00
