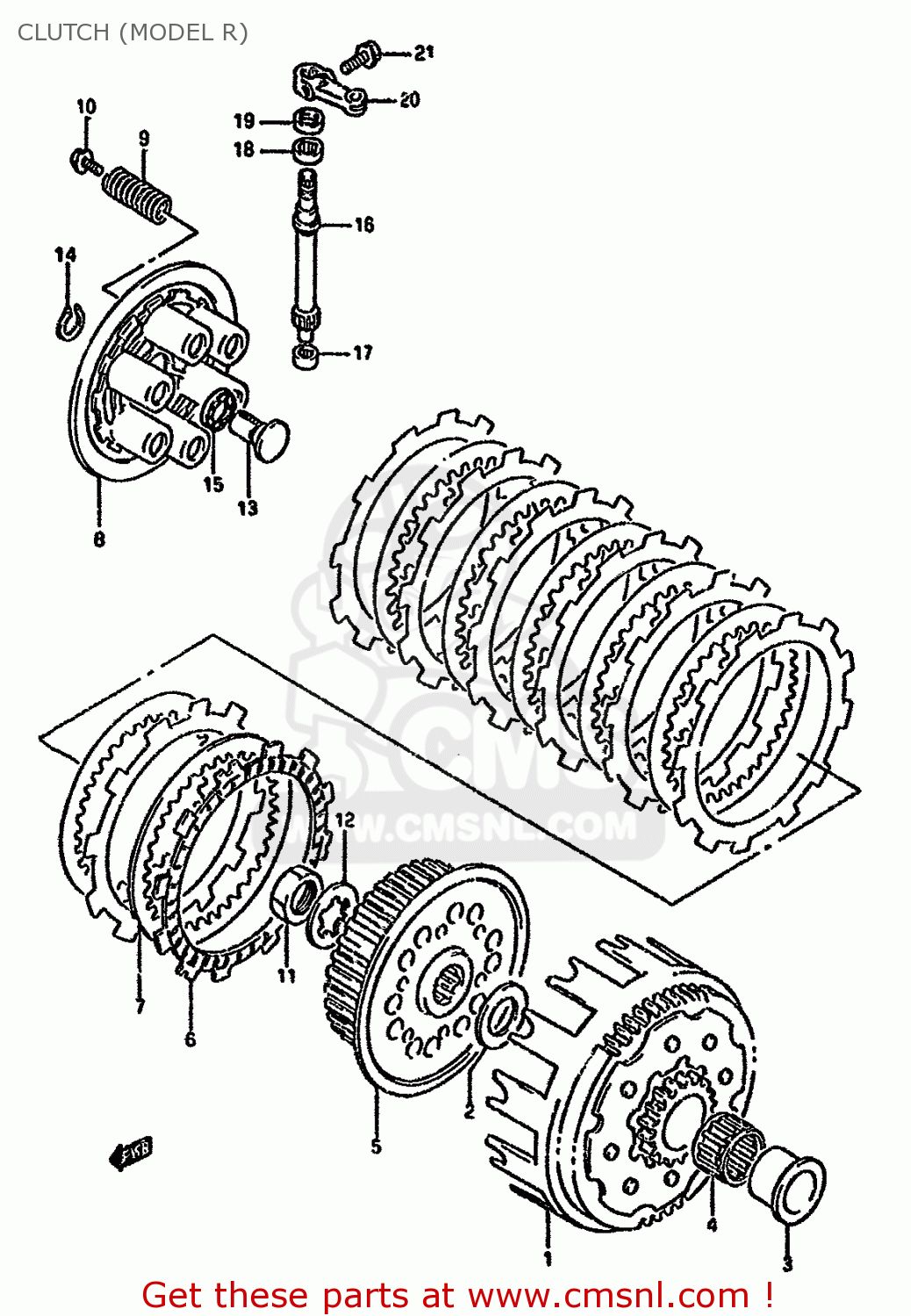

CLUTCH (MODEL R)

ref

part #

description

quantity

1

2120028E10
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 285.00

2

0916022067
ref: 2

WASHER(22X38X2)

€ 10.50

3

2125128C01
ref: 3

SPACER,PRIMARY DRIVEN GEAR

€ 23.50

4

0926329006
ref: 4

BEARING(29X34X21.8)

€ 27.00

5

2141028C34
ref: 5

HUB,CLUTCH SLEEVE

€ 93.00

6

2144107A02
ref: 6

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

7

2145128C30
ref: 7

PLATE,CLUTCH DRIVEN T: (NAS)

€ 10.50

8

2146228E00
ref: 8

DISC,CLUTCH PRESSURE

€ 37.00

9

0944018025
ref: 9

SPRING

€ 9.00

10

0911605019
ref: 10

BOLT(5X25)

€ 3.00

11

0914018013
ref: 11

NUT

€ 9.00

12

0916722021
ref: 12

WASHER,LOCK

€ 2.00

13

2316528301
ref: 13

RACK,CLUTCH RELEASE

€ 20.00

14

0833131106
ref: 14

CIRCLIP,10MM

€ 2.00

15

0926310002
ref: 15

BEARING(10X22X2.8)

€ 8.50

16

2326100B20
ref: 16

PINION,CLUTCH RELEASE(NT:12)

€ 46.50

17

0926309001
ref: 17

BEARING(9X13X10)

€ 11.00

18

0926312024
ref: 18

BEARING(12X16X10)

€ 11.00

19

0928510004
ref: 19

SEAL,OIL(10X17X5)

€ 3.50

20

2327120901
ref: 20

ARM,CLUTCH RELEASE

€ 20.50

21

0154706163
ref: 21

BOLT

€ 2.50
