ELECTRICAL

RMX250R 1993 (P) GENERAL (E01)

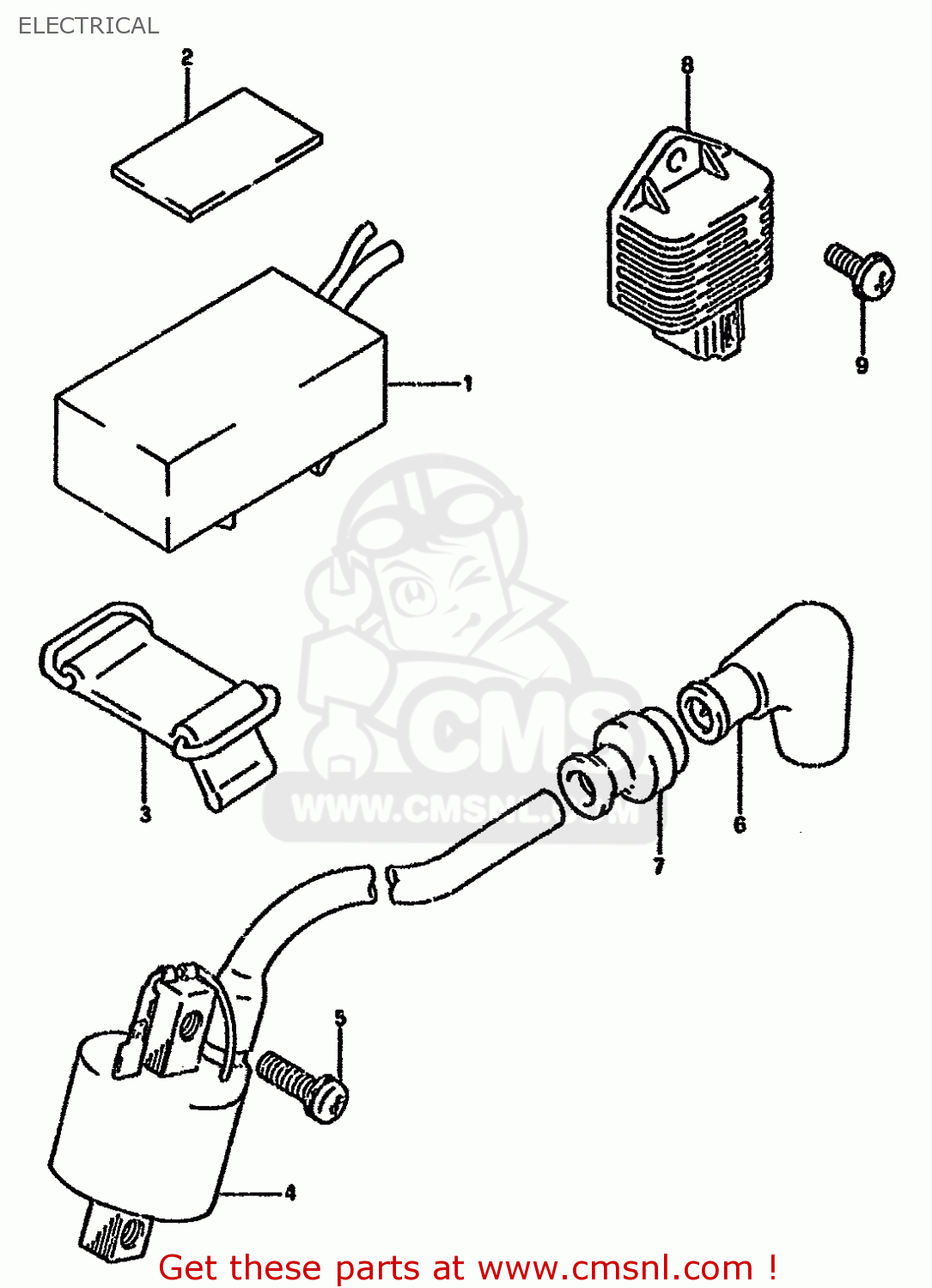

Electrical diagram RMX250R 1993 (P) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

3290005D01
ref: 1

CDI UNIT

€ 447.50

3365137000
ref: 2
CUT 50X30

PROTECTOR(170X95X3.0)

€ 5.00

3294214111
ref: 3

BAND(L:65)

€ 8.00

3341029E00
ref: 4

COIL ASSY,IGNITION

€ 94.00

5-1

0211236206
ref: 5-1
MODEL P

SCREW

€ 2.00

5-2

0211236203
ref: 5-2
MODEL R

SCREW

€ 2.00

3351020A00
ref: 6

CAP,SPARK PLUG

€ 23.00

3354238B00
ref: 7

SEAL,HIGH TENSION CORD

€ 4.50

3250014D00
ref: 8

REGULATOR ASSY

€ 99.00

9-1

0211216125
ref: 9-1
MODEL P

SCREW

€ 2.00

9-2

0211216123
ref: 9-2
MODEL R

SCREW

€ 2.00

all assemblies
