HEADLAMP

RMX250R 1993 (P) GENERAL (E01)

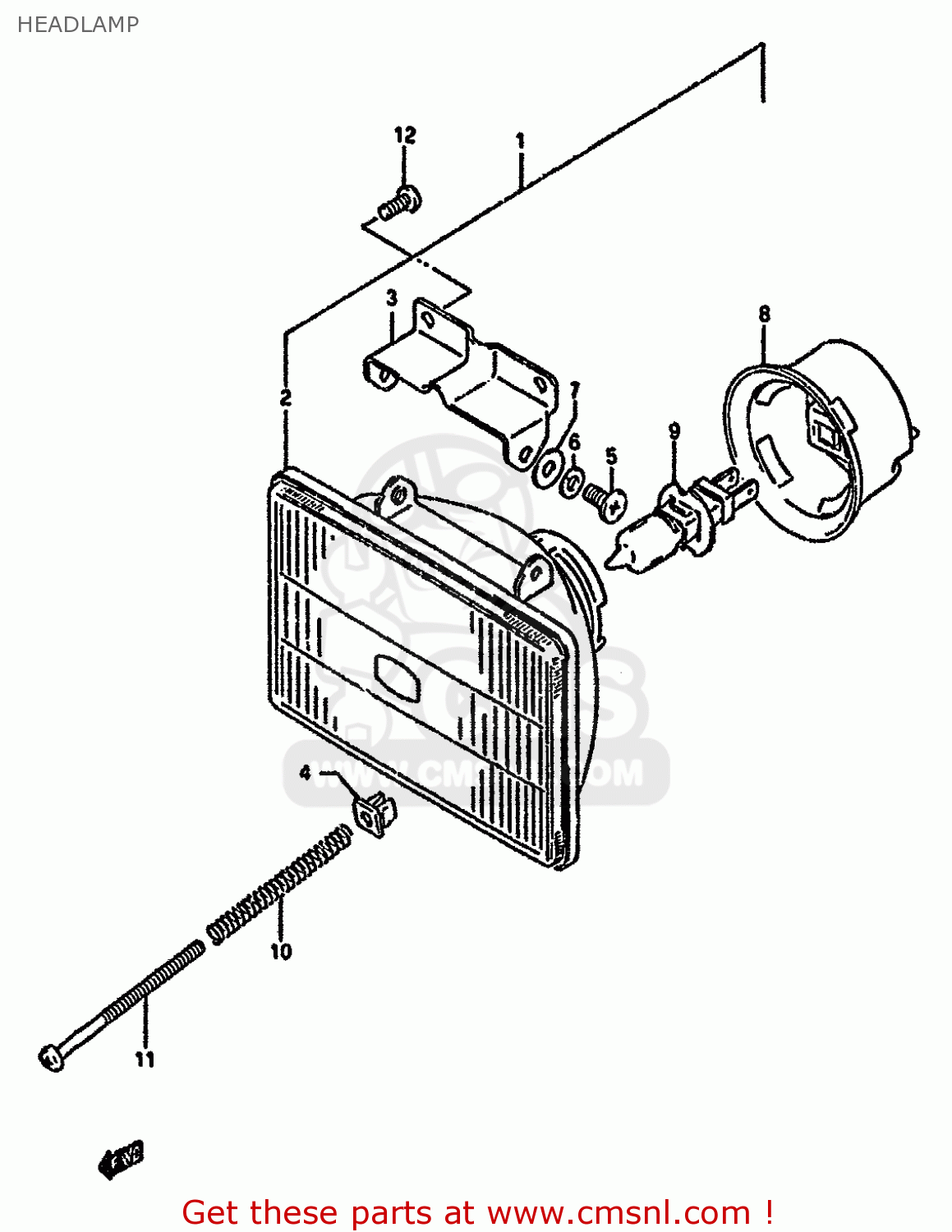

Headlamp diagram RMX250R 1993 (P) GENERAL (E01)

HEADLAMP RMX250R 1993 (P) GENERAL (E01)

HEADLAMP RMX250R 1993 (P) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1

3510005D00
ref: 1

HEADLAMP ASSY

€ 107.00

2

3512105D00
ref: 2

UNIT,LAMP

€ 80.00

3

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

4

3515205C00
ref: 4

NUT,HEADLAMP ADJUSTER

€ 2.50

5

3513616700
ref: 5

SCREW

€ 3.00

6

0832121057
ref: 6

LOCK WASHER

€ 2.00

7

3513805D00
ref: 7

WASHER

€ 1.50

8

3517305D00
ref: 8

COVER,SOCKET

€ 15.00

9

0947112160
ref: 9

BULB(12V55W)

€ 24.50

10

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

11

3515105D00
ref: 11

SCREW,HEADLAMP ADJUST

€ 3.00

12

0351104106
ref: 12

SCREW

€ 1.50
