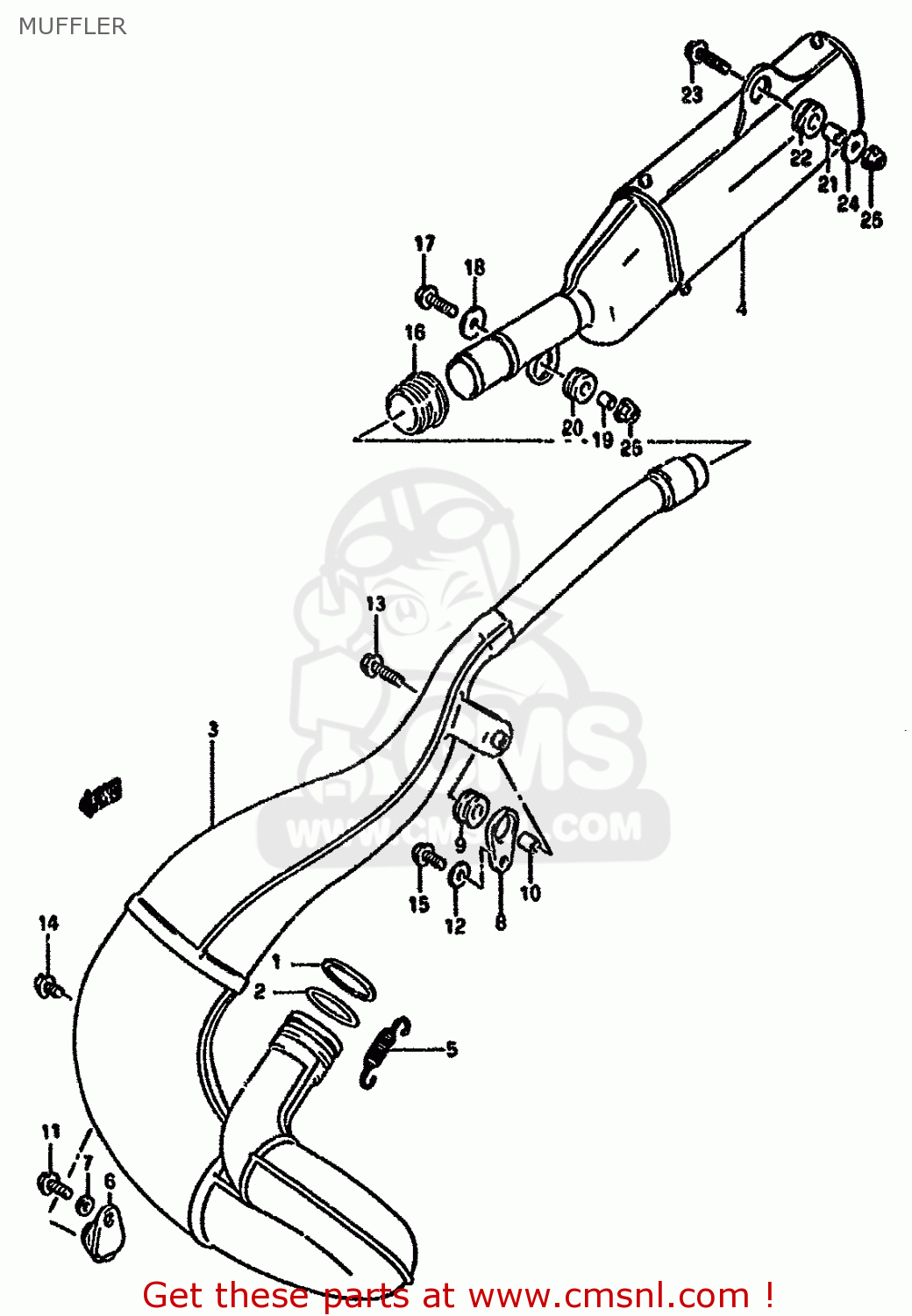

MUFFLER

ref

part #

description

quantity

1

1417228C30
ref: 1

WASHER,EXHAUST PIPE

€ 2.00

2

1417128C30
ref: 2

O RING,EXHAUST PIPE

€ 19.00

3-1

1431029E30
ref: 3-1
MODEL P

BODY,MUFFLER 1ST

€ 392.00

3-2

1431028E00H01
ref: 3-2
MODEL R

BODY,MUFFLER 1ST

€ 392.00

4

1433028E00H01
ref: 4

BODY COMP,MUFFLER,SECOND.

€ 262.00

5

0944312042
ref: 5

SPRING

€ 10.50

6

1477020400
ref: 6

DAMPER,MUFFLER SUPPORT

€ 10.00

7

0916406D03
ref: 7

WASHER

€ 0.00

8

1476101B00
ref: 8

PLATE,MUFFLER MTG

€ 10.50

9

1476201B01
ref: 9

CUSHION,MUFFLER

€ 3.00

10

0918006062
ref: 10

SPACER (6.4X9X13.5)

€ 2.00

11

0154706167
ref: 11

BOLT

€ 2.00

12-1

0916006027
ref: 12-1
MODEL P

WASHER (6.5X20X1.2)

€ 2.00

12-2

0916006079
ref: 12-2
MODEL R

WASHER(6.5X16X1.2)

€ 2.00

13-1

0154706257
ref: 13-1
MODEL P

BOLT

€ 2.50

13-2

0154706253
ref: 13-2
MODEL R

SCREW

€ 2.50

14-1

0154706127
ref: 14-1
MODEL P

BOLT

€ 2.00

14-2

0154706123
ref: 14-2
MODEL R

BOLT

€ 2.00

15-1

0154706207
ref: 15-1
MODEL P

BOLT

€ 2.50

15-2

0154706203
ref: 15-2
MODEL R

SCREW

€ 2.50

16

1477128C02
ref: 16

CONNECTOR,MUFFLER

€ 52.50

17-1

0151708258
ref: 17-1
MODEL P

BOLT

€ 2.50

17-2

0155008253
ref: 17-2
MODEL R

BOLT

€ 2.50

18

0916008002
ref: 18

WASHER (8.5X29X1.6)

€ 2.00

19

0918008140
ref: 19

SPACER(8X10X11)

€ 3.00

20

0932010041
ref: 20

CUSHION

€ 4.50

21-1

0918008155
ref: 21-1
MODEL P

SPACER (8.1X11.5X13)

€ 5.00

21-2

0918008170
ref: 21-2
MODEL R

SPACER(8.1X11.5X13)

€ 5.00

22

0932011016
ref: 22

CUSHION

€ 5.50

23

0151708307
ref: 23

BOLT 8X30

€ 3.50

24

0916008002
ref: 24

WASHER (8.5X29X1.6)

€ 2.00

25

0831931087
ref: 25

NUT

€ 2.50

all assemblies
