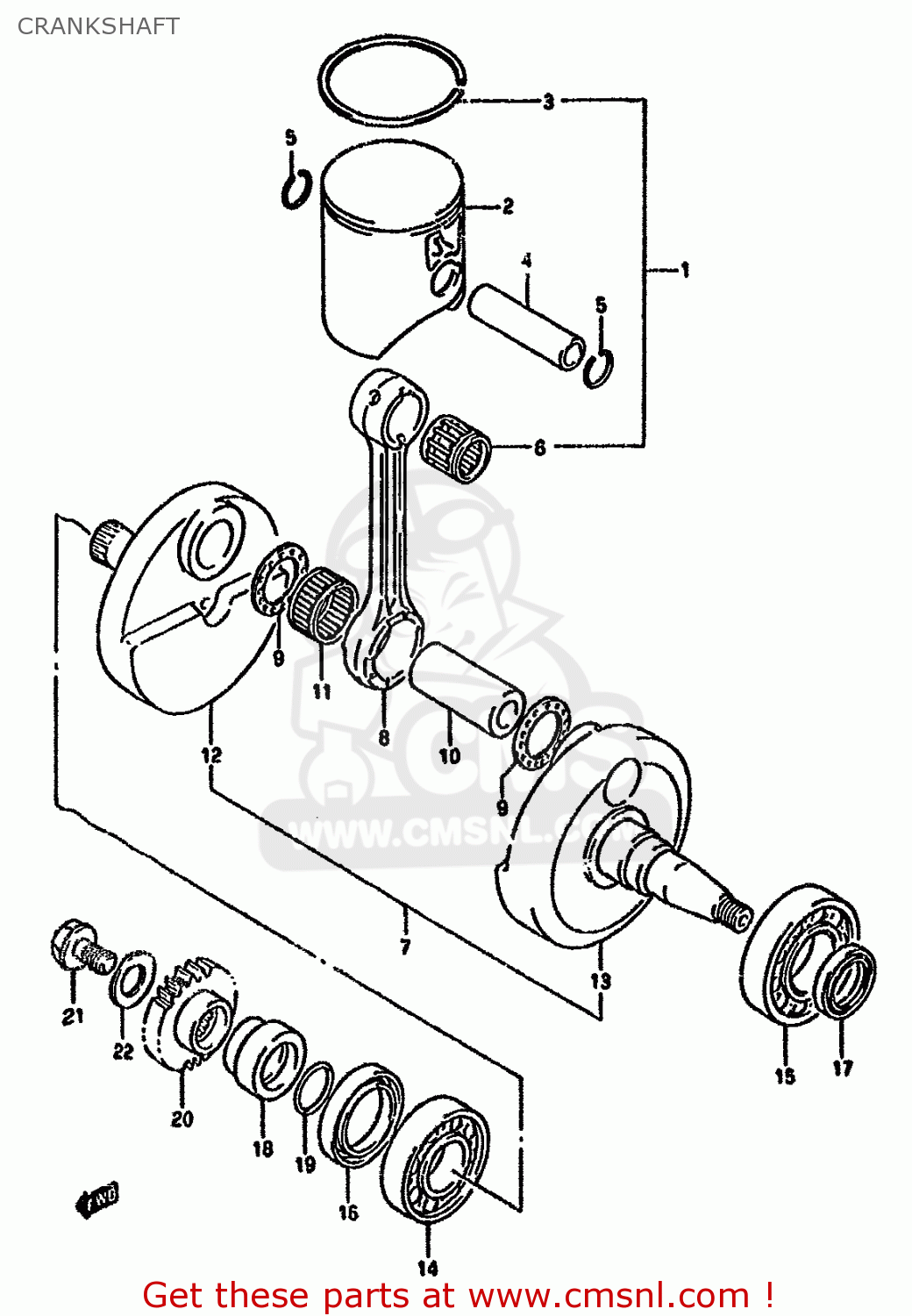

CRANKSHAFT

ref

part #

description

quantity

1

1210029820
ref: 1
OPT

PISTON KIT

€ 206.00

2

1211029E100F0
ref: 2

PISTON

€ 71.50

3

1214128E00
ref: 3

RING,PISTON

€ 24.50

4

1215128C00
ref: 4

PIN,PISTON

€ 13.00

5

0938118002A
ref: 5

CIRCLIP,PISTON PIN

€ 1.50

6

0926318016
ref: 6

BEARING(18X23X22)

€ 14.00

7-1

1220029E00
ref: 7-1
MODEL P

CRANKSHAFT ASSEMBLY

€ 707.00

7-2

1220029E10
ref: 7-2
MODEL R

CRANKSHAFT ASSEMBLY

€ 658.00

8

1216128C30
ref: 8

ROD,CONNECTING

€ 92.00

9

0916024027
ref: 9

WASHER(24X38.5X1.5)

€ 19.50

10

1221128C10
ref: 10

PIN,CRANK

€ 33.00

11

0926324026
ref: 11

BEARING(24X30X20)

€ 62.50

12-1

1222129E00
ref: 12-1
MODEL P

CRANKSHAFT,R

€ 215.00

12-2

1222028E10
ref: 12-2
MODEL R

CRANKSHAFT,R

€ 278.00

13-1

1226129E00
ref: 13-1
MODEL P

CRANKSHAFT,LEFT

€ 239.00

13-2

1226029E10
ref: 13-2
MODEL R

CRANKSHAFT COMP,LEFT

€ 289.00

14-1

0926225108
ref: 14-1
MODEL P

BEARING(25X62X17)

€ 34.50

14-2

0926228028
ref: 14-2
MODEL R

BEARING,LH (28X68X18)

€ 101.00

15-1

0926228024
ref: 15-1
MODEL P

BEARING 28X68X18

€ 71.00

15-2

0926228028
ref: 15-2
MODEL R

BEARING,LH (28X68X18)

€ 101.00

16-1

0928336007
ref: 16-1
MODEL P

SEAL,OIL(36X52X7)

€ 13.50

16-2

0928338018
ref: 16-2
MODEL R

SEAL,OIL(38X52X8)

€ 19.50

17

0928325083
ref: 17

SEAL,OIL(25X37X6)

€ 5.00

18-1

1235900B20
ref: 18-1
MODEL P

SPACER,PRIMARY DRIVE GEAR

€ 16.00

18-2

1235928E11
ref: 18-2
MODEL R

SPACER,PRIMARY DRIVE GEAR

€ 15.00

19

0928022001
ref: 19

O RING(D:2.4,ID:21.8)

€ 2.00

20

2111114320
ref: 20

GEAR,PRIMARY DRIVE (NT:

€ 46.50

21

2114127C11
ref: 21

BOLT,PRIMARY DRIVE GEAR

€ 11.50

22

0916411004
ref: 22

WASHER

€ 6.00

all assemblies
