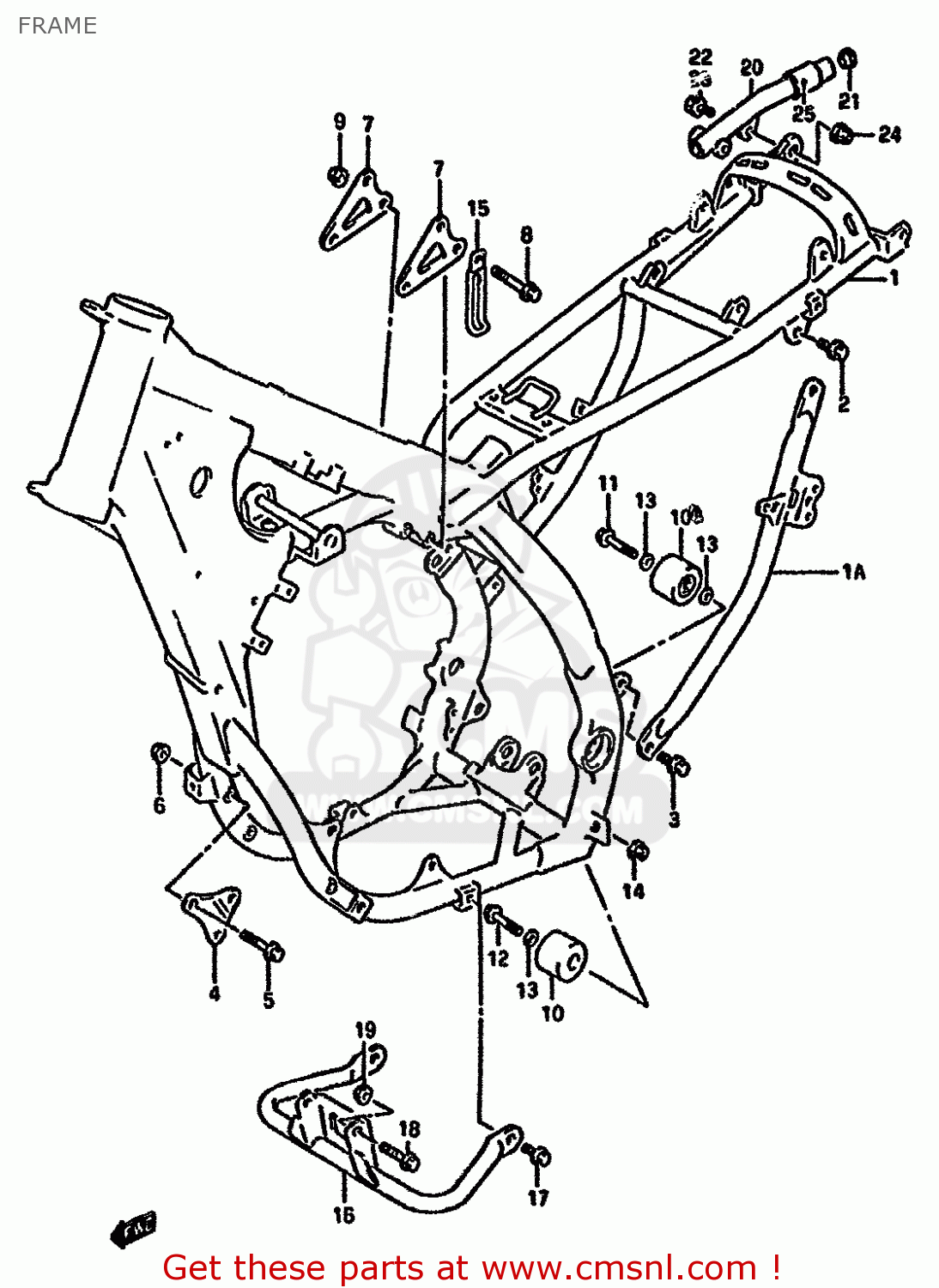

FRAME

ref

part #

description

quantity

1

4110029E1124K
ref: 1

FRAME SET (CHARCOAL)

€ 1,934.50

1A

4167029E1024K
ref: 1A

TUBE,FRAME SIDE (CHARCOAL)

€ 0.00

2-1

0151708207
ref: 2-1
MODEL P

BOLT

€ 3.00

2-2

0155008203
ref: 2-2
MODEL R

BOLT

€ 3.00

3-1

0151708128
ref: 3-1
MODEL P

BOLT 8X12

€ 3.50

3-2

0155008123
ref: 3-2
MODEL R

BOLT

€ 3.50

4

4199128C00
ref: 4

PLATE,ENG MTG FR

€ 35.00

5-1

0910308274
ref: 5-1

BOLT

€ 3.50

5-2

0910308027
ref: 5-2
MODEL R

BOLT 8X55

€ 3.50

6

0915908034
ref: 6

NUT

€ 2.00

7

4199329E00
ref: 7

PLATE,ENG MTG UPR

€ 12.50

8

0910308083
ref: 8

BOLT(8X41)

€ 3.50

9

0915908034
ref: 9

NUT

€ 2.00

10

4391027C11
ref: 10

ROLLER,CHAIN

€ 36.50

11

0910308083
ref: 11

BOLT(8X41)

€ 3.50

12

0910308043
ref: 12

BOLT(8X45)

€ 4.50

13

0821108121
ref: 13

WASHER

€ 2.00

14

0831931087
ref: 14

NUT

€ 2.50

15

0940408405
ref: 15

CLAMP

€ 3.50

16

4251005D4024K
ref: 16

PROTECTOR,ENGINE

€ 97.00

17

0910308027
ref: 17

BOLT 8X55

€ 3.50

18

0910308253
ref: 18

BOLT(8X14)

€ 4.00

19

0915908034
ref: 19

NUT

€ 2.00

20-1

4398029E10
ref: 20-1
MODEL P

GRIP,REAR RH

€ 2.00

20-2

4398029E11
ref: 20-2
MODEL R

GRIP,REAR RH

€ 2.00

21

0925012005
ref: 21

PLUG(OD:17)

€ 3.00

22

0155008553
ref: 22

BOLT

€ 3.00

23-1

0151708167
ref: 23-1
MODEL P

BOLT 8X16

€ 3.00

23-2

0155008163
ref: 23-2
MODEL R

BOLT

€ 3.00

24

0831931087
ref: 24

NUT

€ 2.50

25

4923460B10
ref: 25

BUSHING (D10)

€ 0.00
