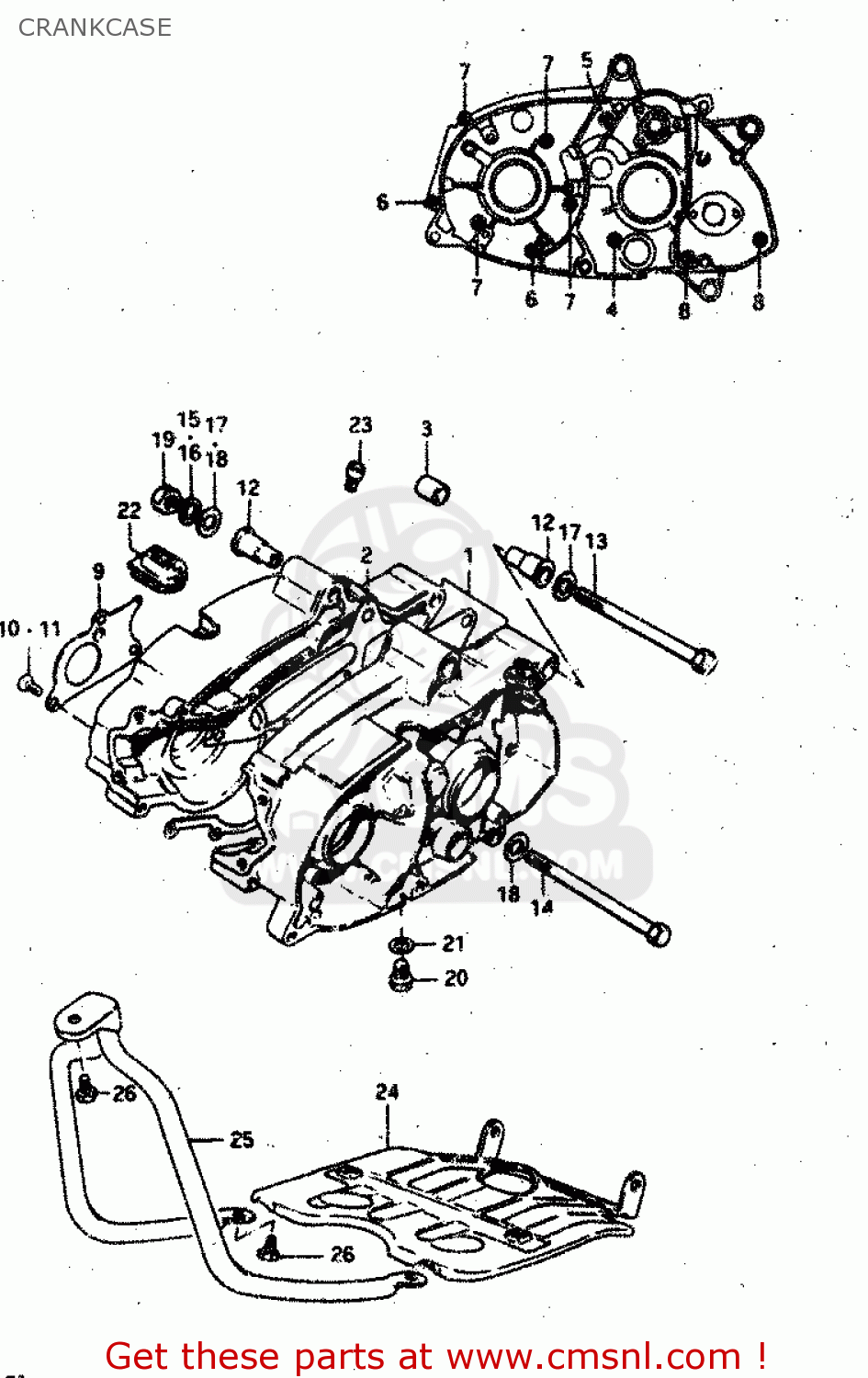

CRANKCASE

ref

part #

description

quantity

1

1130022870
ref: 1

CRANKCASE ASSY

€ 406.00

2

1148122001
ref: 2

GASKET (MCA)

€ 16.50

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206608
ref: 4

SCREW 6X60

€ 2.50

5

0211206557
ref: 5

SCREW

€ 2.50

6

0211206458
ref: 6

SCREW (6X45)

€ 2.00

7

0211206408
ref: 7

SCREW

€ 2.00

8

0211206308
ref: 8

SCREW 6X30

€ 2.50

9

1252119002
ref: 9

PLATE,OIL RESERVOIR

€ 6.50

10

0212206128
ref: 10

SCREW

€ 3.00

11

0211206128
ref: 11

SCREW 6X12

€ 2.00

12

0931908008
ref: 12

BUSH

€ 6.50

13

0910008046
ref: 13

BOLT

€ 8.50

14

0910008142
ref: 14

BOLT(8X145)

€ 4.00

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16

0832131088
ref: 16

WASHER,LOCK,8.

€ 2.00

17

0832211088
ref: 17

WASHER

€ 2.00

18

0832221088
ref: 18

WASHER

€ 2.00

19

0831012088
ref: 19

NUT

€ 2.00

20

0924710001
ref: 20

PLUG

€ 3.00

21

0916810002
ref: 21

GASKET(10X14X3.6) (NAS)

€ 2.00

22

0930907005
ref: 22

GROMMET

€ 4.50

23

0925010005
ref: 23

CAP(OD:15)

€ 2.00

24

1191027402
ref: 24
OPT

PROTECTOR, ENGINE

€ 0.00

25

1192027401
ref: 25
OPT

BRACE, PROTECTOR

€ 0.00

26

0151708128
ref: 26
OPT

BOLT 8X12

€ 3.50
