HEADLAMP

RV50 1981 (X) (E01)

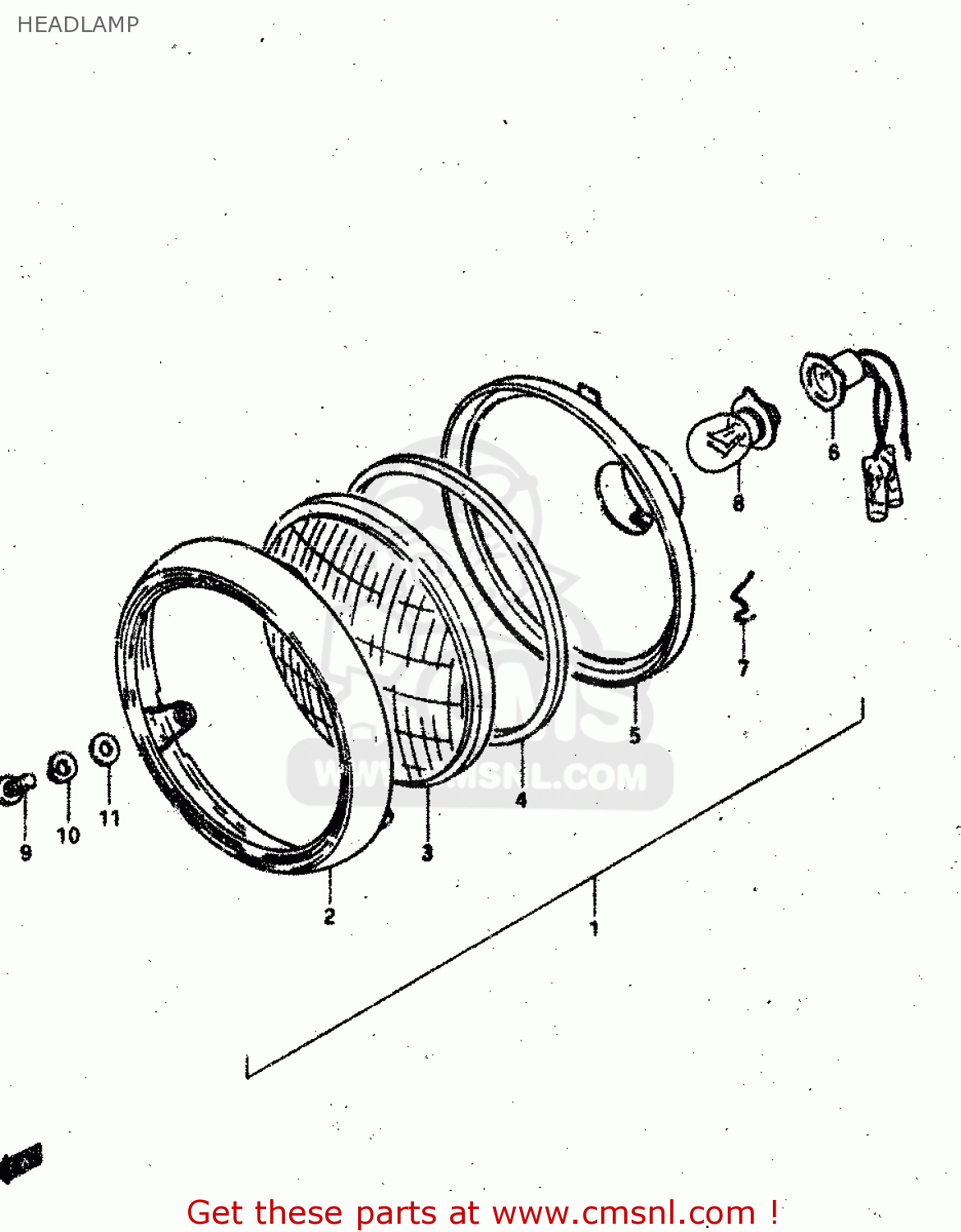

Headlamp diagram RV50 1981 (X) (E01)

HEADLAMP RV50 1981 (X) (E01)

HEADLAMP RV50 1981 (X) (E01)

prices are in EUR

ref

part #

description

quantity

1

3510027223
ref: 1

HEADLAMP ASSY

€ 80.00

2

3511127223
ref: 2

RIM

€ 33.50

3

3312425324
ref: 3

LENS

€ 0.00

4

3512527222
ref: 4

GASKET (NAS)

€ 5.50

5

3512327223
ref: 5

REFLECTOR

€ 0.00

6

3517143020
ref: 6

SOCKET,HEADLAMP

€ 12.50

7

3512827221
ref: 7

SPRING

€ 2.50

8

0947106022
ref: 8

BULB(6V15/15W/STANLEY,A3598HA)

€ 6.50

9

0211204128
ref: 9

SCREW

€ 1.50

10

0832121048
ref: 10

LOCK WASHER

€ 2.00

11

0832221048
ref: 11

WASHER

€ 2.00
