HEADLAMP (E4)
RV50 1981 (X) (E01)

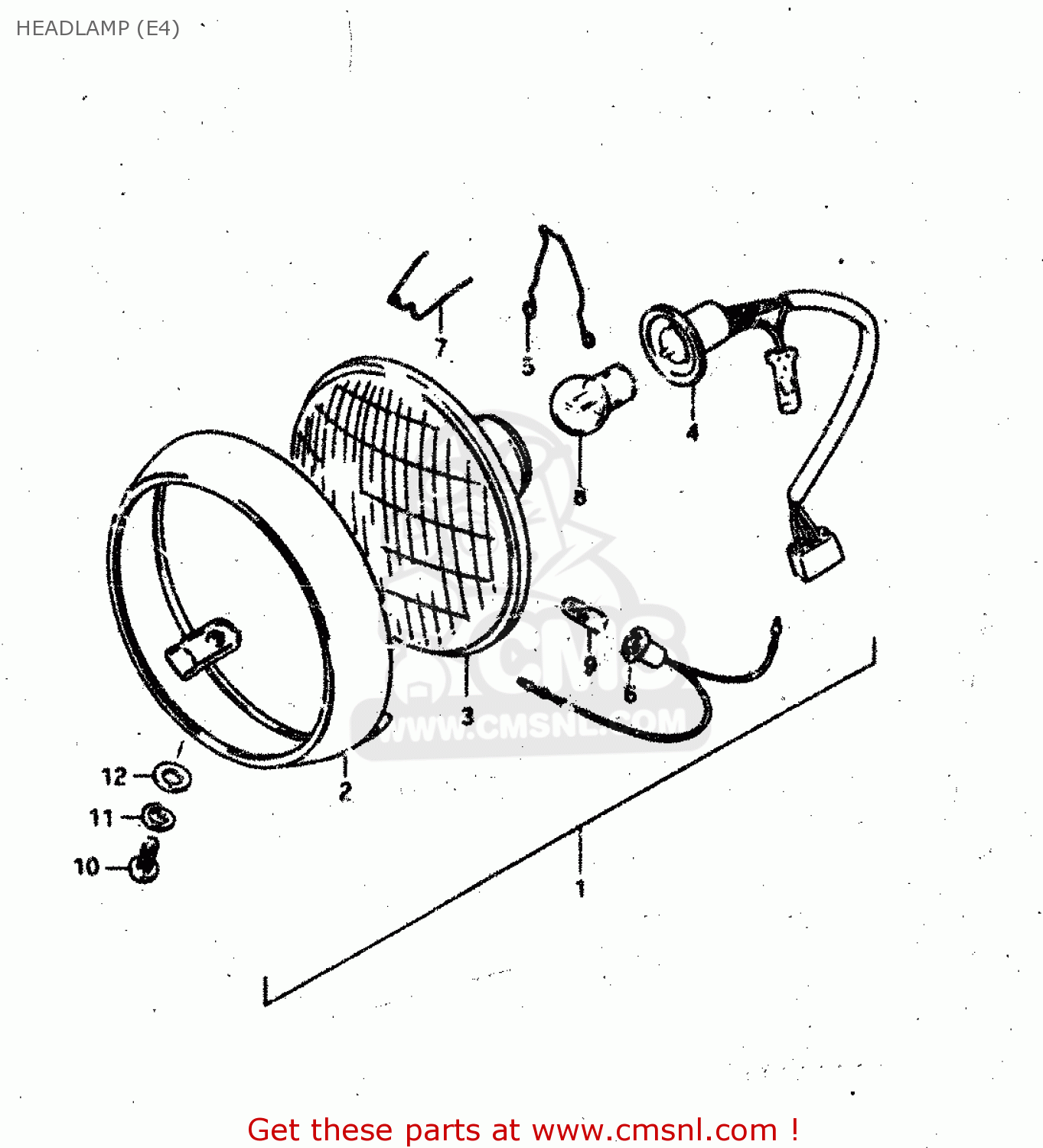

Headlamp (e4) diagram RV50 1981 (X) (E01)
HEADLAMP (E4) RV50 1981 (X) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3510027652999
ref: 1
HEADLAMP ASSY
€ 0.00
2
3511128660
ref: 2
RIM
€ 72.50
3
3512127650
ref: 3
UNIT
€ 77.00
4
3517136640
ref: 4
SOCKET
€ 0.00
5
3517228660
ref: 5
CLAMP,HEADLAMP
€ 7.00
6
3611828660
ref: 6
SOCKET
€ 11.50
7
3512827660
ref: 7
SPRING
€ 3.00
8
0947106032
ref: 8
EXECUTED LOCALLY
BULB (6V,25/25W)
€ 0.00
9
0947106047
ref: 9
EXECUTED LOCALLY
BULB (6V,4W)
€ 0.00
10
0211204128
ref: 10
SCREW
€ 1.50
11
0832121048
ref: 11
LOCK WASHER
€ 2.00
12
0832221048
ref: 12
WASHER
€ 2.00
