HEADLAMP (E18, E39)

RV50 1981 (X) (E01)

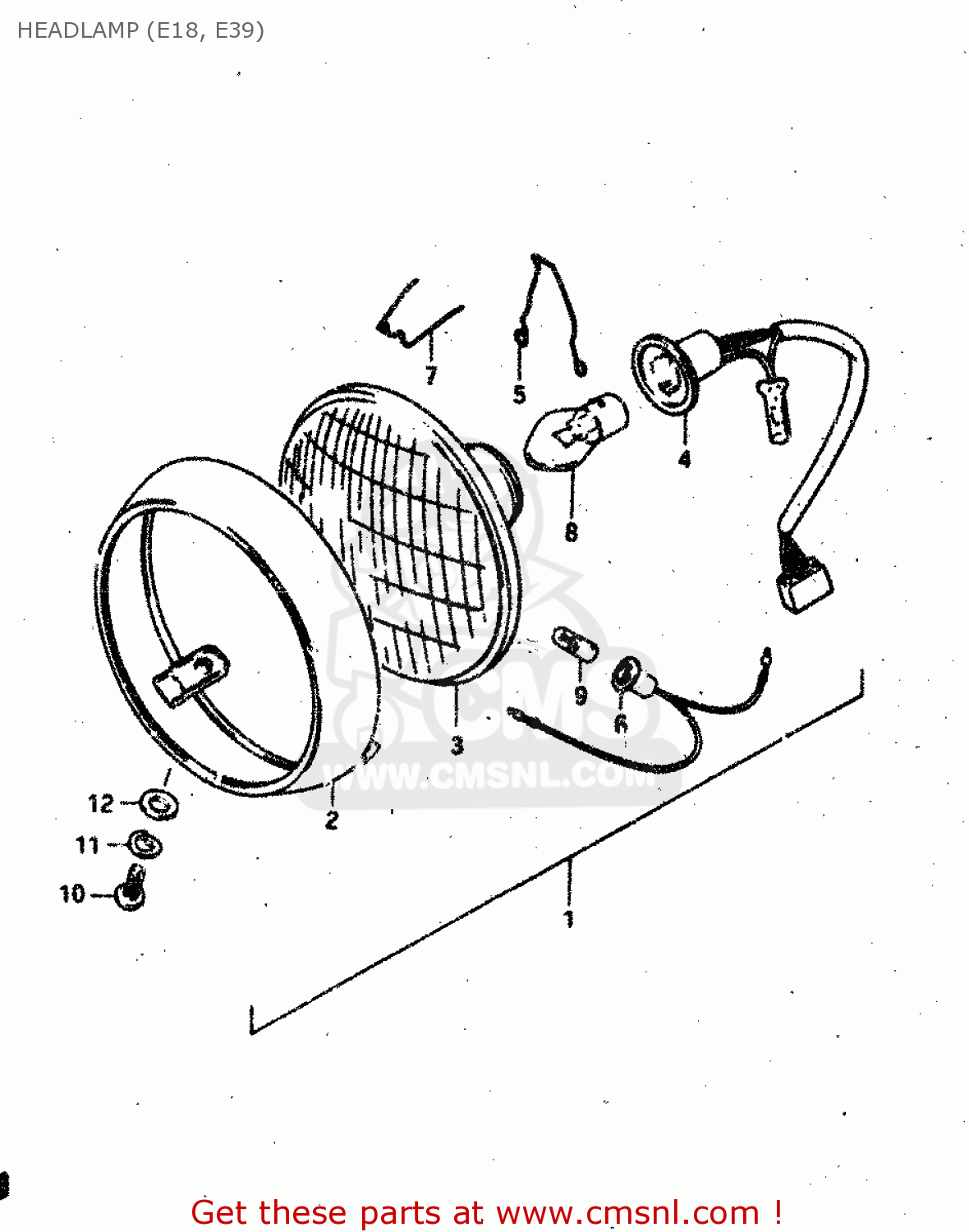

Headlamp (e18, e39) diagram RV50 1981 (X) (E01)

HEADLAMP (E18, E39) RV50 1981 (X) (E01)

HEADLAMP (E18, E39) RV50 1981 (X) (E01)

prices are in EUR

ref

part #

description

quantity

1

3510028662999
ref: 1

HEADLAMP ASSY

€ 116.50

2

3511128660
ref: 2

RIM

€ 72.50

3

3512128660
ref: 3

UNIT

€ 78.50

4

3517136650
ref: 4

SOCKET

€ 27.00

5

3517228660
ref: 5

CLAMP,HEADLAMP

€ 7.00

6

3611828660
ref: 6

SOCKET

€ 11.50

7

3512827660
ref: 7

SPRING

€ 3.00

8

0947106018
ref: 8
EXECUTED LOCALLY

BULB (6V,25/25W)

€ 0.00

9

0947106047
ref: 9
EXECUTED LOCALLY

BULB (6V,4W)

€ 0.00

10

0211204128
ref: 10

SCREW

€ 1.50

11

0832121048
ref: 11

LOCK WASHER

€ 2.00

12

0832221068
ref: 12

WASHER

€ 2.00
