TURN SIGNAL LAMP
RV50 1981 (X) (E01)

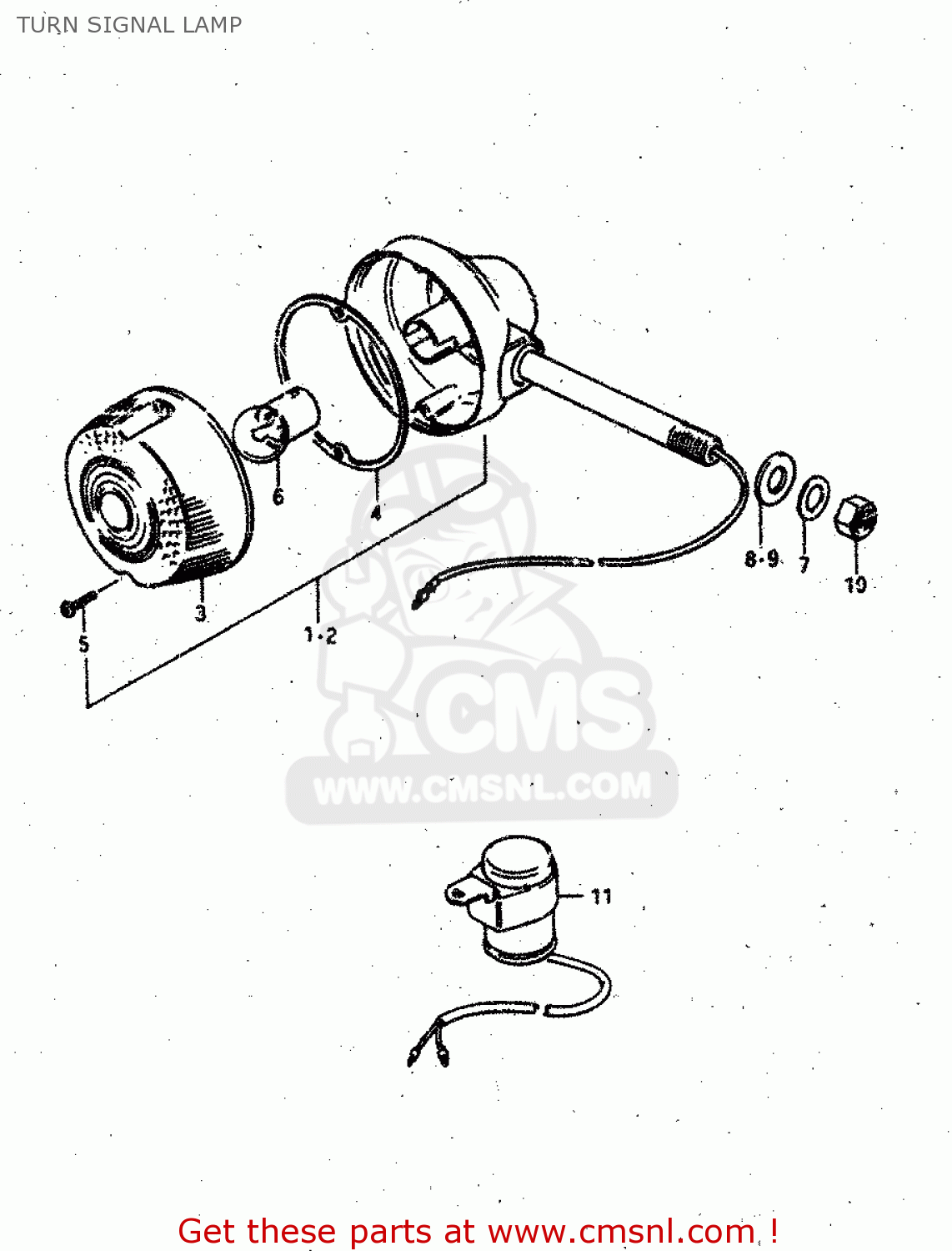

Turn signal lamp diagram RV50 1981 (X) (E01)
TURN SIGNAL LAMP RV50 1981 (X) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560127200999
ref: 1-1
LAMP, FRONT TURN SIGNAL
€ 47.50
1-2
3560127260
ref: 1-2
E19
LAMP, FRONT TURN SIGNAL
€ 0.00
2
3560327200999
ref: 2
LAMP ASSY,RR TURNSIGNAL
€ 37.00
3
3561246210
ref: 3
LENS
€ 6.00
4
3561306111
ref: 4
GASKET (NAS)
€ 5.00
5
0321103168
ref: 5
FROM 35623-35600
SCREW
€ 1.50
6
0947106021
ref: 6
BULB(6V8W,STANLEY,A4115)
€ 3.50
7
0832221108
ref: 7
WASHER
€ 2.50
8
0916010033
ref: 8
WASHER(10.5X24X3.2)
€ 2.00
9
0916010037
ref: 9
WASHER (10.5X22X2.3)
€ 2.50
10
0831022108
ref: 10
NUT
€ 2.50
11
3861026021
ref: 11
RELAY, TURN SIGNAL
€ 63.50
