CAM SHAFT - VALVE
SP500 1982 (Z) USA (E03)

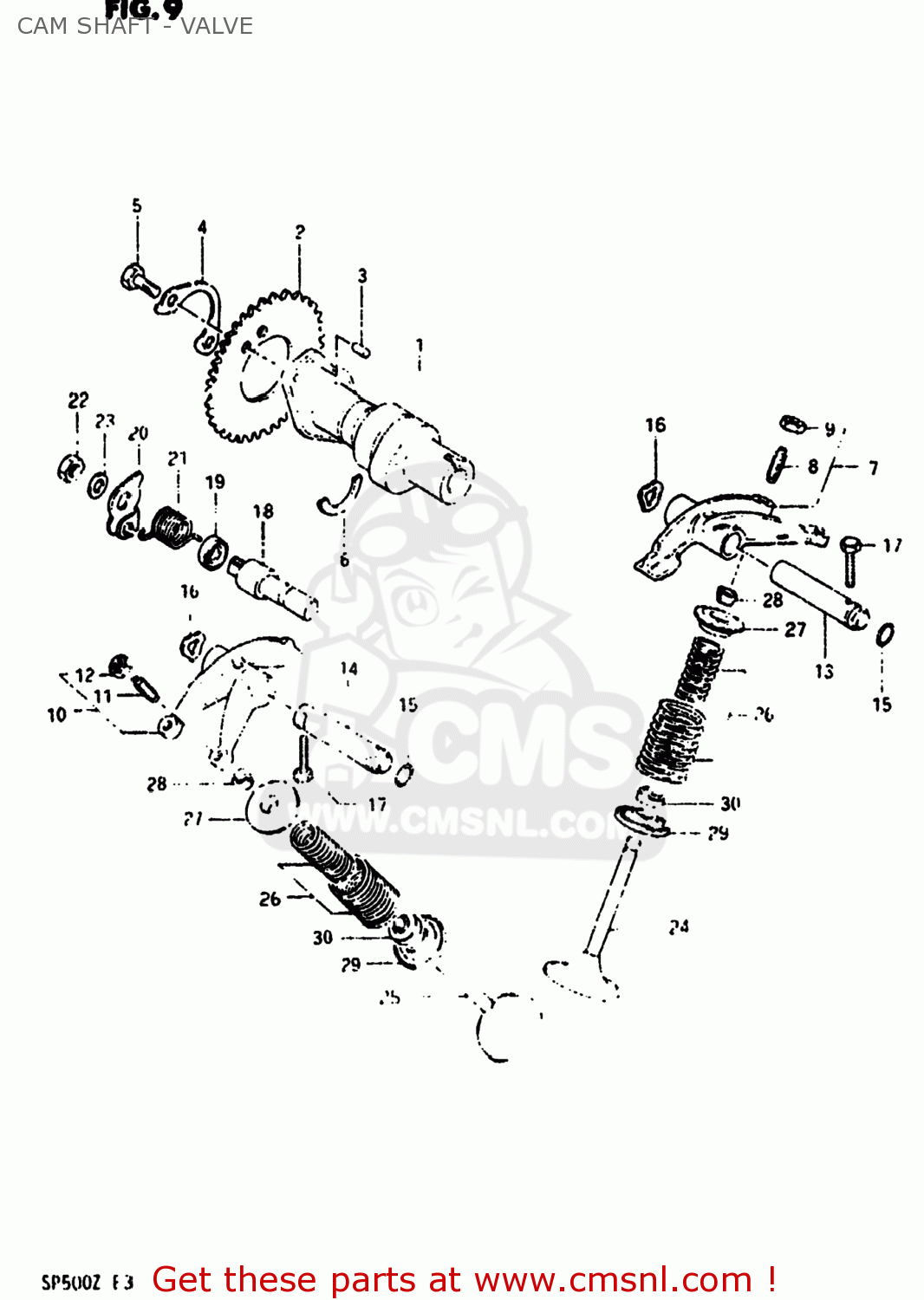

Cam shaft - valve diagram SP500 1982 (Z) USA (E03)
CAM SHAFT - VALVE SP500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271137400
ref: 1
CAMSHAFT
€ 243.00
2
1274137400
ref: 2
SPROCKET,CAMSHAFT(NT:42)
€ 34.50
3
0621105103
ref: 3
04221-05109
PIN
€ 1.50
4
1274744000
ref: 4
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
5
0911106027
ref: 5
BOLT(6X12.5)
€ 1.50
6
0939025003
ref: 6
C RING
€ 2.50
7
1284037400
ref: 7
12840-07F00
ARM,VALVE ROCKER
€ 80.50
8
1284232410
ref: 8
12842-32411
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10
1285037400
ref: 10
12850-37401
ARM,VALVE ROCKER,EXHAUST
€ 123.00
11
1284232410
ref: 11
12842-32411
SCREW,TAPPET ADJUSTING
€ 5.00
12
1284332400
ref: 12
NUT,ADJUSTING SCREW
€ 2.50
13
1286137400
ref: 13
12861-37401
SHAFT,VALVE ROCKER ARM
€ 16.00
14
1287137400
ref: 14
12871-37401
SHAFT,VALVE ROCKER ARM
€ 18.50
15
0928009004
ref: 15
09280-09005
O-RING
€ 4.00
16
0916412018
ref: 16
WASHER
€ 1.50
17
0910006009
ref: 17
BOLT(6X23)
€ 1.50
18
1294137100
ref: 18
12941-37103
SHAFT,DECOMPRESSION
€ 63.00
19
0928410005
ref: 19
09282-10014
OIL SEAL
€ 6.50
20
1294237100
ref: 20
12942-37101
LEVER,DECOMPRESSION SHAFT
€ 4.50
21
0944817014
ref: 21
SPRING
€ 21.50
22
0831022088
ref: 22
08310-00087
NUT 8MM
€ 2.00
23
0832211088
ref: 23
08322-01087
WASHER
€ 2.00
24
1291137400
ref: 24
VALVE,INTAKE
€ 56.50
25
1291237400
ref: 25
VALVE,EXHAUST
€ 61.00
26
1290037810
ref: 26
12920-37402
SHIM,TAPPET
€ 12.50
27
1293145000
ref: 27
12931-45001
RETAINER,VALVE SPRING
€ 6.00
28
1293245010
ref: 28
COTTER VALVE
€ 2.50
29
1293337400
ref: 29
SEAT,VALVE SPRING
€ 3.50
30
0928907002
ref: 30
SEAL,OIL(7X14.4X9)
€ 3.00
