CRANKCASE COVER
SP500 1982 (Z) USA (E03)

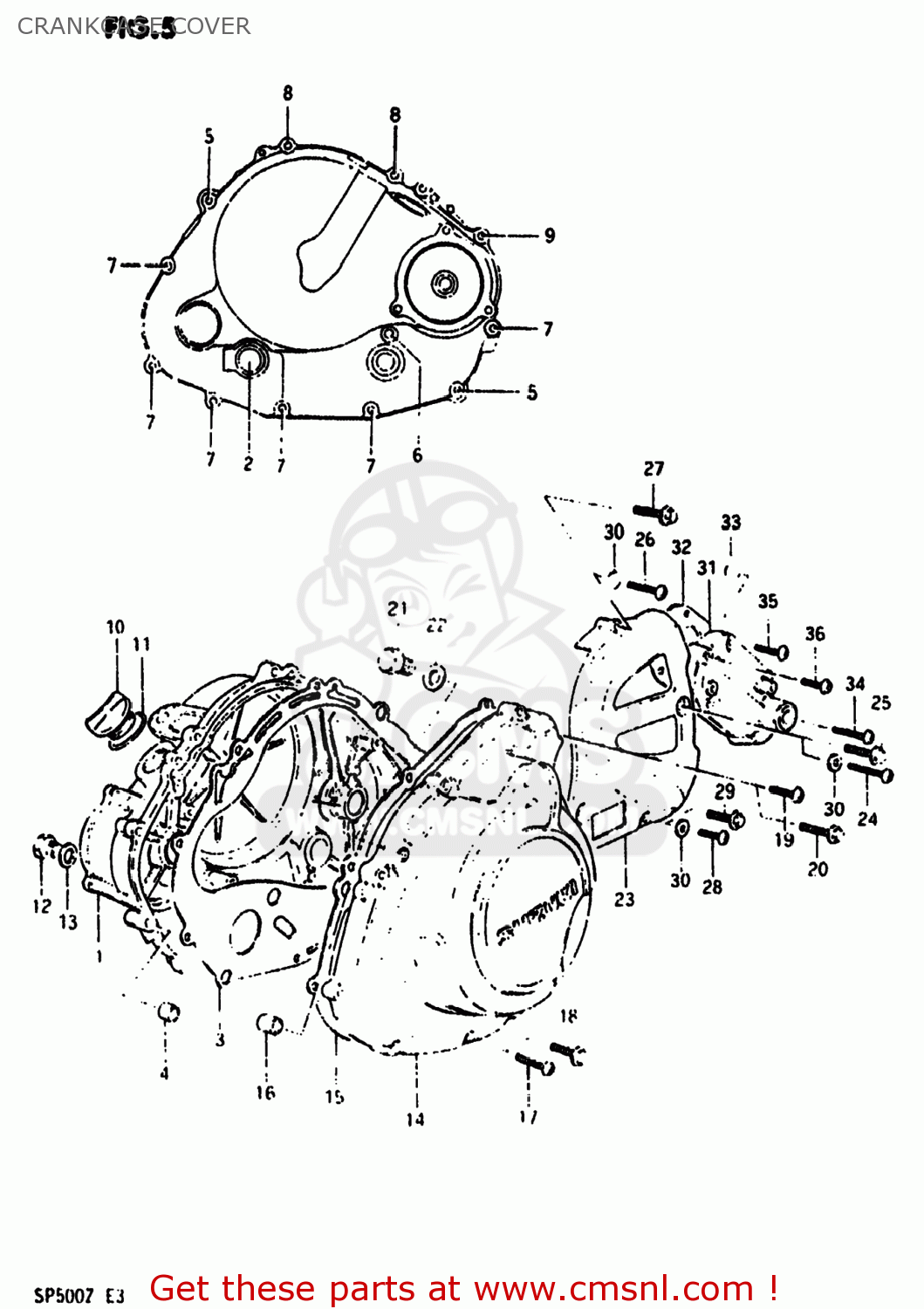

Crankcase cover diagram SP500 1982 (Z) USA (E03)
CRANKCASE COVER SP500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134037400
ref: 1-1
11340-37401
COVER,CLUTCH
€ 226.50
1-2
1134037401
ref: 1-2
COVER,CLUTCH
€ 226.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148237400
ref: 3
11482-37400-H17
GASKET,CLUTCH COVER (MCA)
€ 20.50
4
0920613001
ref: 4
04211-13189
PIN
€ 2.50
5-1
0211206508
ref: 5-1
02112-06507
SCREW
€ 2.50
5-2
0154706508
ref: 5-2
01547-06507
BOLT (6X50)
€ 2.50
6-1
0211206408
ref: 6-1
02112-06407
SCREW
€ 2.00
6-2
0154706408
ref: 6-2
01547-06407
BOLT (6X40)
€ 2.50
7-1
0211206358
ref: 7-1
02112-06357
SCREW (6X35)
€ 2.50
7-2
0154706358
ref: 7-2
01547-06357
BOLT (6X35)
€ 2.50
8-1
0211206258
ref: 8-1
02112-06257
SCREW
€ 2.00
8-2
0154706258
ref: 8-2
01547-06257
BOLT
€ 2.50
9
0912506035
ref: 9
SCREW(6X25)
€ 1.50
10
0925930001
ref: 10
09200-30810
CAP
€ 8.50
11
0928032005
ref: 11
O RING(D:2.2,ID:32)
€ 2.00
12
0924714012
ref: 12
09247-14026
PLUG (14X12)
€ 3.50
13
0916814004
ref: 13
GASKET(14X19.2X2) (NAS)
€ 2.50
14-1
1135137400
ref: 14-1
11351-37402
COVER
€ 113.00
14-2
1135137401
ref: 14-2
11351-37402
COVER
€ 113.00
14-3
1135137402
ref: 14-3
COVER,MAGNETO
€ 113.00
15
1148337400
ref: 15
11483-12D10
GASKET,MAGNETO COVER (MCA)
€ 41.00
16
0920613001
ref: 16
04211-13189
PIN
€ 2.50
17
0211206308
ref: 17
02112-06307
SCREW 6X30
€ 2.50
18
0154706308
ref: 18
01547-06307
BOLT (6X30)
€ 2.50
19
0211206258
ref: 19
02112-06257
SCREW
€ 2.00
20
0154706258
ref: 20
01547-06257
BOLT
€ 2.50
21
0924712103
ref: 21
PLUG(12X9)
€ 3.50
22
0916812003
ref: 22
GASKET(12X16X2) (NAS)
€ 2.00
23-1
1130137400
ref: 23-1
COVER, ENGINE SPROCKET FOR SCREW
€ 0.00
23-2
1136137401
ref: 23-2
COVER,ENGINE SPROCKET
€ 54.00
24
0211206458
ref: 24
02112-06457
SCREW (6X45)
€ 2.00
25
0154706458
ref: 25
01547-06457
BOLT
€ 2.50
26
0211206308
ref: 26
02112-06307
SCREW 6X30
€ 2.50
27
0154706308
ref: 27
01547-06307
BOLT (6X30)
€ 2.50
28
0211206208
ref: 28
02112-06207
SCREW
€ 2.00
29
0154706208
ref: 29
01547-06207
BOLT (6X20)
€ 2.50
30
0832221068
ref: 30
08322-01067
WASHER
€ 2.00
31
1137137400
ref: 31
COVER,GEAR SHIFT
€ 37.00
32
1148537400
ref: 32
11485-37400-H17
CUSHION,ENGINE SPROCKET
€ 9.00
33
0421109129
ref: 33
PIN
€ 2.00
34
0211206358
ref: 34
02112-06357
SCREW (6X35)
€ 2.50
35
0211206308
ref: 35
02112-06307
SCREW 6X30
€ 2.50
36
0211206208
ref: 36
02112-06207
SCREW
€ 2.00
