FRONT FORK (MODEL X)
SP500 1982 (Z) USA (E03)

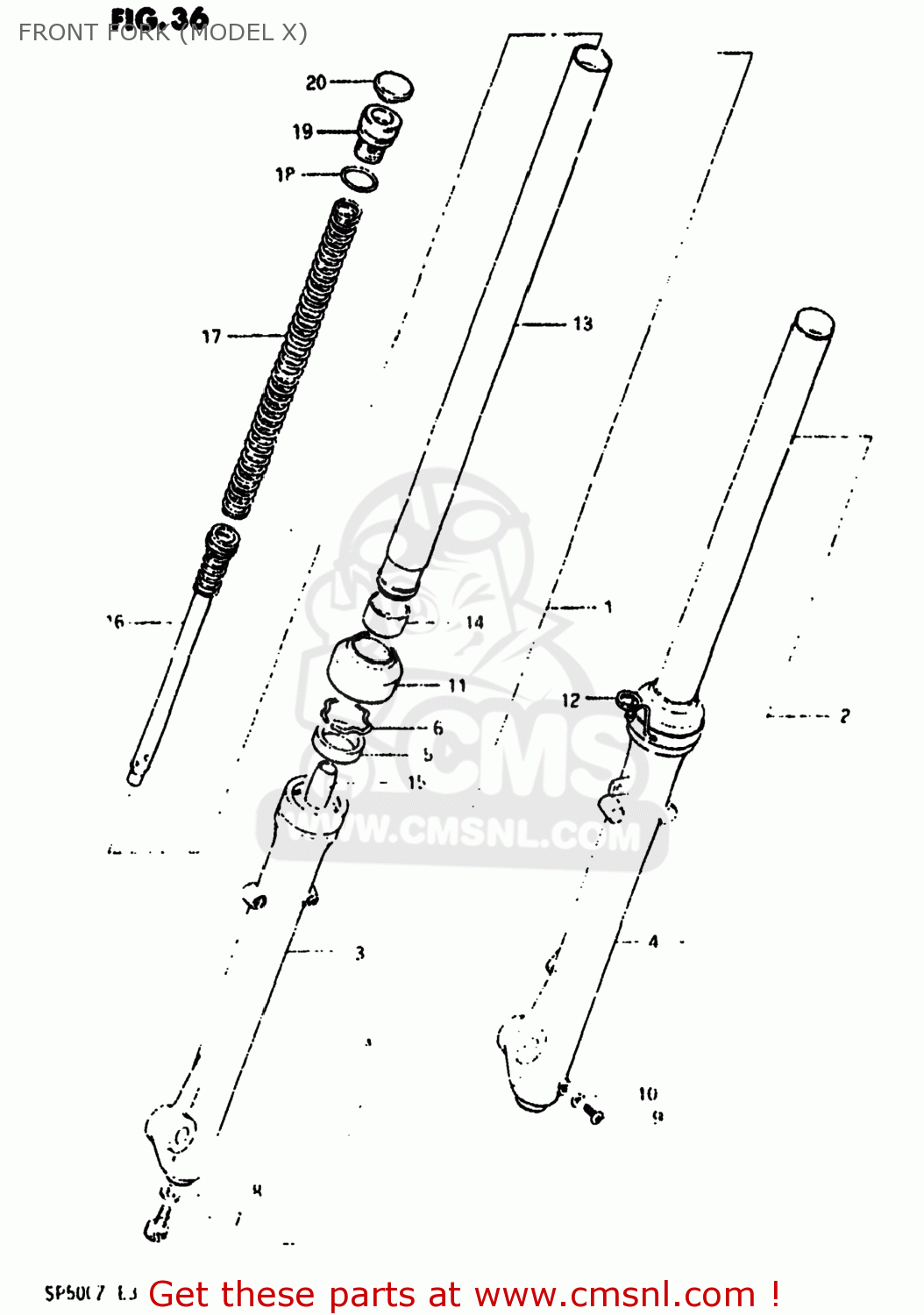

Front fork (model x) diagram SP500 1982 (Z) USA (E03)
FRONT FORK (MODEL X) SP500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110337410
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 157.00
2
5110437410
ref: 2
DAMPER ASSEMBLY,LEFT
€ 157.00
3
5113037410
ref: 3
TUBE,OUTER,RIGHT
€ 0.00
4
5114037410
ref: 4
TUBE,OUTER,LEFT
€ 0.00
5
5115341211
ref: 5
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
6
5115630400
ref: 6
5115630400
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
€ 3.50
8
5114841310
ref: 8
GASKET (NAS)
€ 2.50
9
0211204088
ref: 9
02112-04087
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
5117341110
ref: 11
SEAL,DUST
€ 10.50
12
5157337200
ref: 12
BAND,FRONT FORK COVER
€ 0.00
13
5111037410
ref: 13
51110-37420
TUBE,FORK,INNER
€ 193.00
14
5112137410
ref: 14
PISTON
€ 14.00
15
5119541210
ref: 15
51195-49071
PIECE,OIL LOCK
€ 12.00
16
5114630400
ref: 16
CYLINDER,FRONT FORK
€ 0.00
17
5117137410
ref: 17
SPRING,FRONT FORK
€ 16.00
18
5111716310
ref: 18
O RING
€ 4.50
19
5135130520
ref: 19
CAP,FORK INNER TUBE
€ 9.00
20
5118932400
ref: 20
51189-30520
CAP,FRONT FORK
€ 11.50
