SP500 1982 (Z) USA (E03)

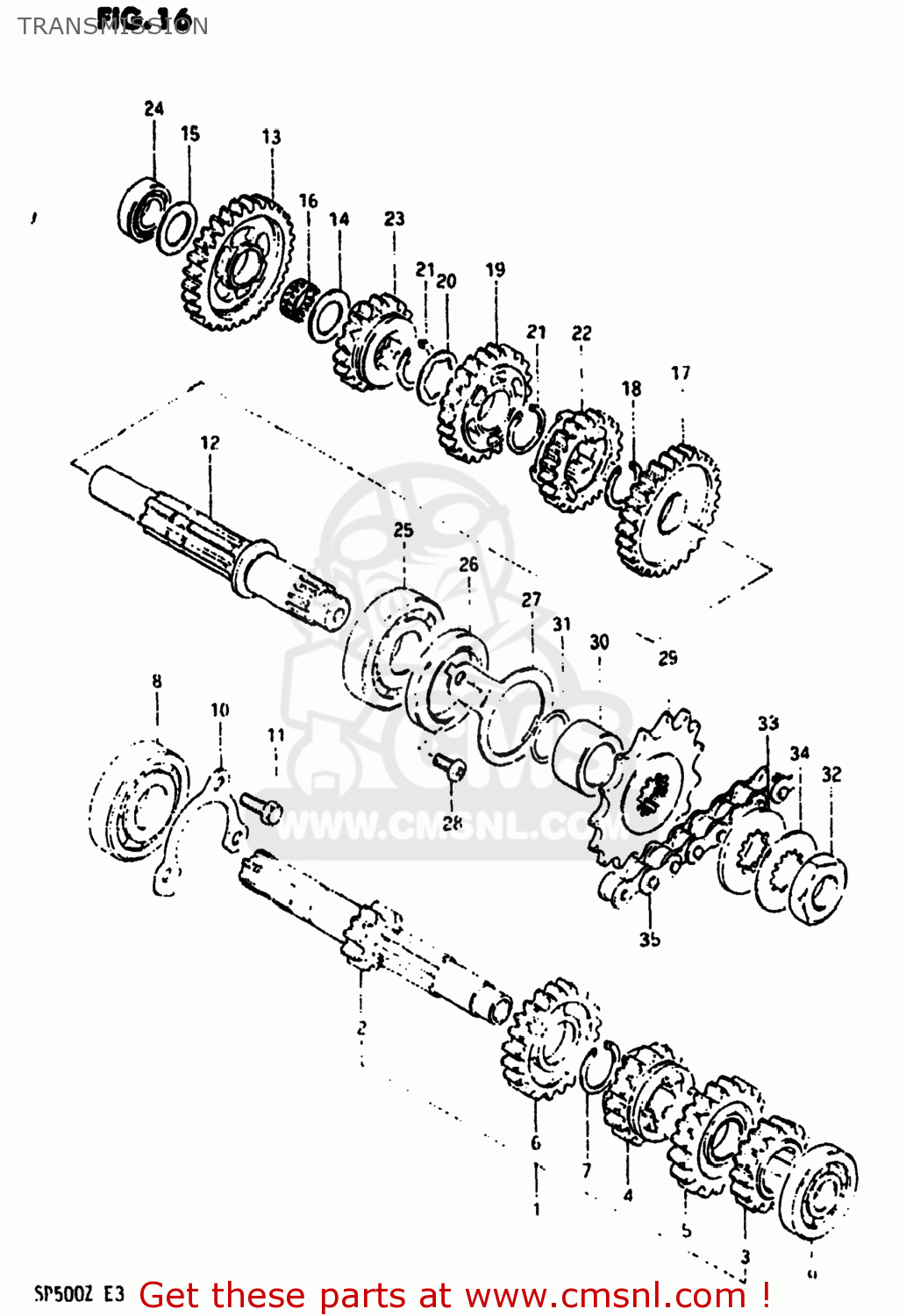

Transmission diagram SP500 1982 (Z) USA (E03)
TRANSMISSION SP500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412037400
ref: 1
SHAFT,COUNTER
€ 0.00
2
2412137400
ref: 2
SHAFT,COUNTER
€ 0.00
3
2422137400
ref: 3
GEAR,SECOND DRIVE
€ 50.50
4
2423137400
ref: 4
GEAR,THIRD DRIVE
€ 64.00
5
2424037400
ref: 5
GEAR,FOURTH DRIVE
€ 50.50
6
2425037400
ref: 6
GEAR,FIFTH DRIVE
€ 64.00
7
0938025010
ref: 7
CIRCLIP
€ 3.00
8
0926222014
ref: 8
09262-22028
BEARING
€ 59.50
9
0926217018
ref: 9
09262-17027
BEARING
€ 25.00
10
2474137400
ref: 10
PLATE,COUNTERSHAFT BEARING
€ 0.00
11
0110708168
ref: 11
01500-0816B
BOLT
€ 2.00
12
2413137401
ref: 12
SHAFT,DRIVE
€ 0.00
13
2431137400
ref: 13
GEAR,FIRST DRIVEN
€ 64.00
14
0821120301
ref: 14
WASHER
€ 3.00
15
0821120303
ref: 15
WASHER
€ 2.50
16
0926320018
ref: 16
BEARING(20X24X10).8
€ 14.00
17
2432037400
ref: 17
GEAR,SECOND DRIVEN
€ 61.00
18
0938025010
ref: 18
CIRCLIP
€ 3.00
19
2433037400
ref: 19
GEAR,THIRD DRIVEN
€ 74.50
20
0916725012
ref: 20
WASHER,LOCK
€ 3.50
21
0938025010
ref: 21
CIRCLIP
€ 3.00
22
2434137400
ref: 22
GEAR,FOURTH DRIVEN
€ 74.50
23
2435137400
ref: 23
GEAR,FIFTH DRIVEN
€ 64.00
24
0926220059
ref: 24
BEARING(20X42X12)
€ 14.50
25
0926222006
ref: 25
09262-22025
BEARING
€ 63.50
26
0928332020
ref: 26
SEAL,OIL(32X42X7)
€ 9.00
27
2475137400
ref: 27
PLATE,DRIVESHAFT OIL
€ 0.00
28
0110706128
ref: 28
01500-06127
BOLT
€ 2.00
29
2751132401
ref: 29
SPROCKET,ENGINE(NT:15)
€ 19.00
30
0918022005
ref: 30
SPACER (22X32X13.4)
€ 4.50
31
0928022003
ref: 31
O RING(D:1.7,ID:22)
€ 2.50
32
0914018006
ref: 32
NUT
€ 4.50
33
2751937400
ref: 33
SPACER,ENGINE SPROCKET
€ 9.50
34
0916722012
ref: 34
WASHER,LOCK
€ 1.50
35
2760037460
ref: 35
27600-06C20-114
CHAIN ASSEMBLY,DRIVE
€ 125.00
