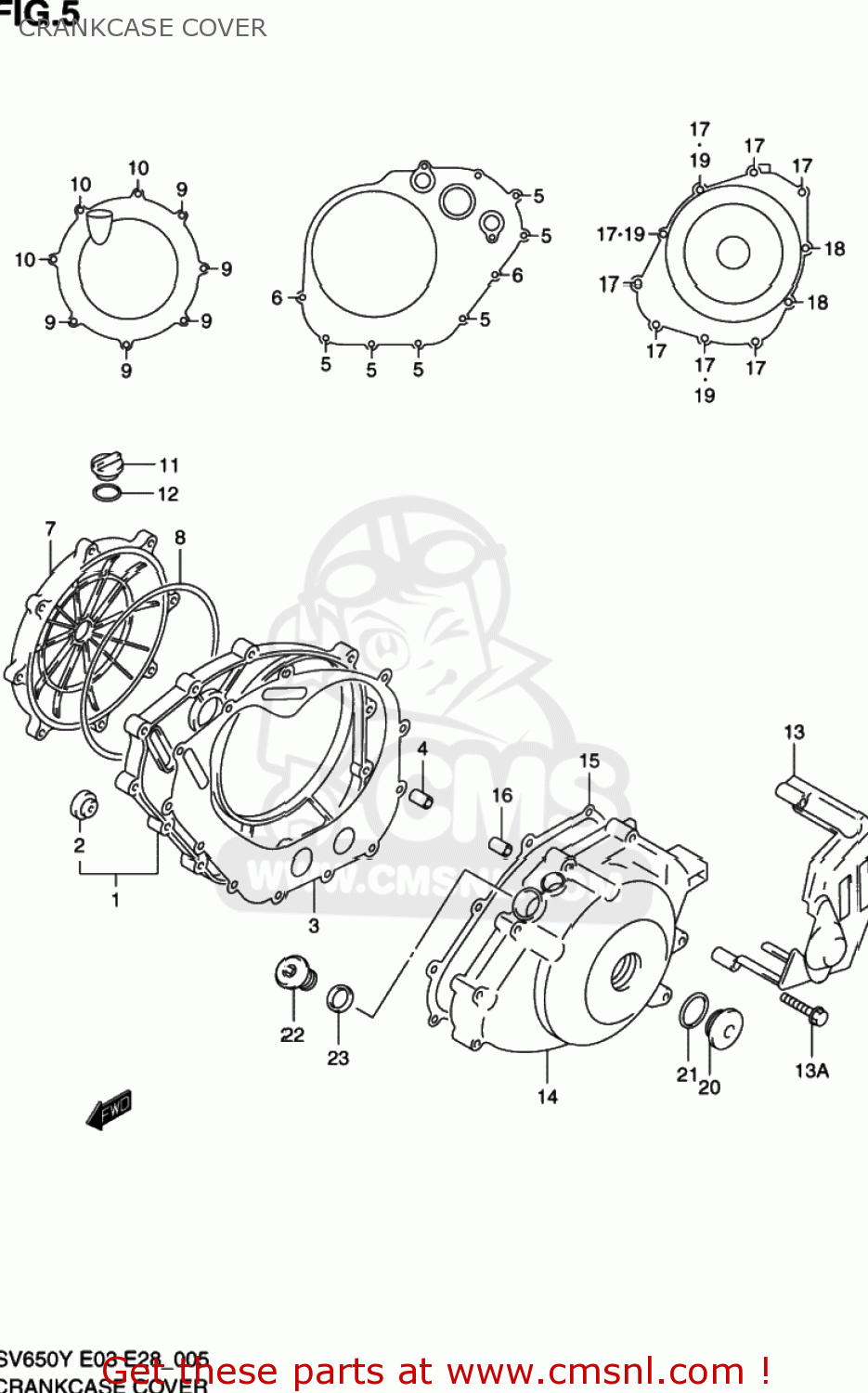

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134019F00
ref: 1-1

COVER,CLUTCH INNER

€ 750.00

1-2

1134019F10
ref: 1-2

COVER,CLUTCH INNER

€ 207.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148219F00
ref: 3

GASKET,CLUTCH COVER INNER (NAS)

€ 20.00

4

0421109149
ref: 4

PIN

€ 2.00

5

0910306204
ref: 5

BOLT(6X30)

€ 3.50

6

0910306205
ref: 6

BOLT(6X40)

€ 4.50

7-1

1137019F00
ref: 7-1

COVER,CLUTCH OUTER

€ 103.50

7-2

1137019F10
ref: 7-2

COVER,CLUTCH OUTER

€ 123.00

8-1

1148419F00
ref: 8-1
11484-19F01

O-RING,CLUTCH COVER,OUTER

€ 23.50

8-2

1148419F01
ref: 8-2

O RING CLUTCH COVER OUTER

€ 23.50

9

0910306180
ref: 9

BOLT(6X25)

€ 5.00

10

0910306207
ref: 10

BOLT(6X55)

€ 4.00

11

0925920008
ref: 11
09259-20008-XC0

PLUG

€ 6.50

12

0928017003
ref: 12

O RING(D:3.1,ID:16.8)

€ 2.00

13A

0154706457
ref: 13A

BOLT

€ 2.50

13-1

1136119F00
ref: 13-1

COVER,ENGINE SPROCKET

€ 45.00

13-2

1136119F10
ref: 13-2

COVER,ENGINE SPROCKET

€ 57.00

14-1

1135119F00
ref: 14-1

COVER,MAGNETO

€ 199.50

14-2

1135119F10
ref: 14-2

COVER,MAGNETO

€ 223.50

15

1148319F00
ref: 15

GASKET,MAGNETO COVER (NAS)

€ 11.50

16

0421109149
ref: 16

PIN

€ 2.00

17

0154706357
ref: 17

BOLT

€ 2.50

18

0154706657
ref: 18

BOLT

€ 2.00

19-1

0916806023
ref: 19-1

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19-2

0916806023
ref: 19-2

GASKET(5.8X13X1.2) (NAS)

€ 2.00

20

0925926012
ref: 20

PLUG

€ 7.50

21

0928022008
ref: 21

O RING(D:3.1,ID:22.7)

€ 2.50

22

0924816012
ref: 22

PLUG,16X8

€ 4.50

23

0916816002
ref: 23

GASKET(16X22X2) (NAS)

€ 2.00
