EVAPO SISTEM (E33)
SV650 1999 (X) USA (E03)

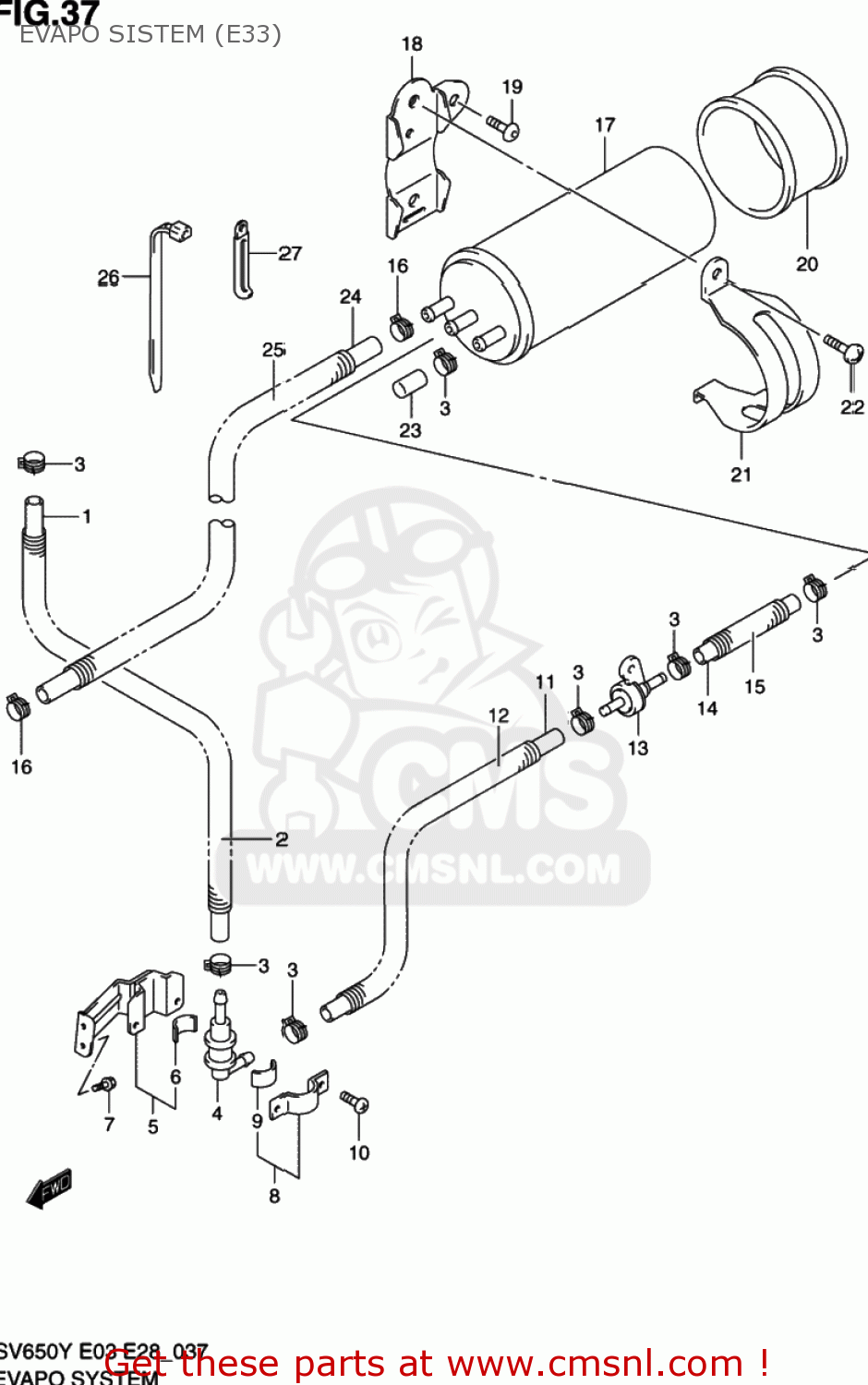

Evapo sistem (e33) diagram SV650 1999 (X) USA (E03)
EVAPO SISTEM (E33) SV650 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4443519F00
ref: 1
44400-19810
HOSE,TANK & BREATHER VALVE
€ 7.00
2
0935114152600
ref: 2
PROTECTOR(14.5X15.5X600)
€ 9.00
3
0940111413
ref: 3
CLIP
€ 2.50
4
4424017C00
ref: 4
VALVE,FUEL TANK BREATHER
€ 40.00
5
4489019F00
ref: 5
PLATE,BREATHER VALVE
€ 0.00
6
4489424A00
ref: 6
CUSHION
€ 1.50
7
0155006123
ref: 7
01550-0612A
BOLT
€ 2.50
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
€ 1.50
10
0214204083
ref: 10
02142-0408B
SCREW
€ 1.50
11
4443419F00
ref: 11
44434-29F00
HOSE,VALVE & CANISTER
€ 0.00
12
0935114152600
ref: 12
PROTECTOR(14.5X15.5X600)
€ 9.00
13
4424024F00
ref: 13
VALVE,2 WAY & BREATHER VALVE
€ 44.50
14
0935554116600
ref: 14
HOSE(5.4X11.4X600)
€ 12.00
15
0935114152600
ref: 15
PROTECTOR(14.5X15.5X600)
€ 9.00
16
0940112404
ref: 16
CLIP
€ 2.50
17
1721026E00
ref: 17
CANISTER ASSY,CHARCOAL
€ 261.50
18
4488019F00
ref: 18
BRACKET,CANISTER
€ 0.00
19
0913906067
ref: 19
SCREW(6X16)
€ 3.00
20
4488326E00
ref: 20
CUSHION,CANISTER
€ 9.00
21
4488219F00
ref: 21
HOLDER,CANISTER
€ 0.00
22
0214206123
ref: 22
02142-0612A
SCREW 6X12
€ 2.00
23
0925107003
ref: 23
CAP,OD:11.5
€ 2.00
24
0935954112760
ref: 24
HOSE(5.4X11.4X760)
€ 28.00
25
093511415200B
ref: 25
HOSE
€ 0.00
26
0940718402
ref: 26
CLAMP(L:165)
€ 2.50
27
0940406434
ref: 27
CLAMP(L:80 T:1.0)
€ 3.00
