HANDLE BAR (SV650SX/SY/SK1/SK2)
SV650 1999 (X) USA (E03)

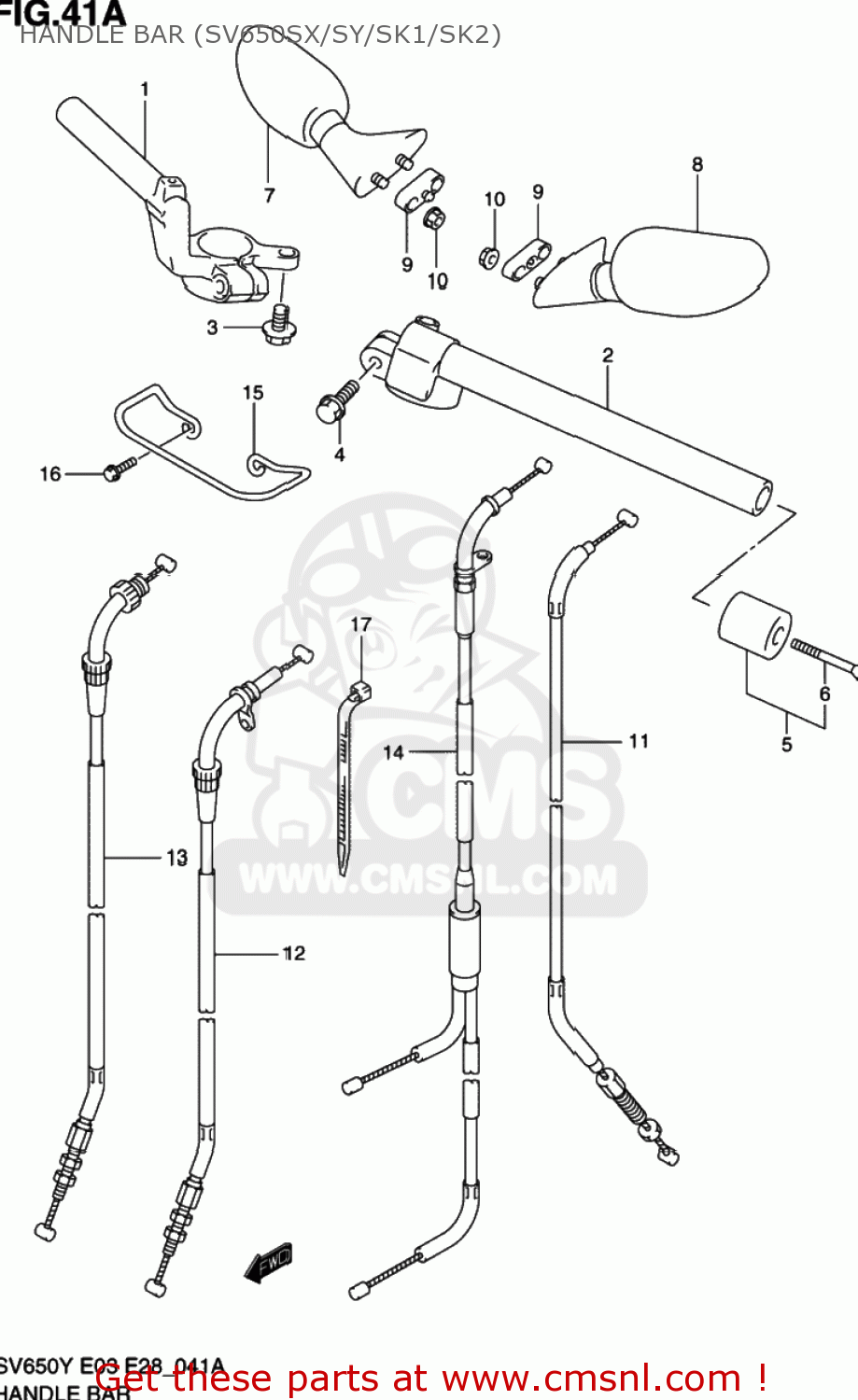

Handle bar (sv650sx/sy/sk1/sk2) diagram SV650 1999 (X) USA (E03)
HANDLE BAR (SV650SX/SY/SK1/SK2) SV650 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611119F00
ref: 1
HANDLEBAR,R
€ 199.00
2
5615119F00
ref: 2
HANDLEBAR,L
€ 187.50
3
0155006203
ref: 3
01550-0620A
BOLT
€ 2.50
4
0910308269
ref: 4
BOLT(8X30)
€ 2.50
5
5620004821
ref: 5
BALANCER SET,HANDLEBAR
€ 42.50
6
0212206603
ref: 6
02122-0660B
SCREW
€ 3.00
7
5650019F00
ref: 7
MIRROR ASSY,RR VIEW,R
€ 99.50
8
5660019F00
ref: 8
MIRROR ASSY,RR VIEW,L
€ 99.50
9
9457619F00
ref: 9
CUSHION,RR VIEW MIRRORR
€ 8.50
10
5661917C00
ref: 10
NUT,RR VIEW MIRROR
€ 8.00
11
5820019F00
ref: 11
CABLE ASSY,CLUTCH
€ 27.00
12
5830020F00
ref: 12
CABLE ASSY,THROTTLE NO.1
€ 37.50
13
5830020F10
ref: 13
CABLE ASSY,THROTTLE NO.2
€ 37.00
14
5841019F00
ref: 14
CABLE,STARTER
€ 56.50
15-1
5862119F00
ref: 15-1
GUIDE,CABLE
€ 8.00
15-2
5862119F10
ref: 15-2
GUIDE,CABLE
€ 9.50
15-3
5862119F20
ref: 15-3
GUIDE,CABLE
€ 10.00
16
0155006123
ref: 16
01550-0612A
BOLT
€ 2.50
17
0940714407
ref: 17
CLAMP(L:145)
€ 4.00
