FUEL COCK

SV650 1999 (X) USA (E03)

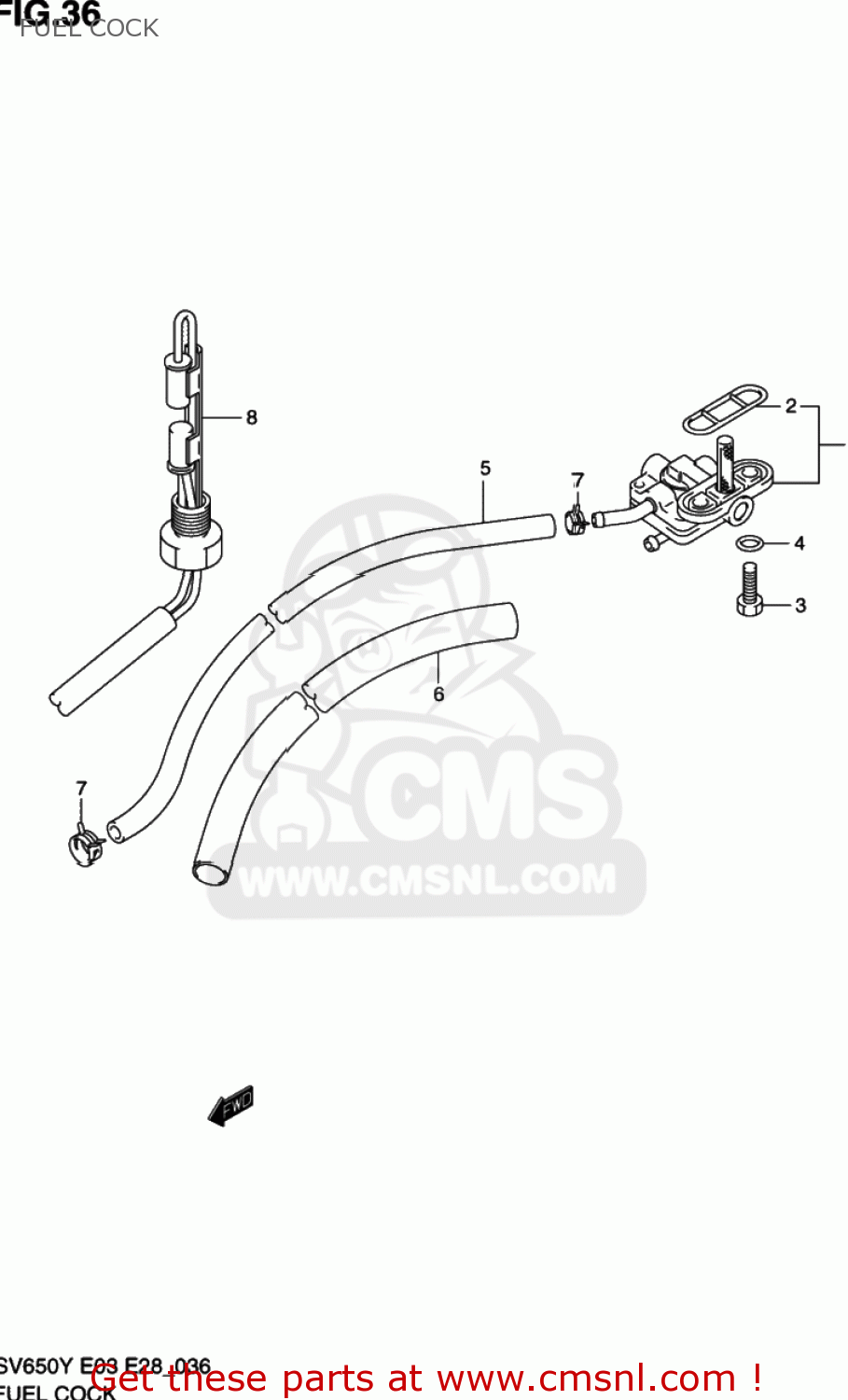

Fuel cock diagram SV650 1999 (X) USA (E03)

FUEL COCK SV650 1999 (X) USA (E03)
FUEL COCK SV650 1999 (X) USA (E03)
FUEL COCK SV650 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4430019F00
ref: 1
COCK ASSEMBLY,FUEL
€ 123.50
2
4435133E00
ref: 2
O RING,JOINT
4435133E00
€ 5.50
3-1
0912806057
ref: 3-1
BOLT(6X20)
0912806057
€ 2.00
3-2
0912806006
ref: 3-2
09128-06057
BOLT(6X20)
0912806006
€ 2.00
4
0916806026
ref: 4
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
5
0935550105600
ref: 5
44421-13ER0
HOSE(5X10X600)
€ 7.50
6
0935114152600
ref: 6
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
7
0940109403
ref: 7
CLIP
0940109403
€ 2.50
8-1
3481019F11
ref: 8-1
GAUGE ASSY,FUEL LEVEL
3481019F11
€ 145.50
8-2
3481019F20
ref: 8-2
GAUGE ASSY,FUEL LEVEL
€ 134.50
