REAR SWINGING ARM

SV650 1999 (X) USA (E03)

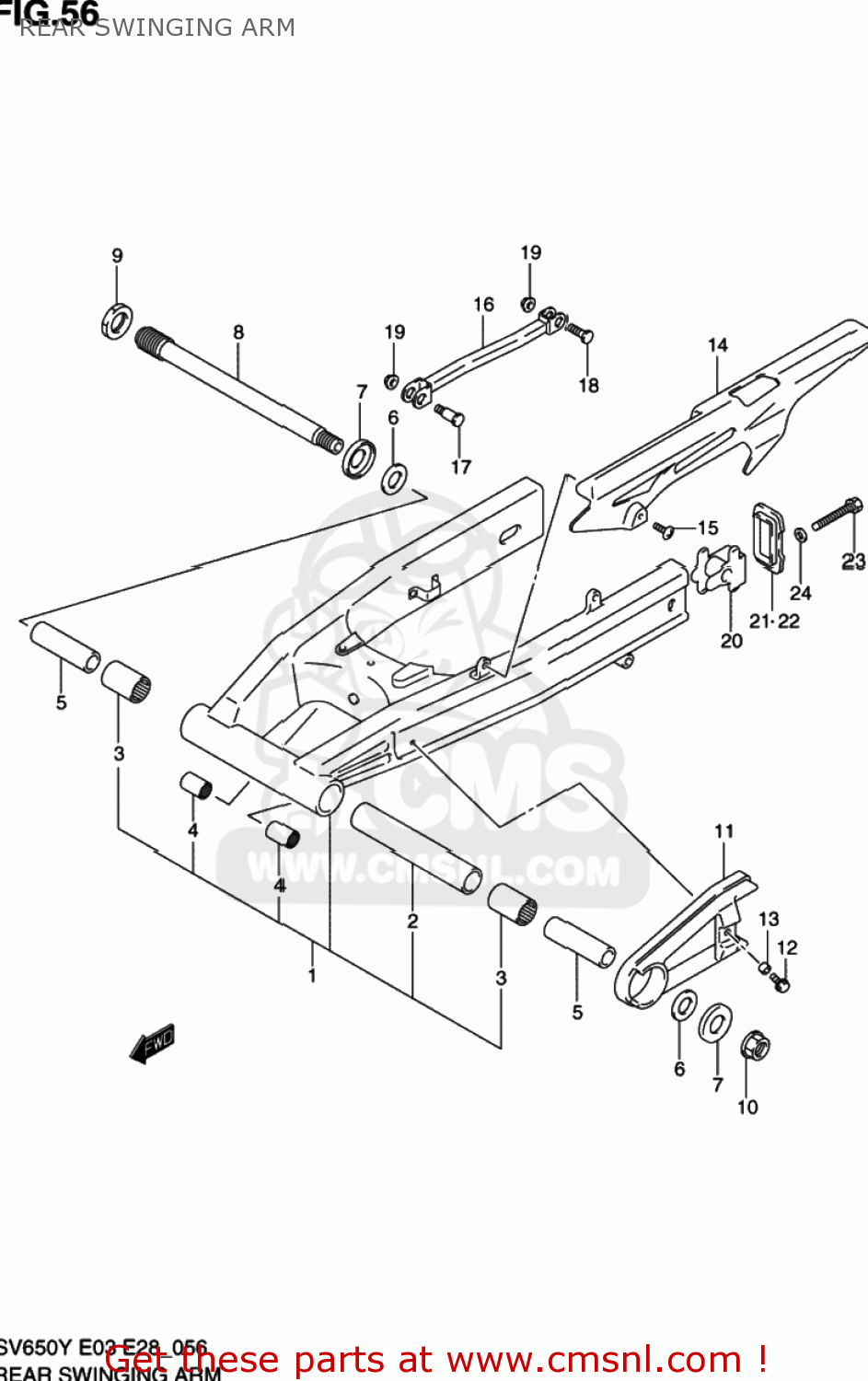

Rear swinging arm diagram SV650 1999 (X) USA (E03)

REAR SWINGING ARM SV650 1999 (X) USA (E03)

REAR SWINGING ARM SV650 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6100019F11
ref: 1-1

SWINGINGARM ASSY,RR

€ 1,084.00

1-2

6100019F01
ref: 1-2

SWINGINGARM ASSY,RR

€ 1,084.00

2

6128119F00
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 16.00

3

0926325024
ref: 3

BEARING(25X33X30)

€ 31.50

4

0926320071
ref: 4

BEARING(20X27X23.5)

€ 21.50

5

6125121E00
ref: 5

SPACER,RR SWGARM PIVOT

€ 8.50

6

0821120381
ref: 6

WASHER

€ 3.00

7

6126217C00
ref: 7

DUST SEAL,RR SWGARM PIVOT

€ 8.00

8

6121119F00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 82.00

9

6121419F00
ref: 9
61214-19F10

NUT,REAR SWING ARM PIVOT BOLT

€ 8.50

10

0831931188
ref: 10
08319-3118A

NUT ,18MM

€ 17.50

11

6127319F00
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 33.50

12

0911606152
ref: 12

BOLT(6X20)

€ 2.00

13

0918006283
ref: 13

SPACER(6.5X10X7)

€ 2.00

14

6131019F00
ref: 14

CASE,CHAIN

€ 58.50

15

0913906083
ref: 15

SCREW(6X16)

€ 2.50

16

6431019F00
ref: 16

TORQUELINK,RR

€ 35.00

17

0911110051
ref: 17

BOLT(10X39)

€ 8.50

18

0910010187
ref: 18

BOLT(10X34)

€ 4.50

19

0831931107
ref: 19

NUT

€ 3.00

20

6141033D00
ref: 20

ADJUSTER,CHAIN

€ 27.50

21

6142133D01
ref: 21

PLATE,CHAIN ADJUSTER GUIDE,R

€ 17.00

22

6142233D01
ref: 22

PLATE,CHAIN ADJUSTER GUIDE,L

€ 17.00

23

0910608119
ref: 23

BOLT(8X50)

€ 4.50

24

0916408015
ref: 24

WASHER

€ 3.00
